VT-HMC

The VT-HMC (Hydraulic Motion Controller) is a digital controller with integrated axis controller and programming functionality according to IEC 61131-3

  • Component series 1X
  • Digital axis controllers for one or two electro-hydraulic axes
  • Function: position, pressure, force, velocity, substitutional closed-loop control (position/force or p/Q)
  • Communication: Sercos, PROFINET RT, EtherCAT, EtherNET/IP, POWERLINK, optionally PROFIBUS, analog
  • Parameterizable via standard Ethernet
Print page

Description
Downloads

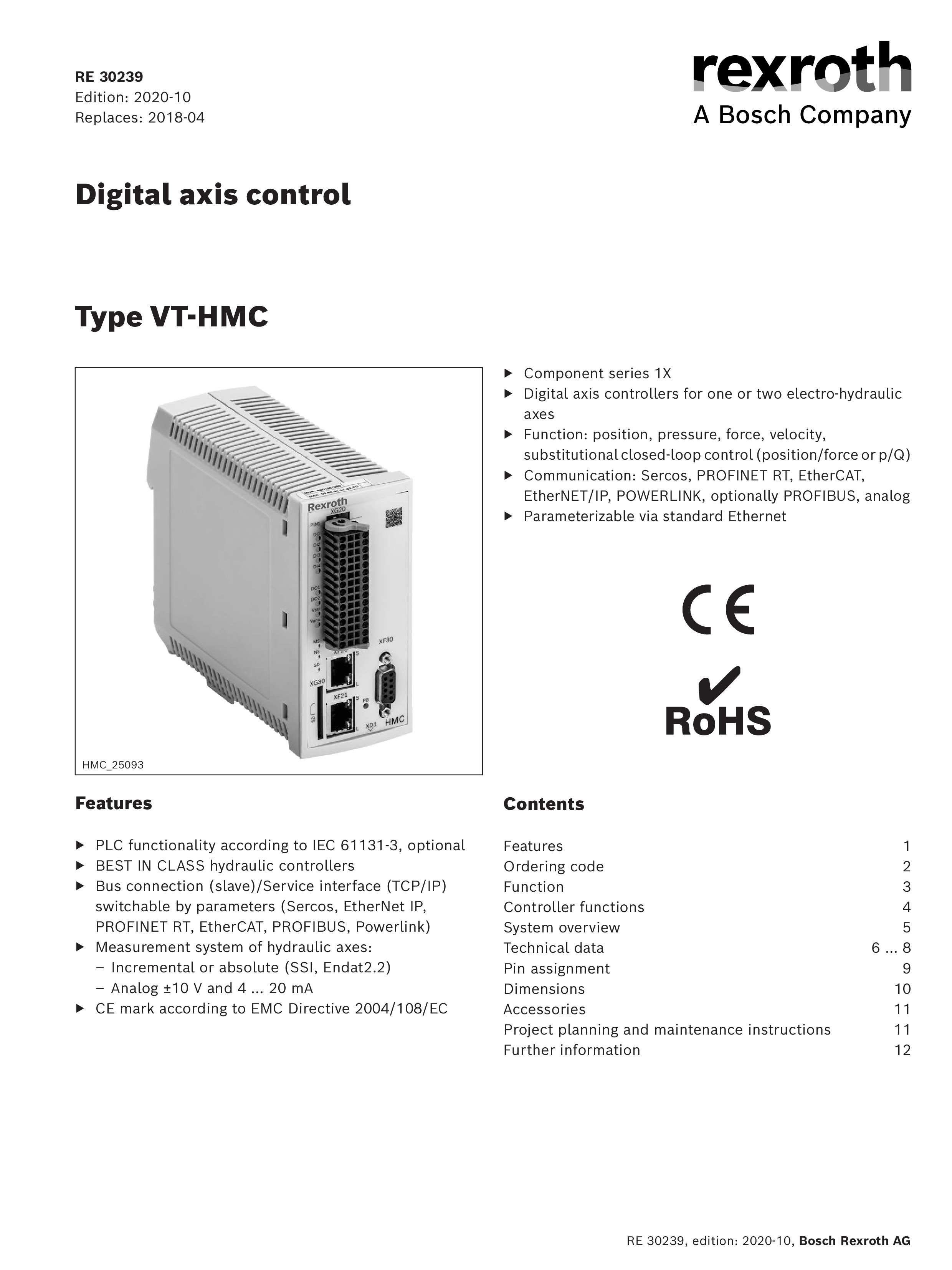

re30239_2020-10

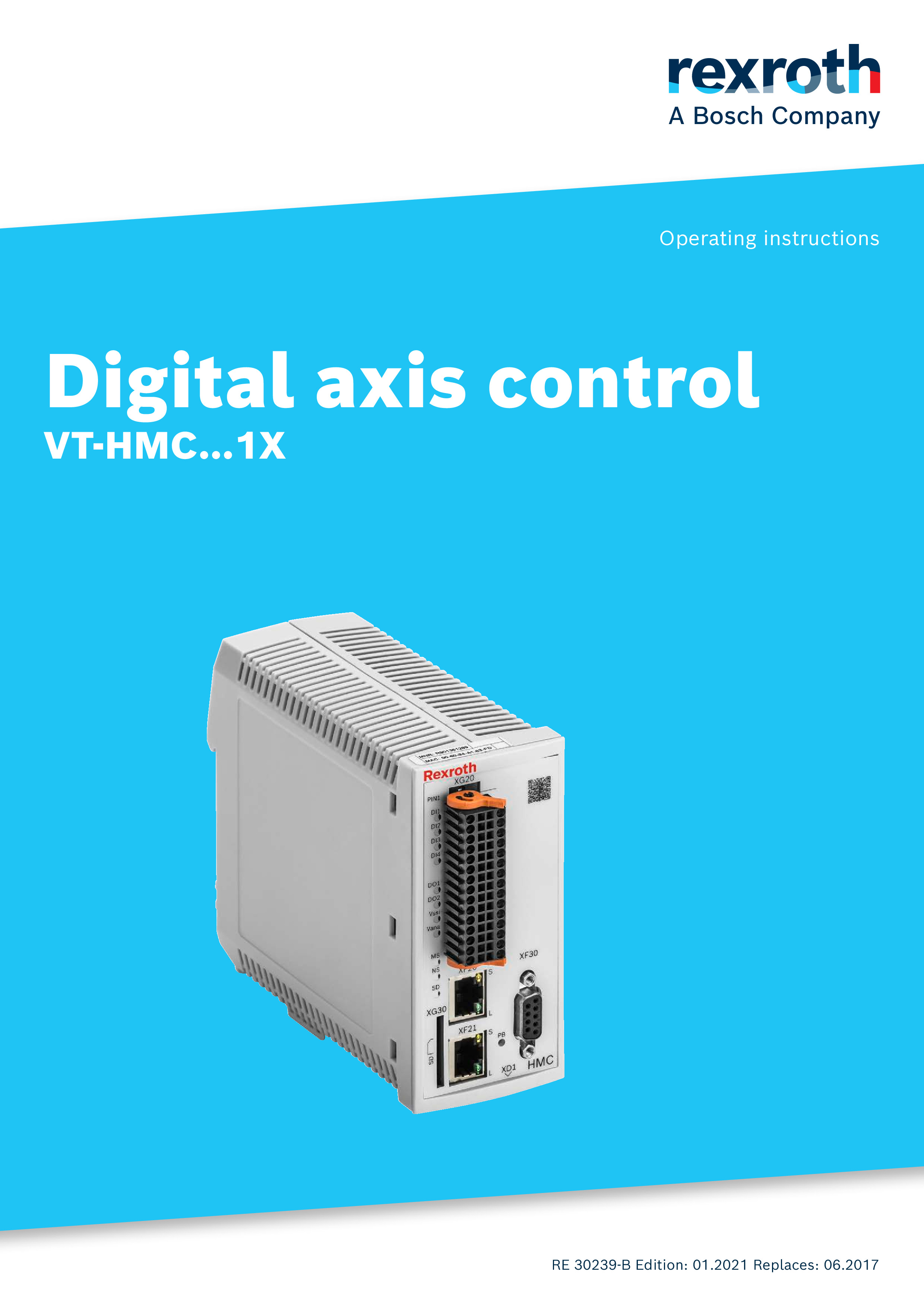

RE30239-B_2021-01

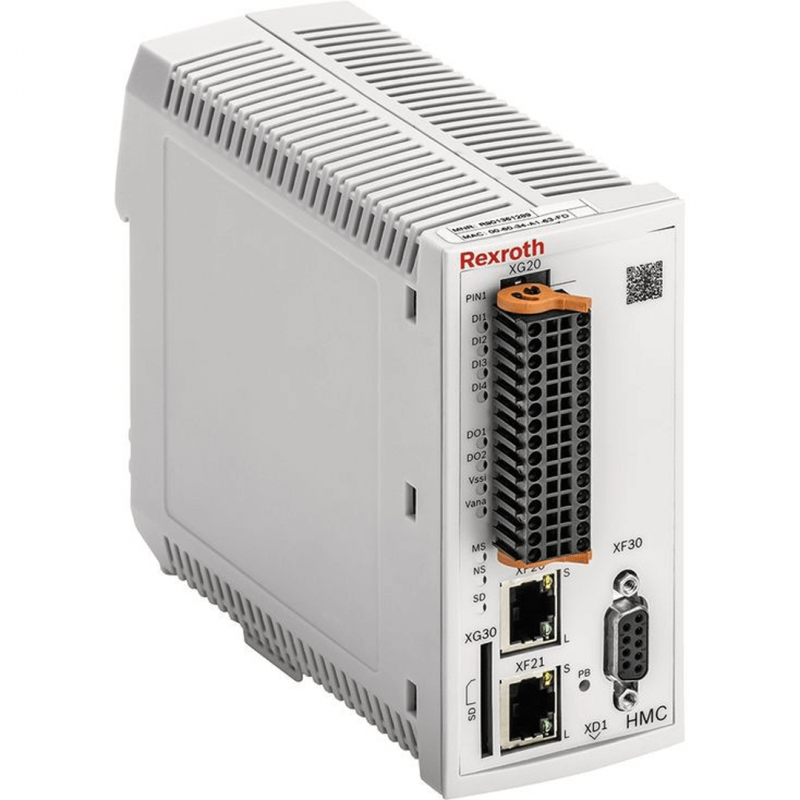

Bosch Rexroth Digital Axis Controller VT-HMC

  • Component series 1X
  • Digital axis controllers for one or two electro-hydraulic axes
  • Function: position, pressure, force, velocity, substitutional closed-loop control (position/force or p/Q)
  • Communication: Sercos, PROFINET RT, EtherCAT, EtherNET/IP, POWERLINK, optionally PROFIBUS, analog
  • Parameterizable via standard Ethernet

Features:

  • PLC functionality according to IEC 61131-3, optional
  • BEST IN CLASS hydraulic controllers
  • Bus connection (slave)/Service interface (TCP/IP) switchable by parameters (Sercos, EtherNet IP, PROFINET RT, EtherCAT, PROFIBUS, Powerlink)
  • Measurement system of hydraulic axes:
  • –Incremental or absolute (SSI, Endat2.2)
  • Analog ±10 V and 4 … 20 mA
  • CE mark according to EMC Directive 2004/108/EC
