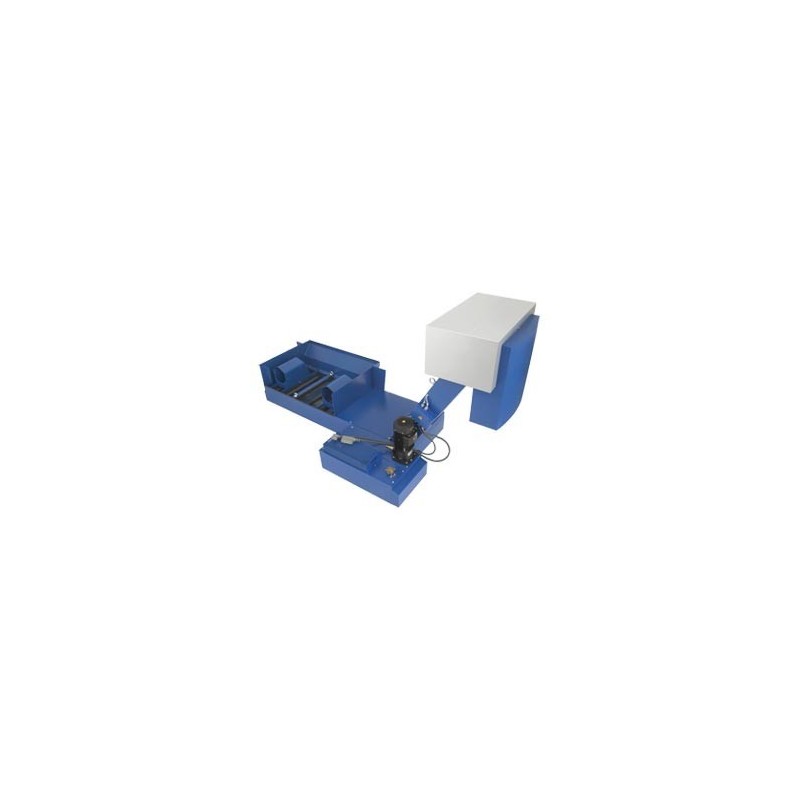

Conveyors Types IKF, IBF, ISF
For pre-extraction and pre-filtration of emulsions, solutions, waters, oils up to 75 mm2/s during the machining of steel, cast iron, light and non-ferrous metals.
- Type IKF drag-chain conveyor in standard design
- Type IBF drag-chain conveyor with overhead bottom
- Type ISF slat-band conveyor
Features:
- As single conveyor or interlinked equipment
- Modular system adapted to customer specification
- Long conveyor with separation points
- Separation points in rectangular flange design
- Plug-in or slotted screen inserts for coarse filtration
- Integrated screen filtration (slotted or punched screen) with direct machine feed possible e.g. 100 μm filtration rating
Standard construction:
- Robust edge-welded design
- With integrated lifting tank
- Drive station on bracket or laterally flange-mounted
- Motor enclosed
- Torque cut-off
- Tamper-proof removal
- Use of swarf conveyor trough as equalizing tank, thereby increasing coolant volume
- Removal slope with different lead angles
- Floor installation or as insert version for insertion in the machine bed
- Height-adjustable and/or with rollers
- Double-stranded chain with drag-chain angle or slat-band plates
If you require a product not listed or to a modified specification please contact our sales office on +44 (0) 1204 699959 who will be happy to advise.
