SYDFE1-2X Size 18 to 100

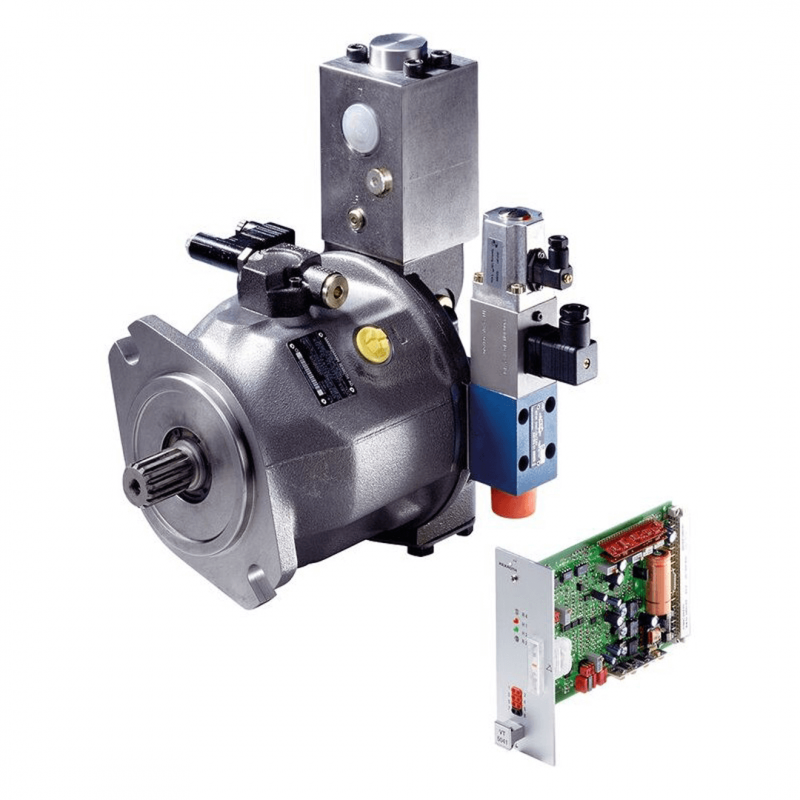

Electro-hydraulic pressure and flow control system SYDFE1-2X

  • With axial piston variable displacement pump A10VSO.../31
  • Size 18 … 100
  • Component series 2X
  • Maximum operating pressure 280 bar
  • Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
Print page

Description
Downloads

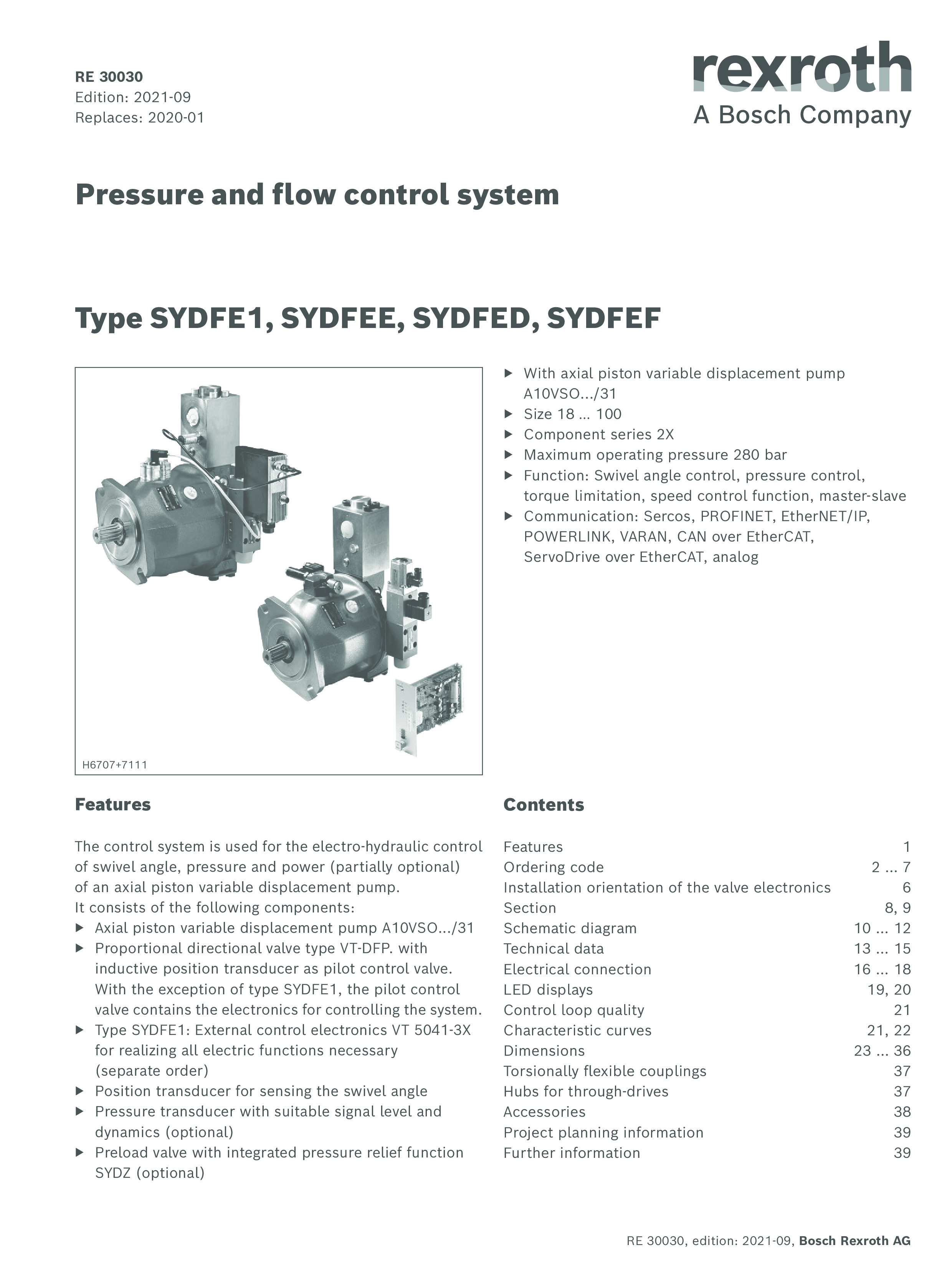

RE_30030_2021-09

Bosch Rexroth Electro-hydraulic pressure and flow control system SYDFE1-2X

  • With axial piston variable displacement pump A10VSO.../31
  • Size 18 … 100
  • Component series 2X
  • Maximum operating pressure 280 bar
  • Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
  • Communication: Sercos, PROFINET, EtherNET/IP, POWERLINK, VARAN, CAN over EtherCAT, ServoDrive over EtherCAT, analog

Features:

  • The control system is used for the electro-hydraulic control of swivel angle, pressure and power (partially optional) of an axial piston variable displacement pump.
  • Axial piston variable displacement pump A10VSO.../31
  • Proportional directional valve type VT-DFP. with inductive position transducer as pilot control valve. With the exception of type SYDFE1, the pilot control valve contains the electronics for controlling the system.
  • Type SYDFE1: External control electronics VT 5041-3X for realizing all electric functions necessary(separate order)
  • Position transducer for sensing the swivel angle
  • Pressure transducer with suitable signal level and dynamics (optional)
  • Preload valve with integrated pressure relief function SYDZ (optional)
