SYDFEE-3X Size 45 to 180

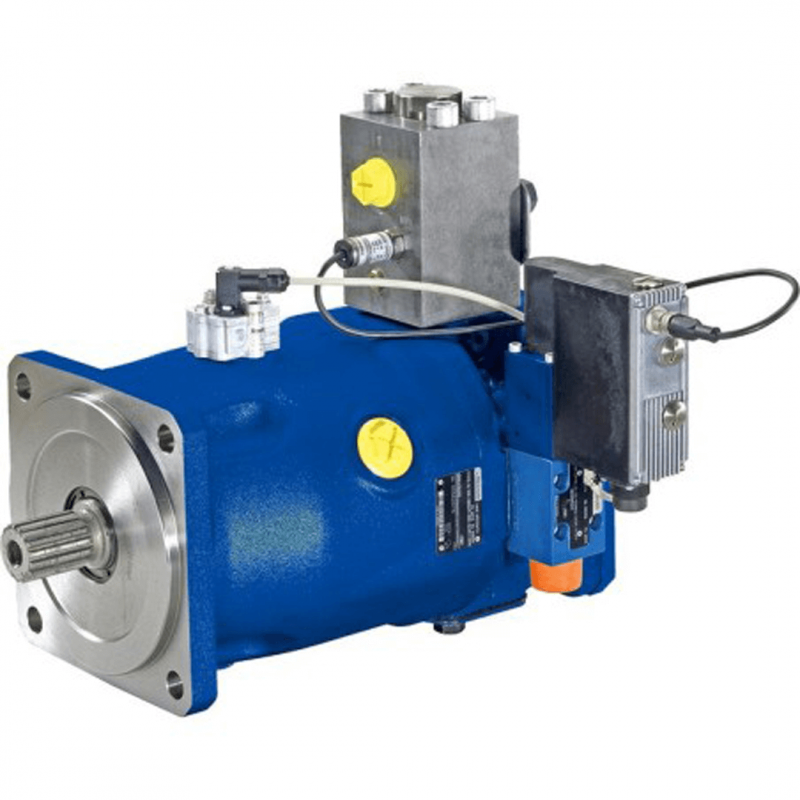

Electro-hydraulic pressure and flow control system SYDFEE-3X
- With axial piston variable displacement pump A10VSO.../32
- Size 45 … 180
- Component series 3X
- Maximum operating pressure 280 bar
- Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
Description
Downloads
Bosch Rexroth Electro-hydraulic pressure and flow control system SYDFEE-3X
- With axial piston variable displacement pump A10VSO.../32
- Size 45 … 180
- Component series 3X
- Maximum operating pressure 280 bar
- Function: Swivel angle control, pressure control, torque limitation, speed control function, master-slave
- Communication: Sercos, PROFINET, EtherCAT, EtherNET/IP, POWERLINK, VARAN, CAN over EtherCAT, ServoDrive over EtherCAT, analog
Features:
- The control system is used for the electro-hydraulic control of swivel angle, pressure and power (partially optional) of an axial piston variable displacement pump.
- Axial piston variable displacement pump A10VSO.../32
- Proportional directional valve type VT-DFP with inductive position transducer as pilot control valve. With the exception of type SYDFE1, the pilot control valve contains the electronics for controlling the system.
- Type SYDFE1: External control electronics VT 5041-3X for realizing all electric functions necessary (separate order)
- Position transducer for sensing the swivel angle
- Pressure transducer with suitable signal level and dynamics (optional)
- Preload valve with integrated pressure relief function SYDZ (optional)
