Hilma Electro-Mechanical Tenon-type Clamp WZ 5.2620

Electro-mechanical Tenon Type Clamp

HILMA WZ 5.2620 Self-locking Tenon type Clamping Elements with Position Monitoring, for automatic clamping of dies.

  • Clamping force: 70 - 160 kN
  • Max. static force: 110 - 300 kN
  • Clamping speed: 3.8 - 4.1 mm/s
  • Motor voltage: 400 V / 50 Hz
  • Motor rating: 0.55 - 1.1 kW
  • Clamping stroke: 5 mm
Print page

Description
Downloads
WZ52620 en 0217
GB_05_2620

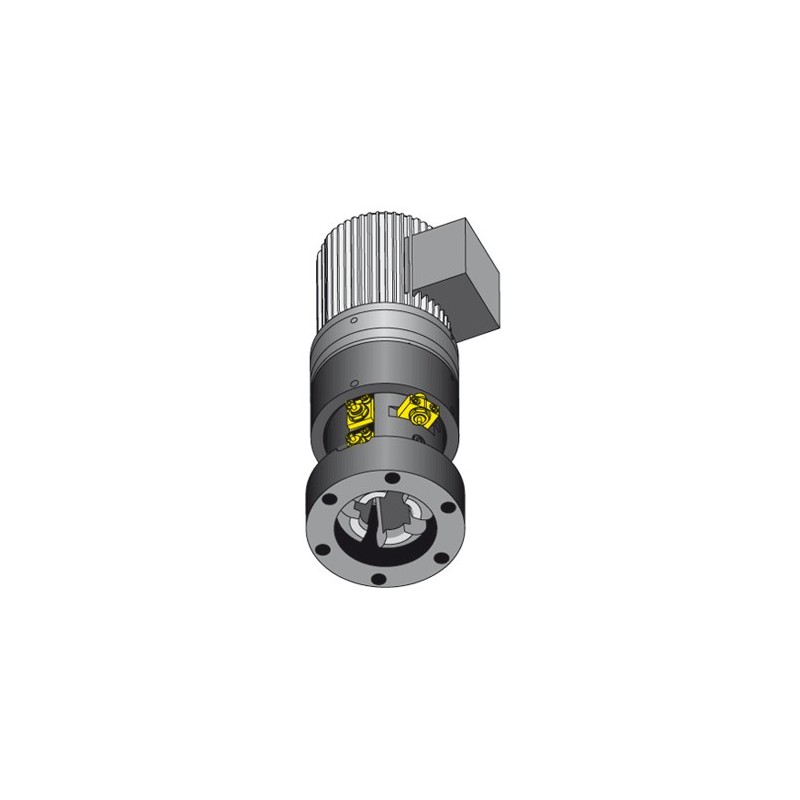

Electro-mechanical Tenon-type Clamp - HILMA WZ 5.2620

  • Clamping force: 70 - 160 kN
  • Max. static force: 110 - 300 kN
  • Clamping speed: 3.8 - 4.1 mm/s
  • Motor voltage: 400 V / 50 Hz
  • Motor rating: 0.55 - 1.1 kW
  • Clamping stroke: 5 mm

Advantages:

  • High operational safety by position monitoring and automatic motion sequence
  • Central operation of all clamping elements
  • Compact and sturdy design
  • Resistant to high mechanical loads
  • Shock-resistant up to a max. ram acceleration of 12 g
  • Suitable for retrofit and for installation in original equipment
  • No colliding edges when inserting the dies

Application:

  • Automatic clamping of dies
  • On the press ram
  • On blank holders
  • At environmental temperatures up to max. 70 °C

Description:

The rotation of the motor is converted into a grip and pull movement of the clamping claws by the flexspline gear and the lead screw. For clamping, the claws grip the tenon of the clamping point and pull it towards the clamping element. The clamping force and the clamping and unclamping positions are monitored by inductive proximity switches. The clamping force is maintained by self-locking.
