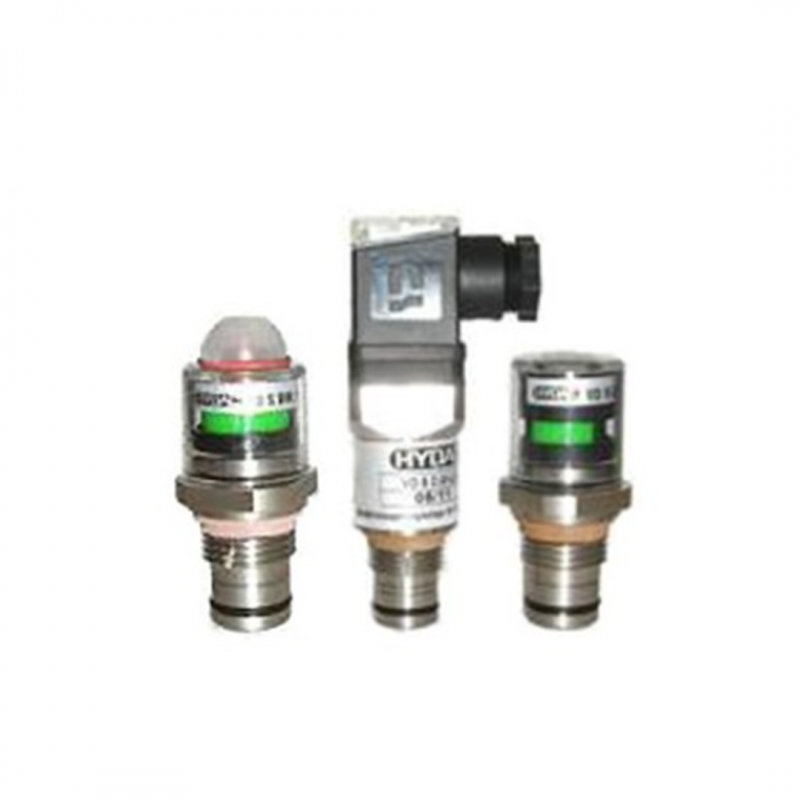

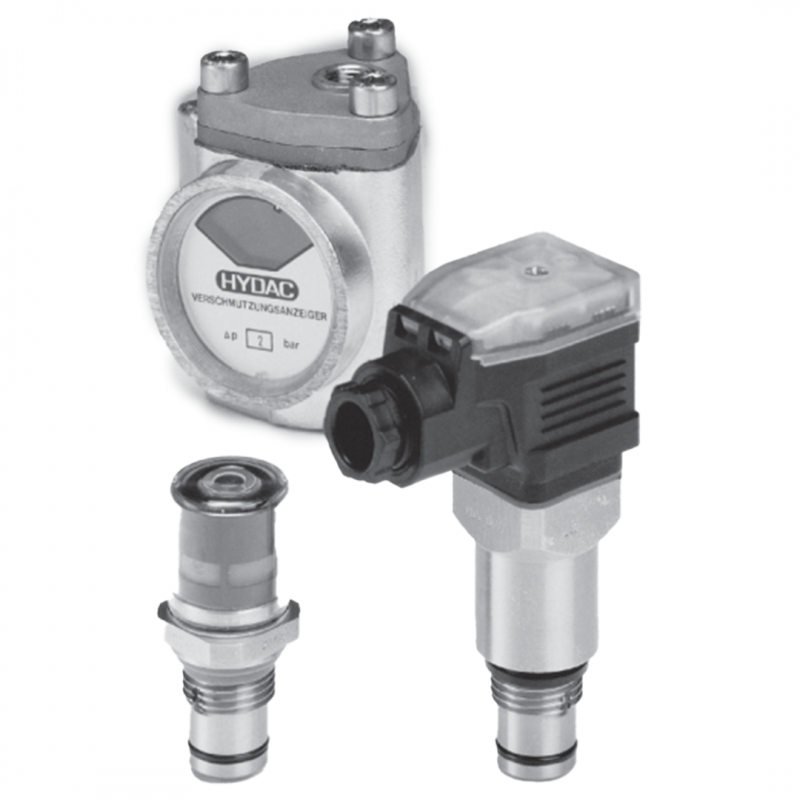

Hydac Differential Pressure Indicators from Stainless Steel PVD
PVD differential pressure indicators from stainless steel are used on all process filters
- Max. differential pressure: 420 bar
- Typical response pressures: 2 / 5 / 8 bar
- Versions: optical, electrical, optical/electrical, electronic-analogue
HYDAC PVD Differential Pressure Indicators (up to 420 bar) monitor filter contamination by measuring pressure differences and signaling when maintenance is needed. Made from stainless steel with FPM seals, they offer optical, electrical, or combined signals for reliable, efficient filter performance in process systems.
Description
Downloads
HYDAC Differential Pressure Indicators from Stainless Steel PVD
- Max. differential pressure: 420 bar
- Typical response pressures: 2 / 5 / 8 bar
- Versions: optical, electrical, optical/electrical, electronic-analogue
Features:
- Differential pressure indicators are used on all process filters
- They react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases HYDAC PVD Differential Pressure Indicators from Stainless Steel
- In the standard model all parts in contact with the medium are made from stainless steel and the seals are in FPM (Viton)
General Function:
Clogging indicators for HYDAC process filters are designed to indicate visually and/or electrically when the filter elements have to be cleaned or changed. The use of clogging indicators guarantees both the operational safety of the system and the efficient utilisation of the filter elements.
