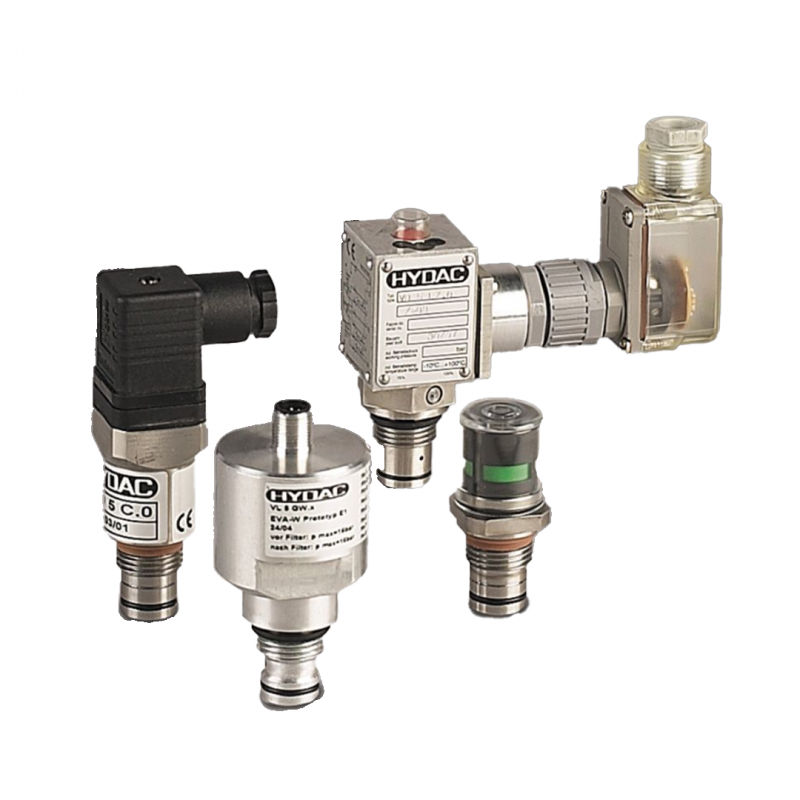

Hydac Differential Pressure Indicators VD
VD differential pressure indicators react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases.
- Max. differential pressure: 420 bar
- Typical response pressures: 2 / 5 / 8 bar
- Versions: optical, electrical, optical/electrical, electronic-analogue
HYDAC VD Differential Pressure Indicators (up to 420 bar) detect rising pressure differentials in process filters to indicate when elements need replacement. With response pressures of 2, 5, or 8 bar and optical, electrical, or combined versions, they’re easy to install and help prevent premature element changes while ensuring system reliability.
Description
Downloads
HYDAC Differential Pressure Indicators VD
- Max. differential pressure: 420 bar
- Typical response pressures: 2 / 5 / 8 bar
- Versions: optical, electrical, optical/electrical, electronic-analogue
Features:
- Differential pressure indicators are used on all process filters
- They react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases
- All standard filters can be fitted with a clogging indicator at any time, by simply screwing it in
Fitting a clogging indicator has two main advantages:
- The operator no longer has to estimate when the element is clogged
- The unnecessary costs of changing the element too early are avoided
