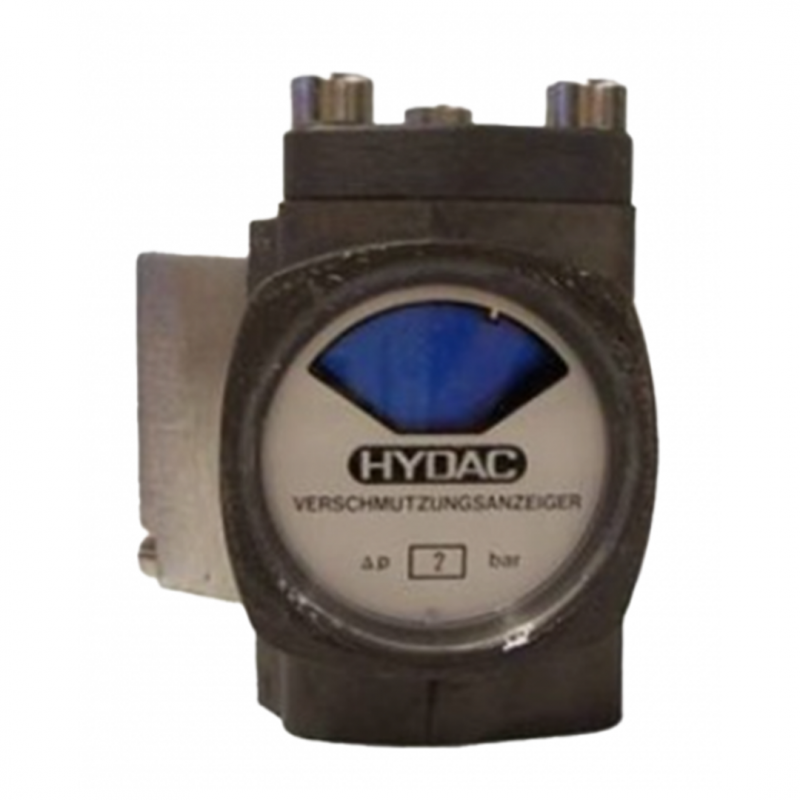

Hydac Differential Pressure Indicators V02
Differential Pressure Indicators V02
- Max. differential pressure: 100 bar
- For external pipework G¼
- Typical response pressures: 0.8 / 2 / 4.3 bar
- Versions: optical analogue field, optional with one or two electrical contacts
HYDAC V02 Differential Pressure Indicators (up to 100 bar) monitor filter contamination via pressure differential and signal when element replacement is needed. Designed for external pipework (G¼) with response pressures of 0.8, 2, or 4.3 bar, they feature an optical analogue display and optional electrical contacts, with all media-contact parts in stainless steel for durability.
HYDAC Differential Pressure Indicators V02
- Max. differential pressure: 100 bar
- For external pipework G¼
- Typical response pressures: 0.8 / 2 / 4.3 bar
- Versions: optical analogue field, optional with one or two electrical contacts
Features:
- Differential pressure indicators are used on all process filters
- They react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases
General Function:
Clogging indicators for HYDAC process filters are designed to indicate visually and/or electrically when the filter elements have to be cleaned or changed.
Differential pressure indicators are used on all process filters. They react to the pressure differential between the filter inlet and filter outlet which rises as the level of contamination in the element increases. In the standard model all parts in contact with the medium are made from stainless steel.
