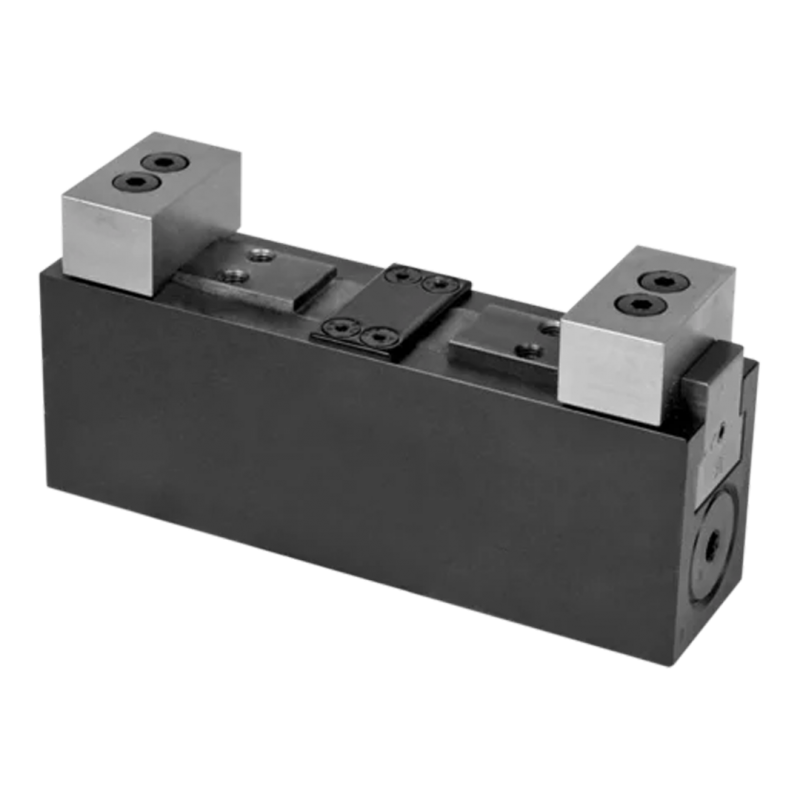

Position Flexible Fixture Clamp

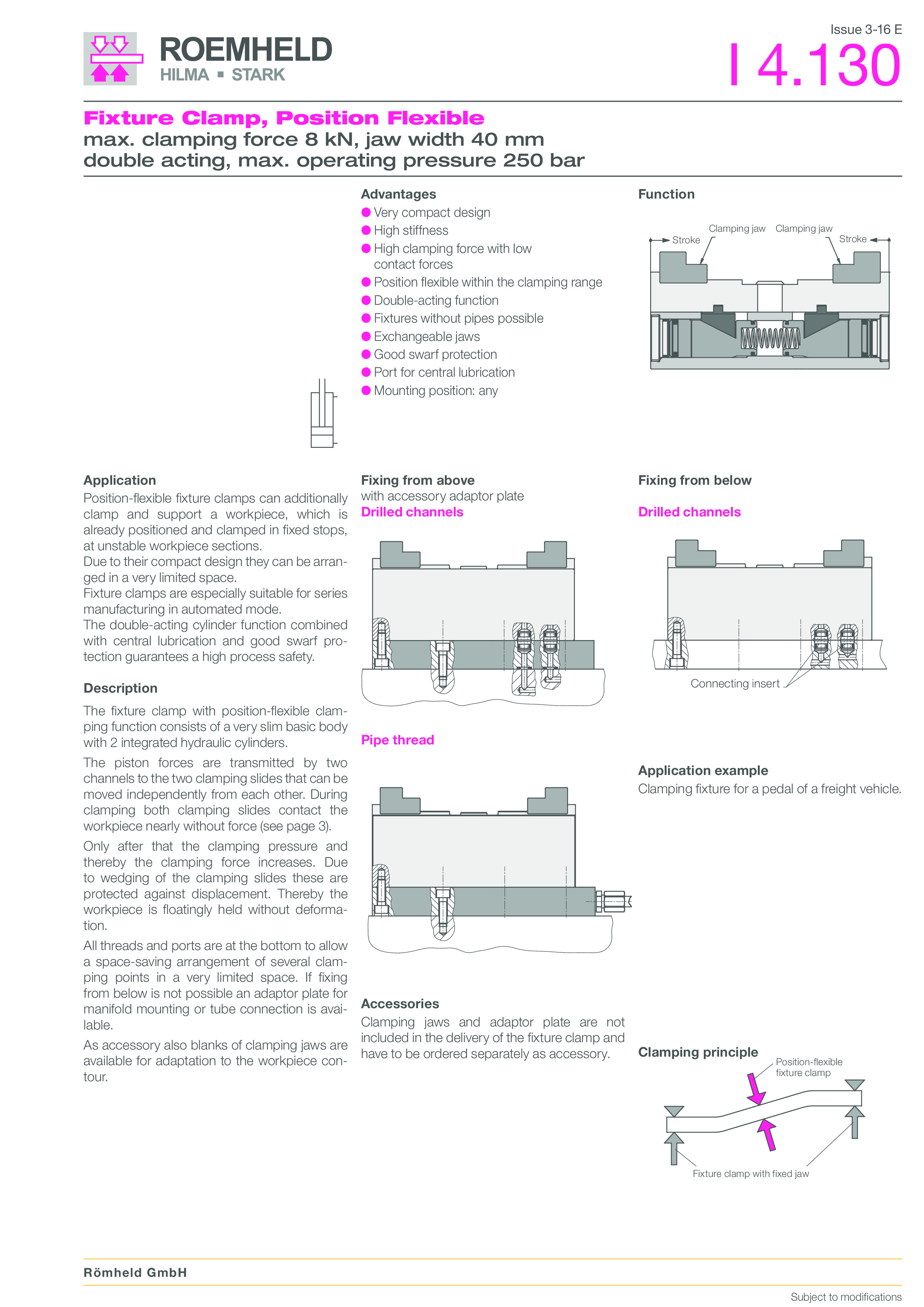

Position Flexible Fixture Clamp - ROEMHELD I4.130

• Max. clamping force: 8 kN
• Max. retention force: 10 kN
• Jaw width: 40 mm
• Clamping stroke: 2x 8 mm
• Max. flow rate: 17 cm³/s
• Max. operating pressure 250 bar

Advantages:

• Very compact design
• High stiffness
• High clamping force with low contact forces
• Position flexible within the clamping range
• Double-acting function
• Fixtures without pipes possible
• Exchangeable jaws
• Good swarf protection
• Port for central lubrication
• Mounting position: any

Description:

The fixture clamp with position-flexible clamping function consists of a very slim basic body with 2 integrated hydraulic cylinders. The piston forces are transmitted by two channels to the two clamping slides that can be moved independently from each other. During clamping both clamping slides contact the workpiece nearly without force.

Application:

Position-flexible fixture clamps can additionally clamp and support a workpiece, which is already positioned and clamped in fixed stops, at unstable workpiece sections. Due to their compact design they can be arranged in a very limited space. Fixture clamps are especially suitable for series manufacturing in automated mode. The double-acting cylinder function combined with central lubrication and good swarf protection guarantees a high process safety.
