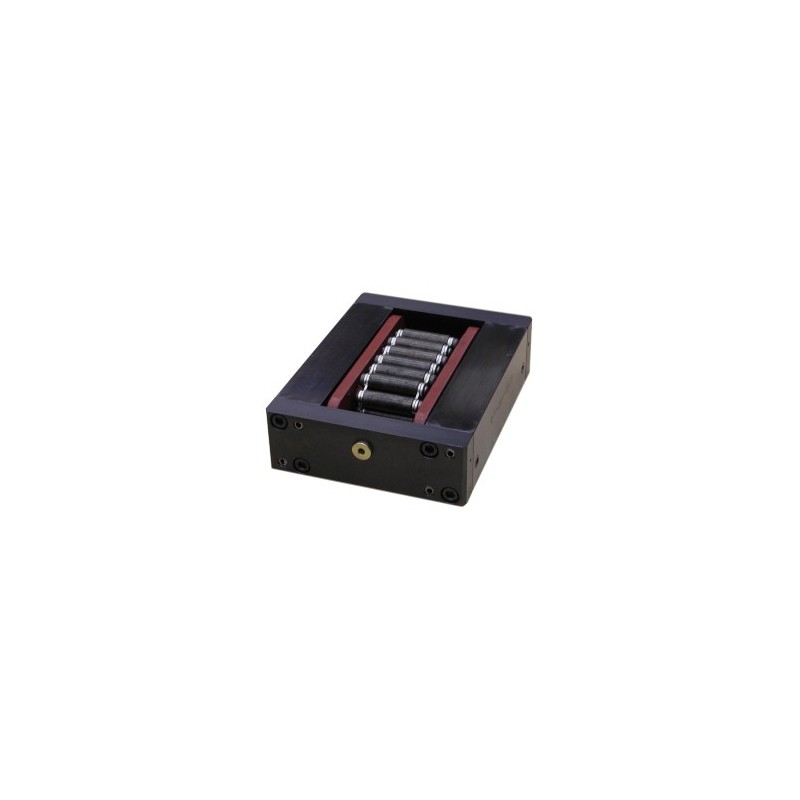

Hydraulically Lifted High Load Roller Track
Hilma die changing cushions with armoured rollers facilitate the handling of very heavy dies. The rugged armoured rollers, which are installed in the cushion, are hydraulically lifted for die change. The solid construction is perfectly suitable for the arduous conditions prevailing in press shops and guarantees a long service life.
- Load bearing capacity: 80 kN at 140 bar
- Piston stroke: 12 mm
- Dimensions: approx. 260x 200x 73 mm (LxWxH)
Armoured rollers made of 50CrV4 steel, steel housing with 8 pistons, max. permissible speed: 5 m/ min
Application:
- integrated into the press table or the die cart
Function:
The armoured rollers are provided with pistons on their lower side. By means of a hydraulic pressure generator pressure is applied, and the pistons lift the armoured rollers. The die is not in contact with the bed plate and can be moved effortlessly.
Features and benefits:
In addition to a reduction of unproductive set-up times, this die changing system offers further benefits to the user: profit is maximised as downtimes are reduced. Shorter set-up times allow small batches to be machined. More safety for the operator and the machine. Safe, effortless and accident-free die handling, thus humanisation of work
