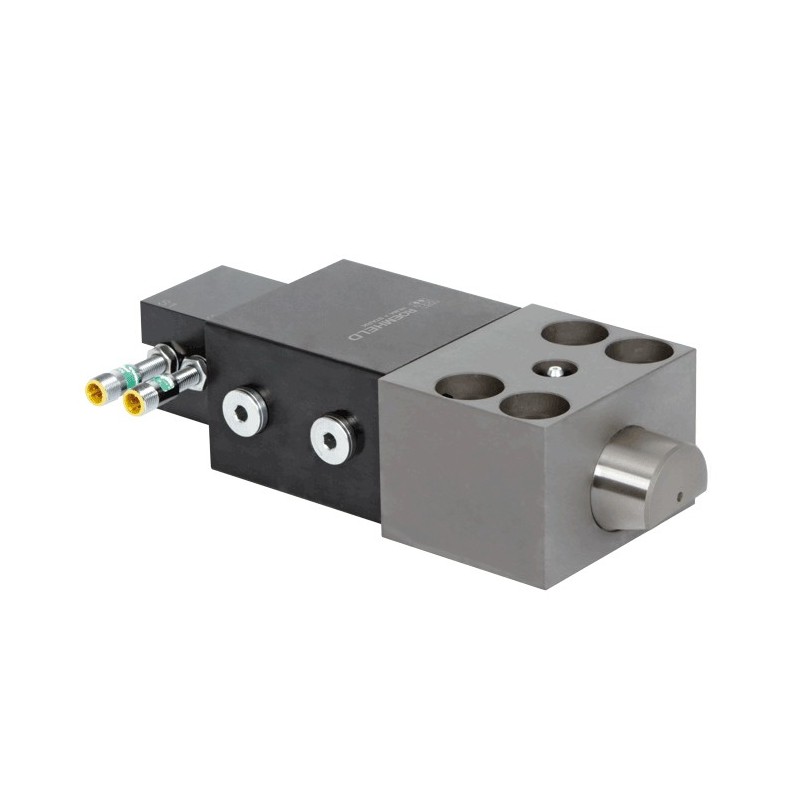

Wedge Clamps for Tapered Clamping Edge with Adjustable Position Monitoring at the back
HILMA WZ2.2402 Wedge Clamps for Tapered Clamping Edge double acting, max. clamping force 25 to 630 kN, with adjustable position monitoring at the back
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 80/120 °C
Wedge Clamps for Tapered Clamping Edge with Adjustable Position Monitoring at the back - HILMA WZ2.2402
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 80/120 °C
Advantages:
- The clamping range can be flexibly adjusted
- Safe clamping of moulds/dies with tapered clamping edge
- High operational safety by adjustable position monitoring and automatic motion sequence
- Very sturdy design
- High safety standard
- Long service life
- Sizes up to 1250 kN are available on request
Application:
Double-acting wedge clamp for clamping moulds or dies on a press bed or ram or in injection moulding machines, machines and installations.
Description:
The wedge clamp consists of a hydraulic block cylinder and a piston guided in a housing. The clamping bolt is provided with 20° bevel to clamp on the tapered clamping surface of the mould/die. Based on the internal design of the wedge clamp and the 20° bevel of the clamping bolt, the system is providing internal friction.
