Wedge Clamps for Tapered Clamping Edge with Locking Bolt without and with Position Monitoring at the side

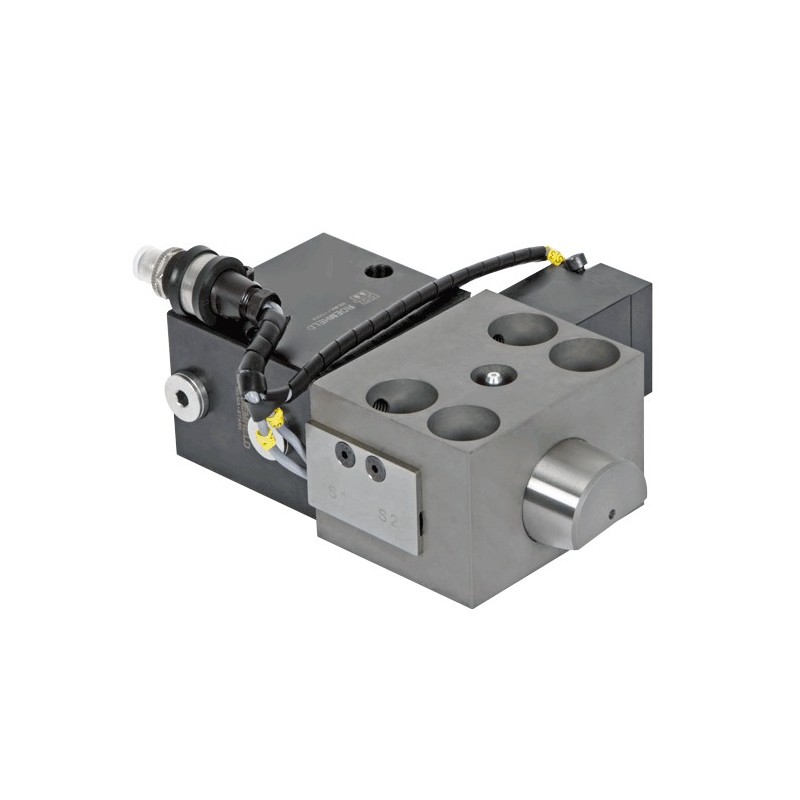

HILMA WZ2.2405 Wedge Clamps for Tapered Clamping Edge double acting, max. clamping force 25 to 630 kN, with locking bolt, without and with position monitoring at the side
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 160/100 °C (300 °C on request)
Wedge Clamps for Tapered Clamping Edge with Locking Bolt without and with Position Monitoring at the side - HILMA WZ2.2405
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 160/100 °C (300 °C on request)
Advantages:
- Safe clamping of moulds/dies with tapered clamping edge
- High operational safety by locking bolt and position monitoring at the side
- Very sturdy design
- Additionally increased safety standard
- Long service life
Application:
Double-acting wedge clamp for clamping moulds or dies on a press bed or ram or in injection moulding machines, machines and installations.
Description:
The wedge clamp consists of a hydraulic block cylinder and a piston guided in a housing. The clamping bolt is provided with 20° bevel to clamp on the tapered clamping surface of the mould/die. Based on the internal design of the wedge clamp and the 20° bevel of the clamping bolt, the system is providing internal friction. The clamping bolt of this wedge clamp is secured against retraction with an additional locking cylinder and locking bolt. Leaving the clamping position is only possible by unlocking the locking bolt.
