Wedge Clamps for Tapered Clamping Edge with Safety Step without and with Position Monitoring

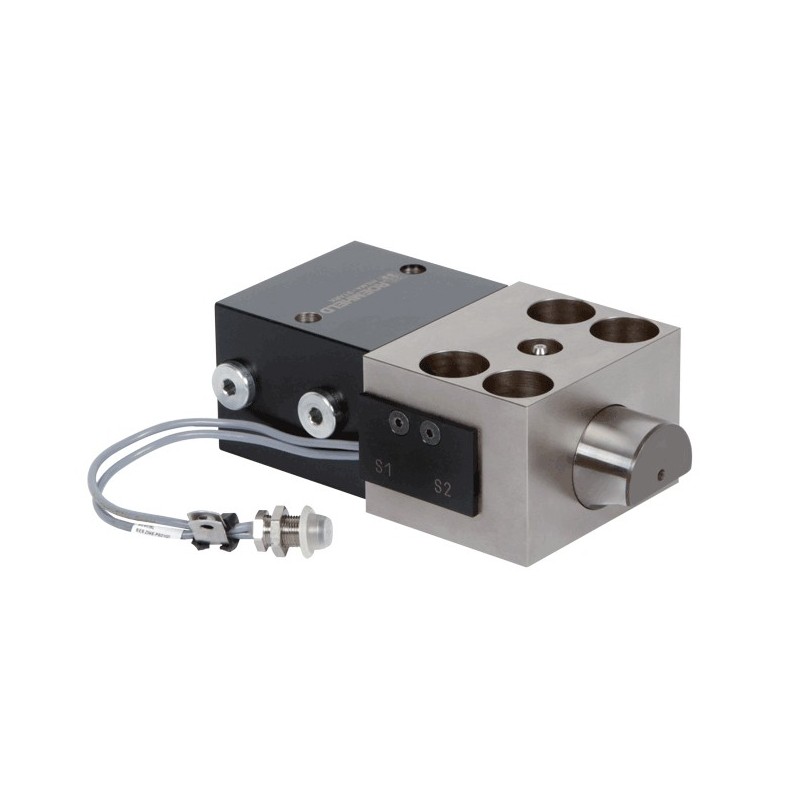

HILMA WZ2.2403 Wedge Clamps for Tapered Clamping Edge double acting, max. clamping force 25 to 630 kN, with safety step, without and with position monitoring
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 160/100 °C (300 °C on request)
Wedge Clamps for Tapered Clamping Edge with Safety Step without and with Position Monitoring - HILMA WZ2.2403
- Max. clamping force: 25 .. 630 kN
- Adm. retaining force: 35 .. 820 kN
- Cylinder diameter: 25 .. 125 mm
- Clamping stroke: 20 .. 40 mm
- Max. temperature: 160/100 °C (300 °C on request)
Advantages:
- Safety step for the support of the upper die or mould half when the pressure drops
- Safe clamping of moulds/dies with tapered clamping edge
- High operational safety by position monitoring and automatic motion sequence
- Very sturdy design
- High safety standard
- Long service life
- Sizes up to 1250 kN are available on request
Application:
Double-acting wedge clamp with safety step at the clamping bolt for clamping moulds or dies on a press bed or ram or in injection moulding machines, machines and installations.
Description:
The wedge clamp consists of a hydraulic block cylinder and a piston guided in a housing. The clamping bolt is provided with 20° bevel to clamp on the tapered clamping surface of the mould/die. Based on the internal design of the wedge clamp and the 20° bevel of the clamping bolt, the system is providing internal friction.
