Wedge Clamps for Straight Clamping Edge Clamping with Spring Force and Hydraulic Unclamping without and with Position Monitoring

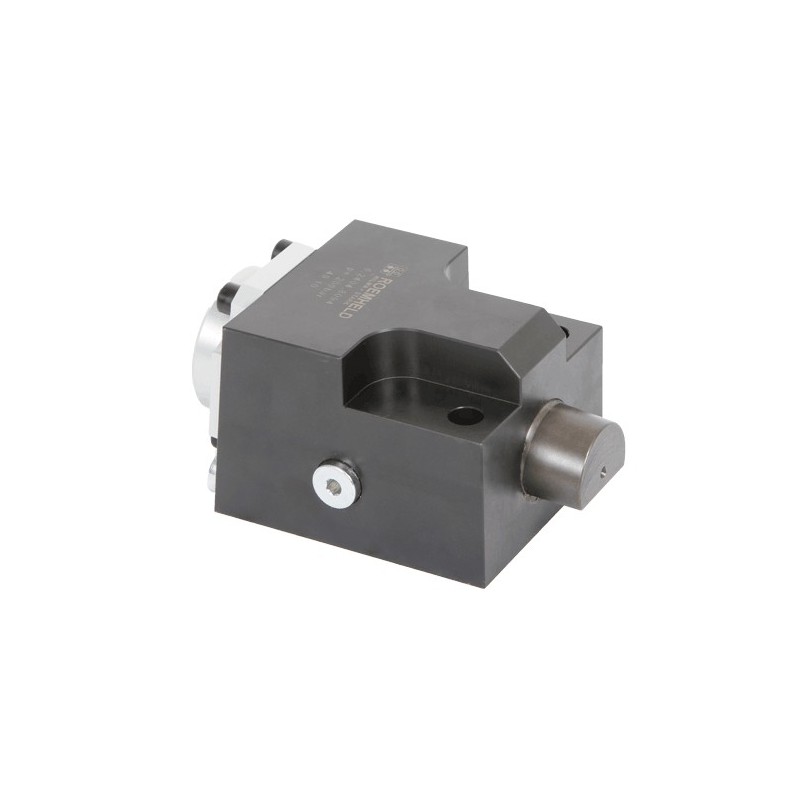

Wedge Clamps for Straight Clamping Edge Clamping with Spring Force and Hydraulic Unclamping without and with Position Monitoring - HILMA WZ2.2450

• Adm. retaining force: 25 - 120 kN
• Cylinder diameter: 35 - 85 mm
• Clamping stroke: 14 - 19 mm
• Temperature resistance: up to 80°C (on request: up to 250 °C)

Advantages:

• Safe clamping of dies with flat clamping edge
• High operating safety due to clamping with spring force as well as inductive and visual position monitoring
• Position monitoring on the left or right side
• Clamping element with self-locking
• Dimensions in accordance with Euromap guidelines
• No clamping edge bevels are required
• Variable clamping edge heights (spacer plates)
• Tolerance of clamping edge height ± 0.15 mm
• The pressure of the machine hydraulics of 160 bar is sufficient for unclamping
• Very sturdy and compact design
• Housing with stainless coating
• Flexible connecting possibilities by 4 hydraulic connections

Application:

The single-acting wedge clamps are suitable for safe clamping of moulds and dies with flat clamping edge in injection moulding machines, punches and presses.

Description:

The wedge clamps consist of a guide housing with one-piece clamping bolt. Clamping cycle: the clamping bolt which is inclined by 6° performs an idle stroke and simultaneously a clamping stroke. The clamping bolt is lowered axially onto the clamping edge. The 6° angle, the spring force in the clamping bolt and the frictional engagement at the clamping point create a self-locking connection. The wedge clamp should preferably be used with position monitoring.
