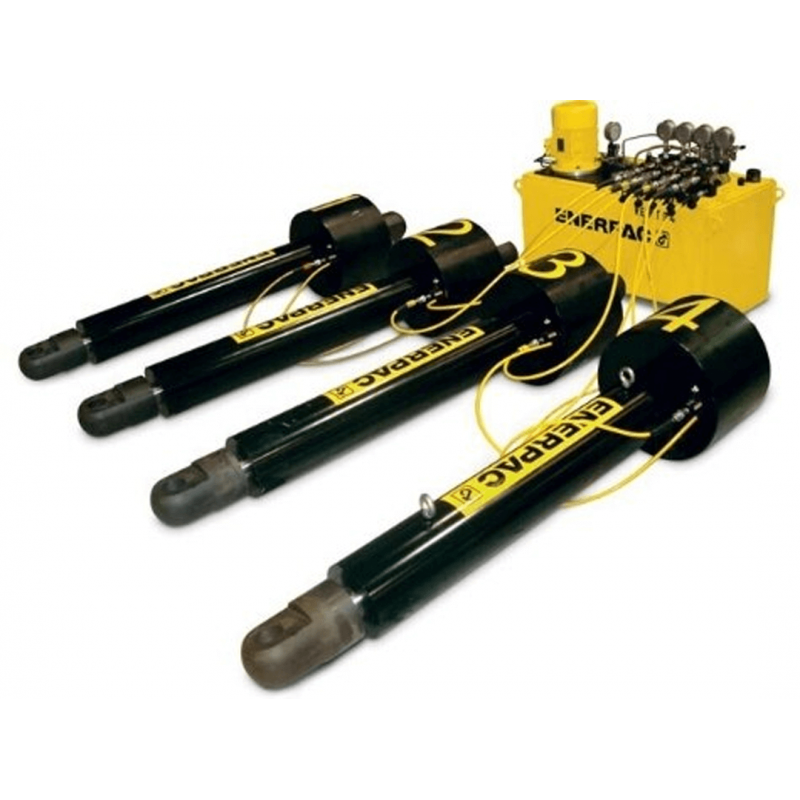

Enerpac SHC, SHP-Series, SyncHoist Load Positioning
Enerpac SyncHoist is a unique crane product for below-the-hook positioning of heavy loads that require precision placement
- Capacity Per Lifting Point: 55 - 85 - 110 ton
- Maximum Stroke: 1000 - 1500 mm
- Accuracy Over Full Stroke: ± 1,0 mm
- Maximum Operating Pressure: 700 bar
Description
Downloads
Enerpac SHC, SHP-Series, SyncHoist Load Positioning
- Capacity Per Lifting Point: 55 - 85 - 110 ton
- Maximum Stroke: 1000 - 1500 mm
- Accuracy Over Full Stroke: ± 1,0 mm
- Maximum Operating Pressure: 700 bar
Features:
- High precision load manoeuvring, vertically and horizontally – using one crane
- Reduces the risk of damage from oscillations of wire rope due to crane jogging and sudden starts/stops
- Vastly improving worker safety, operating speed and control
- Weather conditions play less critical role
- PLC-controlled hydraulics turn lifting into high accuracy hoisting and load positioning system
- Double-acting push/pull cylinders with load holding valves for added safety in case of hose rupture or coupler damage
- Cost reduction compared to conventional load positioning methods.
