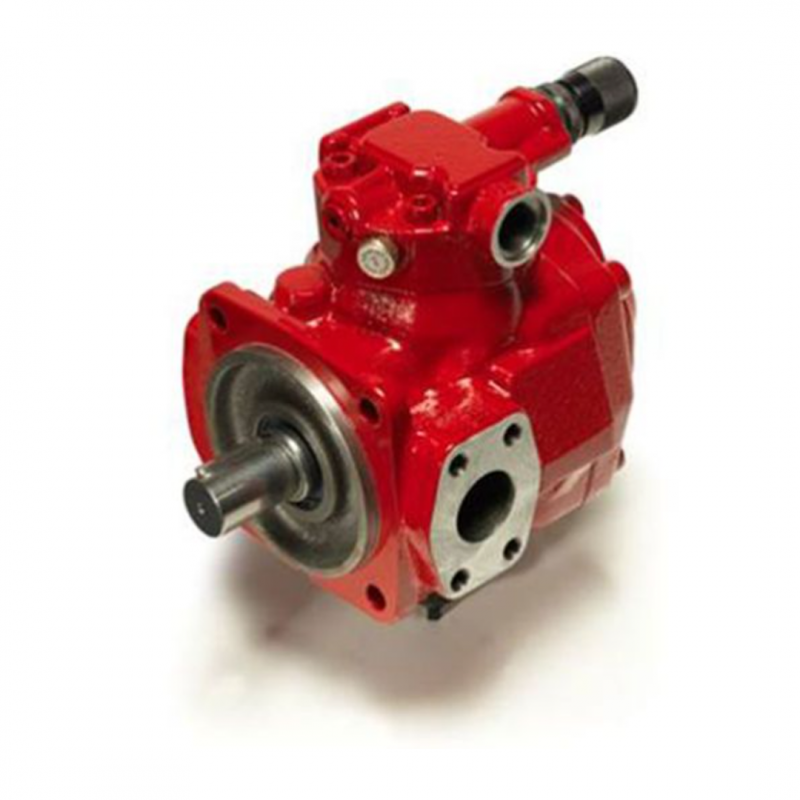

Hydac Variable Displacement Hydraulic Compensation - PVV100
The PVV100 pump series offers flexible installation options with precise suction, return, and drain line requirements to ensure optimal performance and longevity. Proper coupling, venting, and commissioning procedures guarantee safe and efficient operation across all pump sizes.
Key Features:
- Flexible Installation: Size 1 any position; sizes 2 & 3 horizontal with compensator on top
- Suction & Drain: Correct line size and direct tank return to prevent foaming
- Safe Commissioning: Gear coupling only, venting via air bleed, maintain ≤20 °C oil-to-ambient difference
The PVV100 pump series provides reliable hydraulic performance in diverse operating conditions. Size 1 pumps can be installed in any position, while sizes 2 and 3 require horizontal mounting with the compensator on top. Suction and return lines must be correctly sized and routed to ensure proper flow, avoid cavitation, and prevent foaming. The pump must be connected with a gear coupling, avoiding radial or axial shaft loads. During commissioning, the pump should be vented at maximum flow and started fully filled, with oil-to-ambient temperature differences kept under 20 °C to ensure safe operation and long service life.
