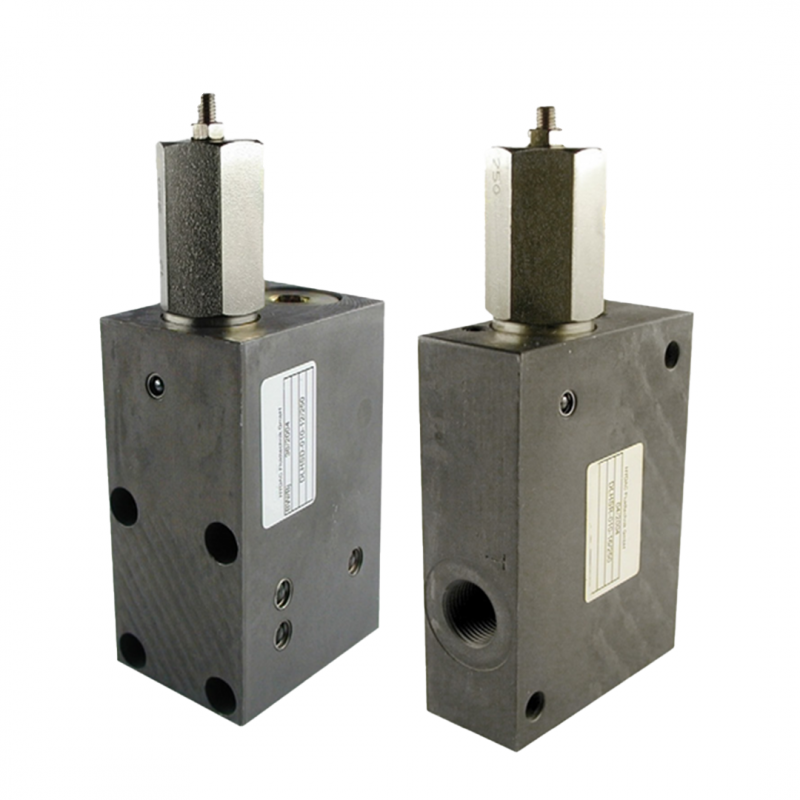

Hydac Accumulator Charging Valves DLHSD / DLHSR
Accumulator charging valves DLHSD / DLHSR for manifold or inline mounting
- Operating pressure: min. 0 to max. 350 bar
max. 10 bar across tank port T - Nominal flow: max. 30 l/min
The HYDAC Accumulator Charging Valves DLHSD (manifold) and DLHSR (inline) offer reliable recharging of accumulators up to 350 bar, with minimal leakage and built-in check valves for easy installation. Compact and efficient, they feature adjustable switch-off pressures and low pressure drop, ensuring full accumulator capacity and seamless integration into hydraulic systems.
Description
Downloads
HYDAC Accumulator Charging Valves DLHSD / DLHSR
- Operating pressure: min. 0 to max. 350 bar
max. 10 bar across tank port T - Nominal flow: max. 30 l/min
- temperature range: min. -20 °C to max. +100 °C
- DLHSD (Manifold Mounting)
- DLHSR (Inline Mounting)
Features:
- Re-charging of the accumulator is dependent on the switch-on pressure, resulting in full accumulator capacity for emergency function in pump intermittent duty mode
- Switch-off pressures within the pressure ranges 100, 250 and 350 bar freely adjustable
- Very low discharge of the accumulator due to pilot stage with minimal leakage
- Compact design enables space-saving installation in control blocks and power units
- Optimal system adaptation due to valves with different, fixed switching pressure differentials (12, 16, 21%)
- Built-in check valve means no additional installation cost
- Low Δp characteristics
- Various pressure ranges up to 350 bar
- Simple commissioning by setting the switch-off pressure
