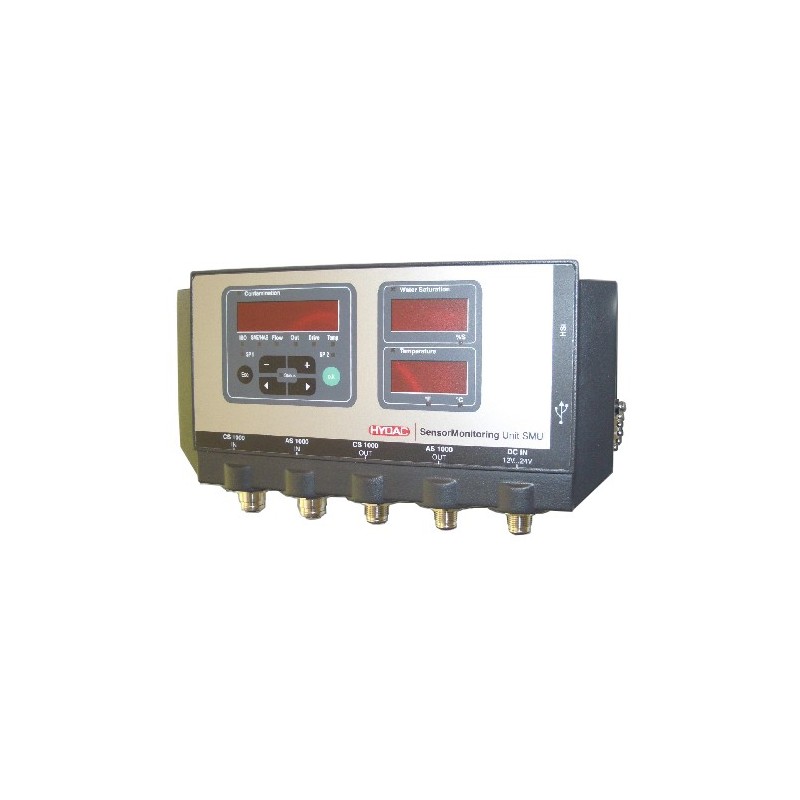

Hydac SensorMonitoring Unit SMU 1200 Series

The HYDAC SMU 1200 SensorMonitoring Unit is a plug-and-play display and data logging system for HYDAC fluid sensors, featuring a bright LED screen and easy installation via magnet or rail mount. With IP67 protection, built-in data memory, and USB export, it enables reliable monitoring and simple data evaluation without the need for programming.

Key Features:

  • Display LED, 6/4/4-digit, each with 17 segments
  • Ambient temperature 0 °C to +55 °C
  • Storage temperature range -40 °C to +80 °C
  • Max. power and current consumption 15 watts; 1250 mA
Print page

Description
Downloads
Hydac SensorMonitoring Unit SMU 1200 Series

HYDAC SensorMonitoring Unit SMU 1200 Series

  • Display LED, 6/4/4-digit, each with 17 segments
  • Ambient temperature 0 °C to +55 °C
  • Storage temperature range -40 °C to +80 °C
  • Max. power and current consumption 15 watts; 1250 mA

The SMU1200 SensorMonitoring Unit is a display unit for the HYDAC fluid sensors which is designed for the display and storage of the measurement data. The following combination of fluid sensors can be connected directly:

  • ContaminationSensor CS 1000 and AquaSensor AS 1000
  • MetallicContamination Sensor MCS 1000 and AquaSensor AS 1000
  • Simple installation parallel to the customer system (HydacSensor Interface HSI for SMU 1200, forwarding of the sensor's own analogue and switching outputs)
  • Simple installation by means of magnet holder or top-hat rail installation
  • High protection class with IP67, no switch cabinet construction required
  • Plug and Work unit including the necessary 5 m connection cable for direction connection of the sensors (sensor connections via M12x1 plug-in connectors, no programming required)
  • Depiction of the measurement data on large display screen
  • Simple operation per keyboard
  • Data memory in SMU with date and time stamp
  • Reading out the measured values with the supplied (commercially available) USB memory stick via USB master socket
  • Simple data processing and data evaluation by means of MS-Excel or HYDAC FluidMonitoring software FluMoS
  • Automatic program start after resumption of voltage, no loss of measurement data
