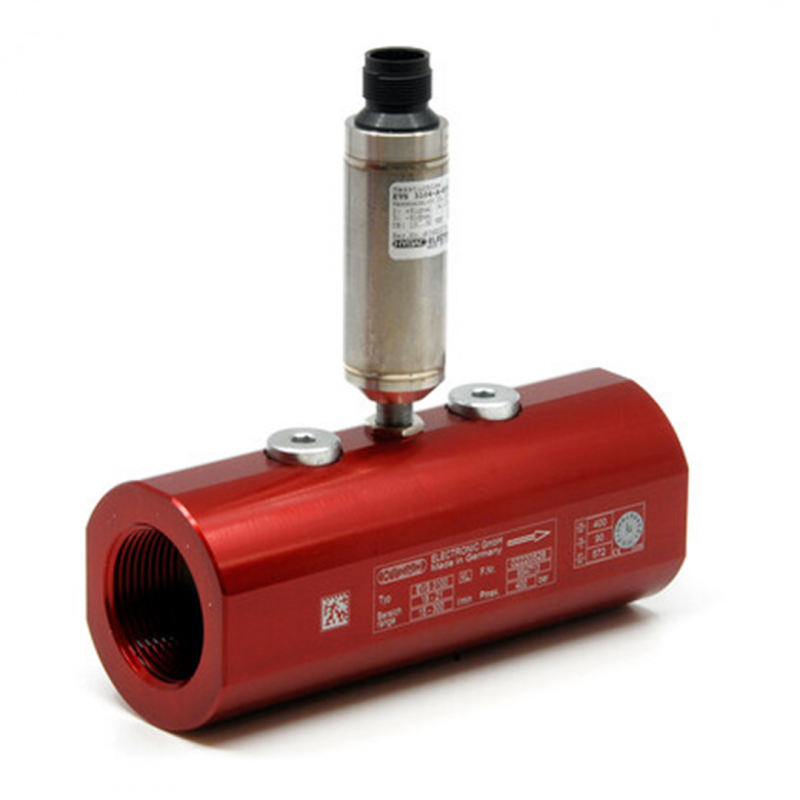

Hydac Flow Rate Transmitter EVS 3100 for Oils / Viscous Fluids
The HYDAC EVS 3100 Flow Rate Transmitter measures flow rates of oils and viscous fluids (1–100 cSt) with a 4–20 mA output. Pressure-resistant up to 400 bar, it supports additional temperature and pressure sensors.
Key Features:
- Suitable for pressures up to 400 bar
- Viscosities from 1 .. 100 cSt
- Output signal 4 .. 20 mA
- Additional connection of temperature and/or pressure transmitters possible
Description
Downloads
HYDAC Flow Rate Transmitter EVS 3100 for Oils / Viscous Fluids
- Pressure resistant to 400 bar (depending on model)
- Viscosities of 1 .. 100 cSt
- Output signal 4 .. 20 mA
- Additional connection of temperature and / or pressure transmitters possible
Model Features:
|
Part Number
|
Measuring range
|
Torque value
|
Operating pressure
|
|
EVS 310X-A-0020
|
1.2 .. 20.0 l/min
|
60 Nm
|
400 bar
|
|
EVS 310X-A-0060
|
6.0 .. 60.0 l/min
|
130 Nm
|
400 bar
|
|
EVS 310X-A-0300
|
15.0 .. 300.0 l/min
|
500 Nm
|
400 bar
|
|
EVS 310X-A-0600
|
40.0 .. 600.0 l/min
|
600 Nm
|
315 bar
|
General Function:
The flow rate transmitters of the EVS 3100 series (aluminium series) are specially designed for use in hydraulic and other fluid technology systems. They operate according to the turbine principle, i.e. the speed of an impeller turning in the fluid flow is measured and converted into a 4 ... 20 mA analogue signal. Two further G1/4 threaded holes in the turbine housing allow additional units to be connected, e.g. temperature and pressure transmitters.
