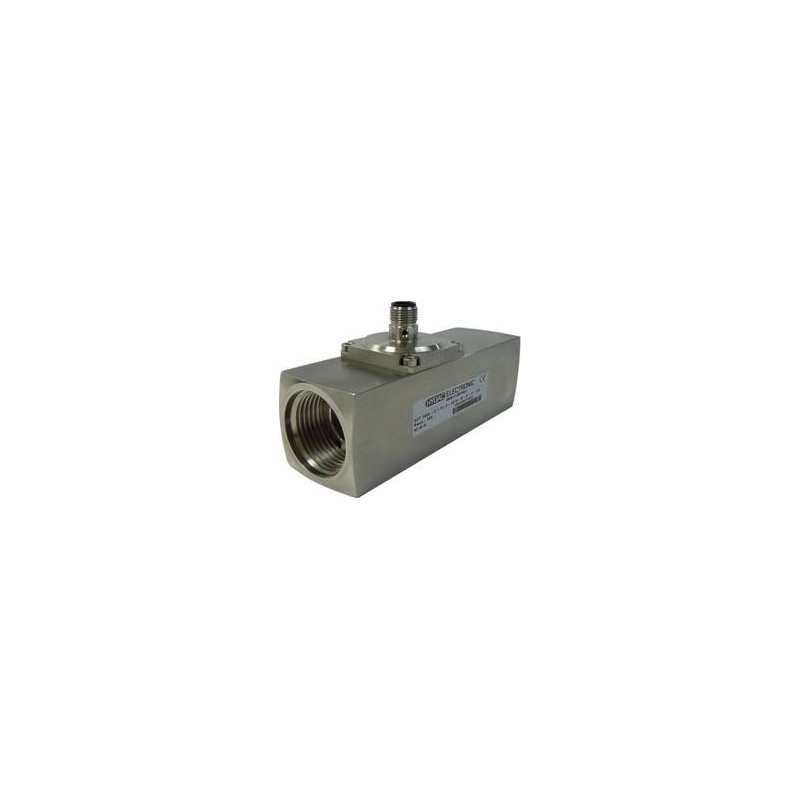

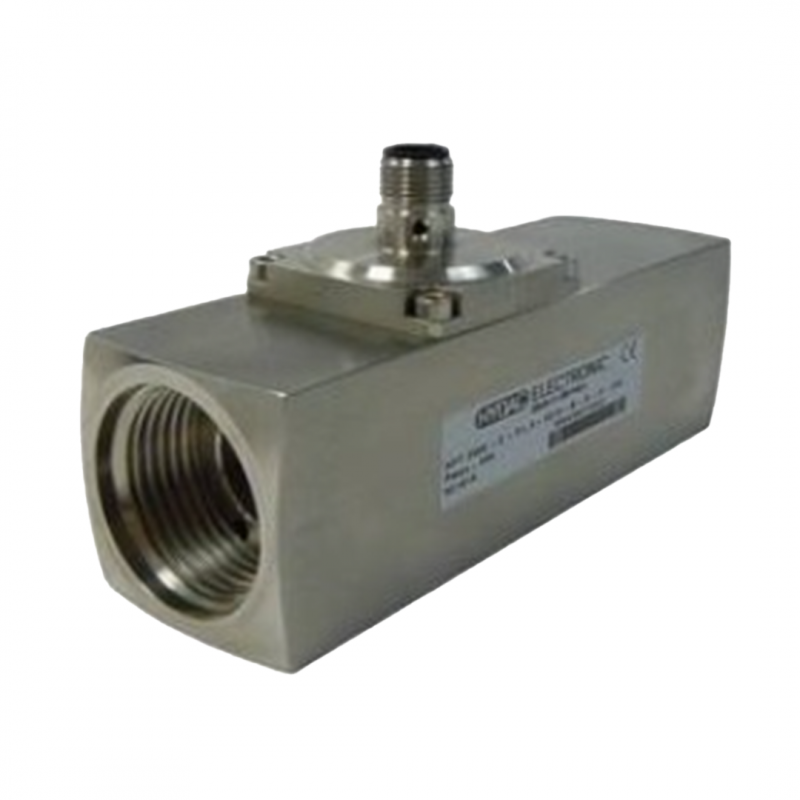

Hydac Electro-Machanical Flow Transmitter HFT 2100 for Oils / Viscous Fluids
The electro-machanical flow transmitter HFT 2100 for oils / viscous fluids is based on the variable area float principle
- Accuracy ≤ ± 10 % FS
- Viscosity compensation from 30 .. 600 cSt
Hydac Electro-Machanical Flow Transmitter HFT 2100 for Oils / Viscous Fluids
- Accuracy ≤ ± 10 % FS
- Viscosity compensation from 30 .. 600 cSt
- Any mounting position
- High level of functional safety
- High pressure resistance
- Threaded connection
The HFT 2100 series of HYDAC flow transmitters is based on the variable area float principle
The areas of application include:
- Central lubrication systems
- Oil circuit lubrication systems
- Transformers
- Cooling systems and circuits
- Lubrication circuits
- Hydraulic systems
- Pumps
- Welding machines and laser systems
- Chemical industry
- Research & development
Medium:
- Oils / viscous fluid
General Function:
Irrespective of the mounting position, the test medium moves a spring-loaded float in the direction of flow, depending on the flow rate. A Hall sensor, which detects the position of the float, is fitted to the outside of the instrument and is therefore separate from the flow circuit. In proportion to the deflection of thefloat, the sensor produces an analoguesignal which corresponds to the particular measuring range.
The device is calibrated for vertical installation and for an upwards flowdirection. The flow switch is designed to give reliable measurements within its accuracy range, even with changes in viscosity. The viscosity may fluctuatebetween 30 and 600 cSt
