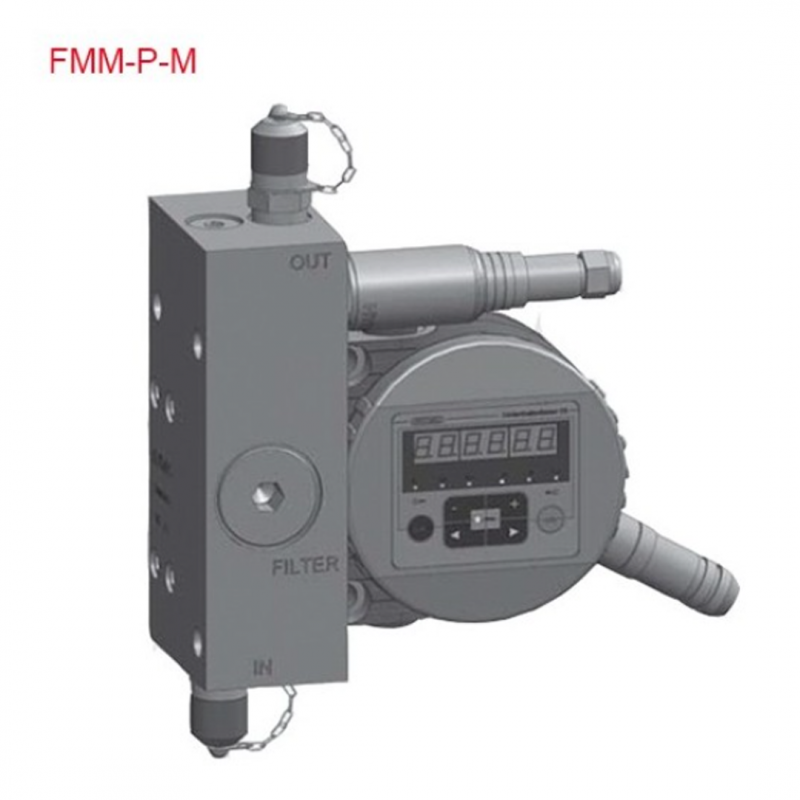

Hydac Fluid Monitoring Module Type FMM-P-M-0-CS1320-A-AS3-0-1-0-/-000
The HYDAC Fluid Monitoring Module FMM Series is a compact, stationary system for continuous monitoring of particle contamination and water saturation in hydraulic and lubrication fluids. Combining the CS 1000 and AS 1000 sensors, it enables early detection of critical machine conditions for improved reliability and maintenance planning.
Key Features:
- Max. operating pressure: 15 ... 300 bar
- Minimum differential pressure: 15 bar
- Permitted viscosity range: 1 ... 350 mm²/s
- Fluid temperature range 0 ... +85 °C / +32 ... +185 °F
Part Number | Material Number | No-Show | Price | Add to Parts List |
---|---|---|---|---|
FMMPM0CS1320-A-AS3-0-1-0-/-000 | 0 | On Enquiry |
HYDAC Fluid Monitoring Module Type FMM-P-M-0-CS1320-A-AS3-0-1-0-/-000
- Max. operating pressure: 15 ... 300 bar
- Minimum differential pressure: 15 bar
- Permitted viscosity range: 1 ... 350 mm²/s
- Fluid temperature range 0 ... +85 °C / +32 ... +185 °F
Advantages:
- Cost-effective installation
- Critical machine conditions are identified in good time
- Continuous oil condition monitoring
- Condition-based maintenance planning
General Function:
The Fluid Monitoring Module FMM series combines the Condition Monitoring products Contamination Sensor CS 1000 and AquaSensor AS 1000 from HYDAC in a single system. It serves the user as a robust and stationary system for online measurement of solid particle contamination and water saturation (e.g. for the detection of leakages) in hydraulic and lubrication fluids. The blocks of the FMM series are equipped with all necessary connections and are thus simple to integrate into existing hydraulic circuits. Types for filter-cooler/heater circuits, pressure and high-pressure applications are available to the user.
