Hydac Brazed Plate Heat Exchangers
HYDAC Brazed Plate Heat Exchangers deliver highly efficient heat transfer in a compact design, making them ideal for hydraulic systems, lubrication units, and test rigs. Constructed with stainless steel plates and copper or nickel brazing, they ensure turbulent flow for optimal performance and a self-cleaning effect. Suitable for pressures up to 30 bar and temperatures up to 200°C, they offer reliable operation across a wide range of industrial applications.
Key Features:
- Durable stainless steel with copper or nickel brazing
- Compact design for high pressure and temperature use
- Efficient heat transfer with self-cleaning flow
HYDAC Brazed Plate Heat Exchangers

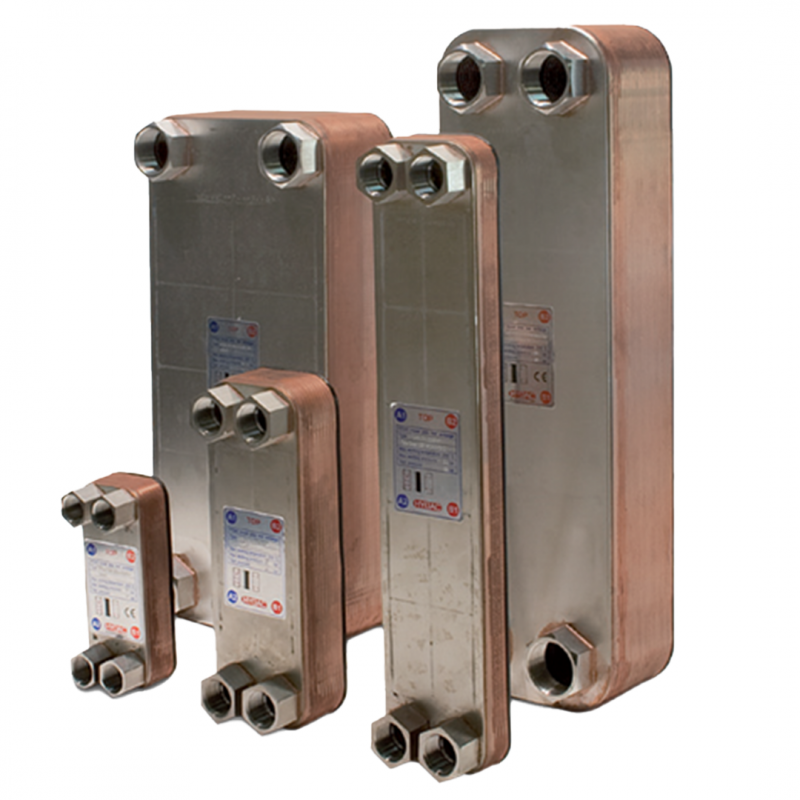

Brazed plate heat exchangers are comprised of a number of moulded stainless steel plates which are vacuum-brazed with copper or nickel.
The special moulding of the plates ensures a turbulent flow which is necessary for an optimum heat transfer and which furthermore brings about a self-cleaning effect, because deposits on the surface are reduced by the high level of wall friction.
- Max. operating pressure: 30 bar (nickel-brazed version up to 10 bar possible)
- Temperature range: up to 200°C
A plate heat exchanger can be used wherever there should be heat transfer between two media
Typical applications are:
- Hydraulic systems
- Presses
- Lubrication systems
- Test rigs
- Motors / engines
The design and construction of the brazed plate heat exchangers are particularly compact and efficient. The heat transfer plates are made in stainless steel and are brazed with copper as standard. For use with aggressive media, nickel braze can also be used
