Roemheld Hydro-pneumatic Pump Units - ROEMHELD D8.600

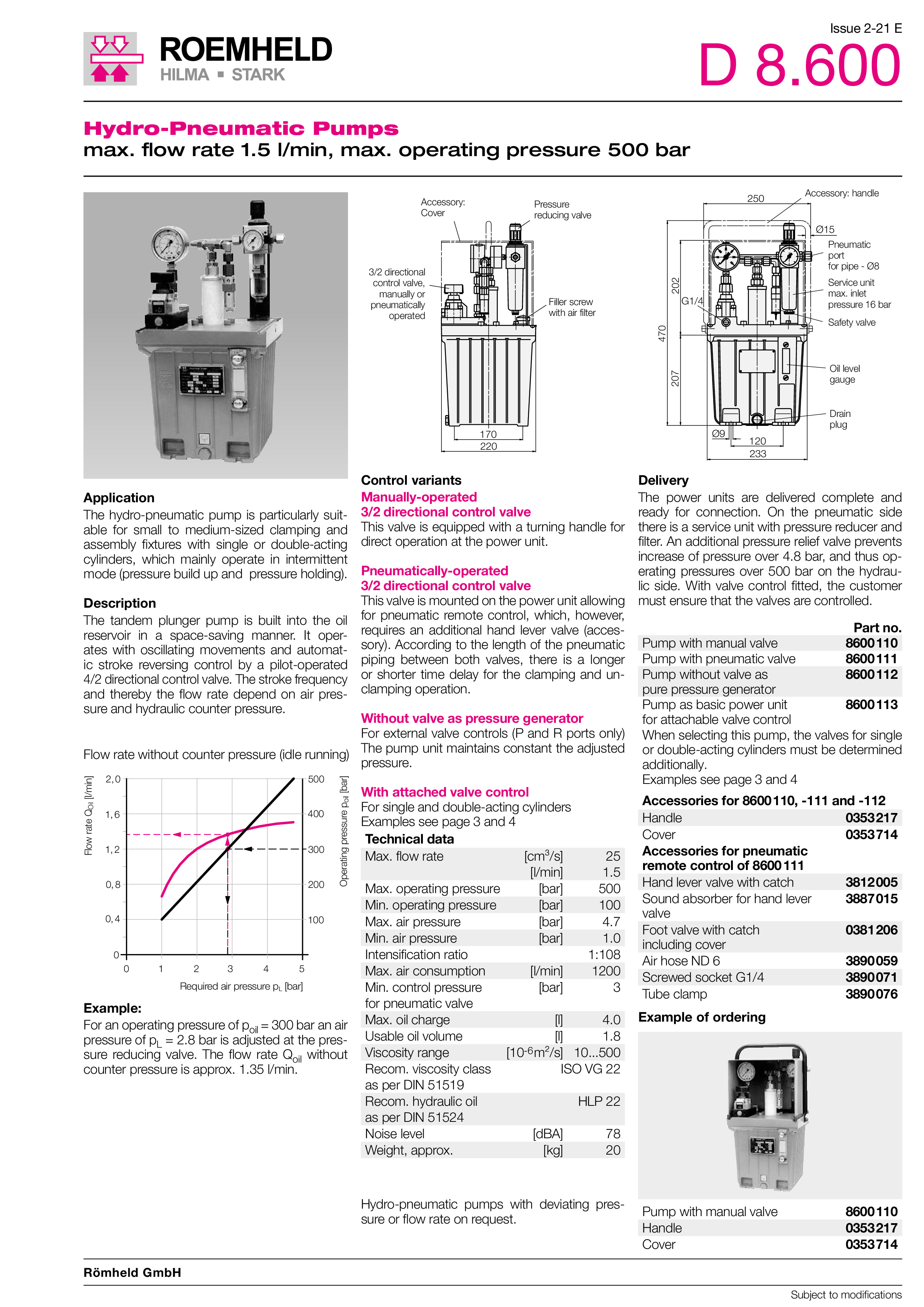

ROEMHELD D8.600 Hydro-pneumatic pump units particularly suitable for small to medium-sized clamping and mounting devices
- Flow rate is 1.5 l/min
- Minimum operating pressure: 100 bar
- Maximum air pressure 4.5 bar
- Minimum control pressure for pneumatic valve 3 bar
- Maximum air consumption 1200 l/min intensification ratio: 1:108
- Reservoir volume: approx. 4.0
- Usable oil volume: approx. 1.8
- Hydraulic connection: G 1/4
The tandem plunger pump is built into the oil reservoir in a space-saving manner. It operates with oscillating movements and automatic stroke reversal control by a pilot-operated 4/2 valve. The stroke frequency, and consequently the delivery flow rate depend on the air pressure and the hydraulic counterpressure.
Hydro-pneumatic Pump Units - ROEMHELD D8.600
- Flow rate: 1.5 l/min
- Min. operating pressure: 100 bar
- Max. air pressure 4.5 bar
- Min. control pressure for pneumatic valve 3 bar
- Max. air consumption 1200 l/min intensification ratio: 1:108
- Reservoir volume: approx. 4.0
- Usable oil volume: approx. 1.8
- Hydraulic connection: G 1/4
Application:
The hydraulic clamping pump is particularly suitable for small to medium-sized clamping and mounting devices having single-acting cylinders which operate primarily by intermittence (pressure build-up and pressure holding).
Description:
The tandem plunger pump is built into the oil reservoir in a space-saving manner. It operates with oscillating movements and automatic stroke reversal control by a pilot-operated 4/2 valve. The stroke frequency, and consequently the delivery flow rate depend on the air pressure and the hydraulic counterpressure.
