Portable Intensifier System M-HC7 (up to 800 bar)

Minibooster Portable Intensifier System M-HC7 (up to 800 bar)

Dimensions:

• Height: 321mm
• Width: 146 mm
• Length: 315 mm
• Weight: 10 kg

Mounting options:

The M-HC7 intensifier system can be tailor made to match your application with following options. Please send us application needs for a proposal.

• Manifold block in Steel PP-805 (for use in hazardous areas, mining and offshore applications)
• Electrical clogging indicator FIL-NG6-CIE
• Electrical solenoid valve (for remote control)
• Flow control valve PA-9F400-S (to reduce the flow - returning a dual acting cylinder)
• Low pressure gauge 0 – 250 bar

Description:

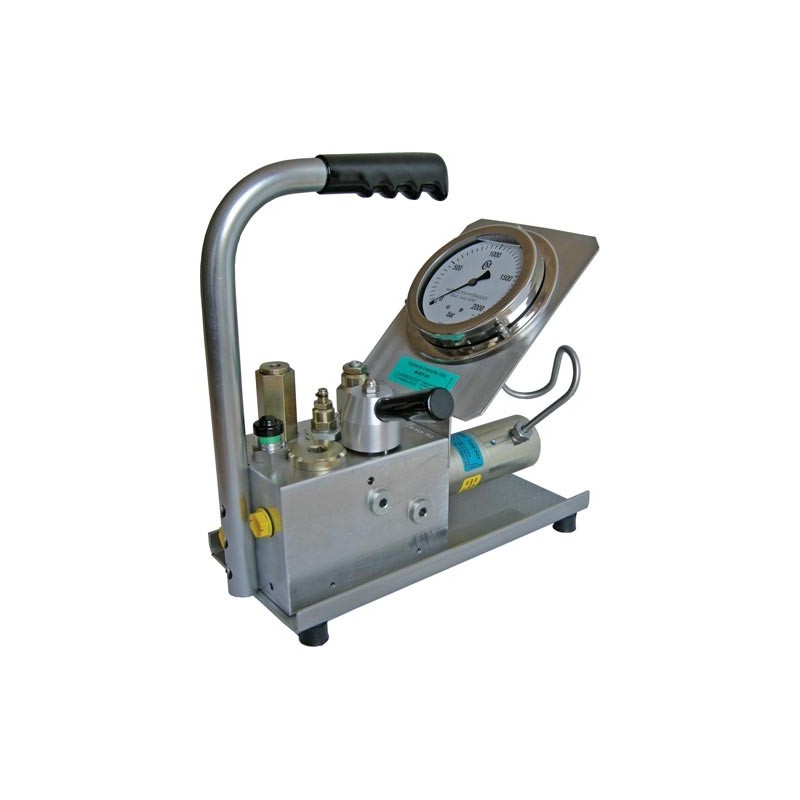

The miniBOOSTER M-HC7 Portable Intensifier System is a rugged unit designed for demanding industrial applications.

The M-HC7 can be used with any low-pressure (20 to 200 bar) power source providing a minimum flow of 2 lpm. Output pressure as high as 800 bar.

Reliability is a primary design consideration. The M-HC7 is equipped with a 10-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.

Portability and ease of operation:

With a weight of only 10 kg and a convenient lifting handle, the M-HC7 can be easily carried to where it is needed.

The M-HC7 operates from an existing low pressure hydraulic supply. No additional utilities are required. All controls are incorporated into the unit provide simple and reliable performance.

Time is money: The M-HC7 can deliver up to 15 lpm and is designed to ensure that system capacity is directed to your process until intensification is required. Cycle times are minimized.

Many applications require that the unit provide exceptional accuracy. The M-HC7 is proven with an easy-to-read 4” diameter pressure gauge to permit accuracy to be controlled within 1%.
