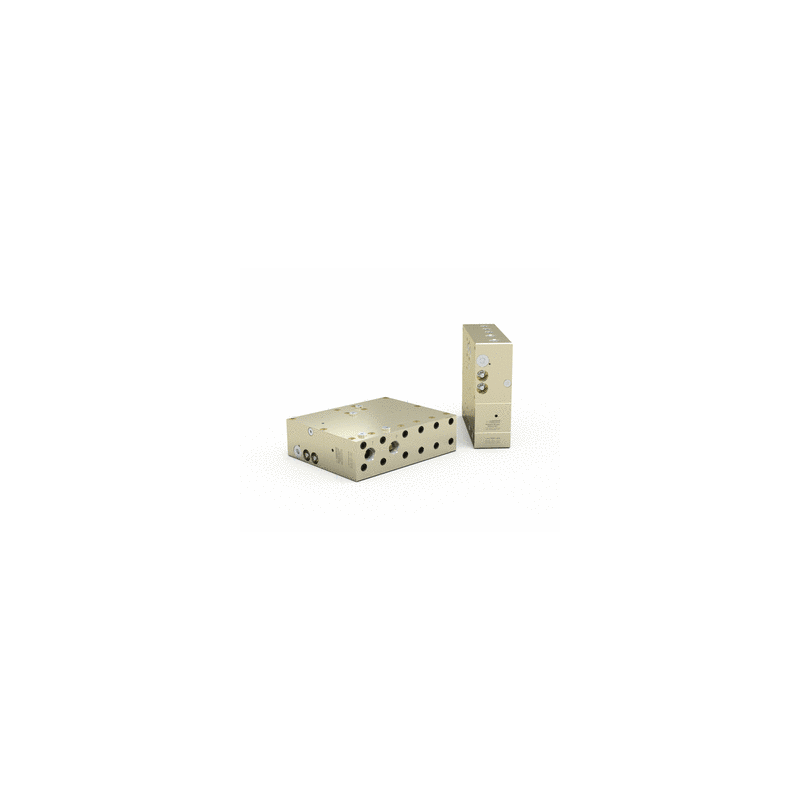

Minibooster HC63-013
HC63-013: 9 different intensification factors
- Automatic activated (sequence valve)
- High pressure – up to 800 bar (11,600 psi)
- Fast fill – system flows up to 300 l/min
- Max inlet pressure = 345 bar
| Part Number | Material Number | Intensification Factor | Dump Valve | Connection | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| HC63 - 013 - 1.2 - A - 1 | 1.2 | A | 1 | On Enquiry | ||
| HC63 - 013 - 1.5 - A - 1 | 1.5 | A | 1 | On Enquiry | ||
| HC63 - 013 - 2.0 - A - 1 | 2.0 | A | 1 | On Enquiry | ||
| HC63 - 013 - 2.5 - A - 1 | 2.5 | A | 1 | On Enquiry | ||
| HC63 - 013 - 3.3 - A - 1 | 3.3 | A | 1 | On Enquiry | ||
| HC63 - 013 - 4.0 - A - 1 | 4.0 | A | 1 | On Enquiry | ||
| HC63 - 013 - 4.9 - A - 1 | 4.9 | A | 1 | On Enquiry | ||
| HC63 - 013 - 6.3 - A - 1 | 6.3 | A | 1 | On Enquiry | ||
| HC63 - 013 - 8.2 - A - 1 | 8.2 | A | 1 | On Enquiry |
Minibooster HC63-013
- Extended service life
- Robust design
- Flexible design–several boosters / intensification ratios
- Switch from by-pass to intensified flow
- Adjustable outlet pressure
- Mounting: Inline tube or flanged
A Model = Without Dump Valves
B Model = With Dump Valves
G Model = Direct Proportionally Controlled
Description:
HC63-013 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
The system is dynamical by means of being able to provide flow at high pressure.
The function of the system is simple, but smart. The hydraulic oil is by-passed directly from the pump to the workload at maximum flow when back pressure from the workload has reached a set point close to the maximum pressure of pump.
A sequence valve opens and directs the oil to the booster, which makes the pressure rise. The shift between maximum pump pressure and high pressure happens without intervention from the user and ensures that the workload at all times will be driven at a maximum speed in relation to the required high pressure.
A relief valve is installed to control the maximum allowable pressure the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.
Typical Applications:
Mobile attachments (motors - steering systems - cutters - crushers - shears), off highway equipment, injection molding machines and hydraulic presses. Applicable to machines with insufficient pump capacity to prevent machine stoppage when peak pressures occur.
