Roemheld Lifting Module Solid M4.402

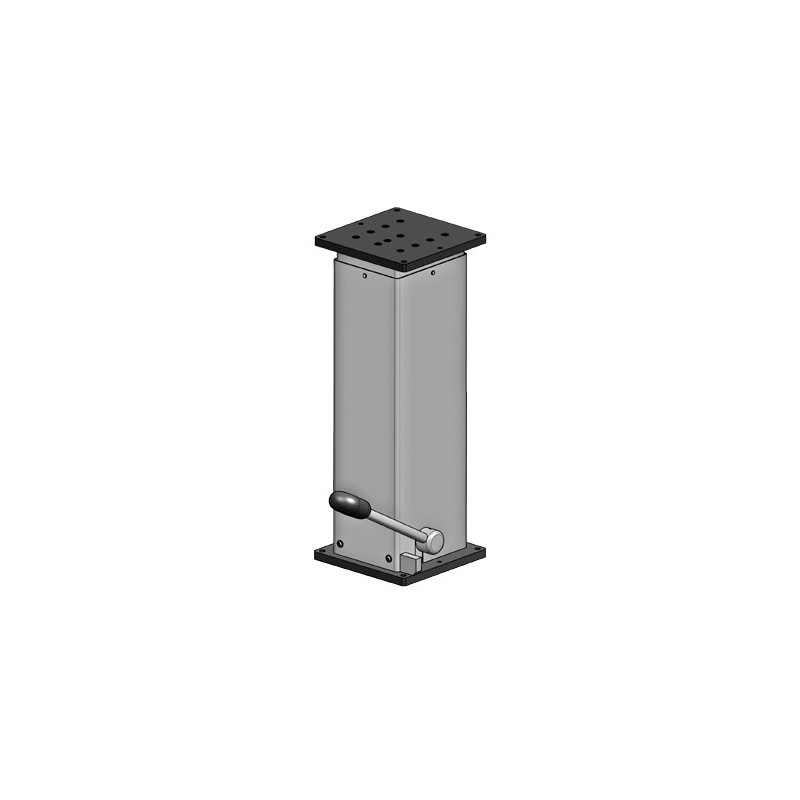

Lifting Module Solid

ROEMHELD M4.402 Solid Lifting Modules for high demands on performance and service life in the industrial assembly

  • Max. lifting force 4,000 and 6,000 N
  • Stroke from 200 to 400 mm
  • Max. bending moment: 1000 Nm
  • Operation: foot pedal
  • Pump strokes per 100 mm: 7 - 9
Print page

Description
Downloads
M4402 en 0916
M4402_en_0916

Lifting Module Solid - ROEMHELD M4.402

  • Max. lifting force 4,000 and 6,000 N
  • Stroke from 200 to 400 mm
  • Manual-hydraulic version
  • Max. bending moment: 1000 Nm
  • Operation: foot pedal
  • Pump strokes per 100 mm: 7 - 9

Advantages:

  • Displacement with low friction is also given with high torque load
  • High load by roller guiding element with high section modulus
  • Sturdy and tough
  • Compact design
  • Safe and precise handling
  • Checked in compliance with DIN EN 1570 with quadruple static overload
  • Better working with lower load
  • Integrated stop for pedal

Application:

Lifting modules for high demands on performance and service life in the industrial assembly.

Principal use:

  • Ergonomic design of working places
  • Industrial production plants
  • Automotive industry
  • Assembly of car seats
  • Assembly of drive components, axes and cardan shafts
  • Assembly of compressors, hydraulic components and pumps
  • Assembly of turbines, motors and gear boxes
  • Applications with frequent load changes

Manual-hydraulic version:

The lifting module has an integrated roller guiding element. This allows a backlash-free guiding system with very good smooth running and the introduction of high moments into the lifting module. The guiding system is lifetime lubricated. To obtain high robustness, all components are made of high-quality materials. Characteristic are applications with indifferent, dynamically swelling rotating motions and shock motions.

Manual-hydraulic version operation with foot pedal:

The stroke movement is obtained by a manual- hydraulic lifting drive with single-lever actuation, with oil being pumped by means of a piston pump into a plunger cylinder. During retraction, the oil returns due to the weight of the load from the cylinder back to the reservoir. A defined speed control is effected. The manual-hydraulic version is particularly sturdy and durable. This variant meets high safety demands and withstands jerking and knocking loads in applications.
