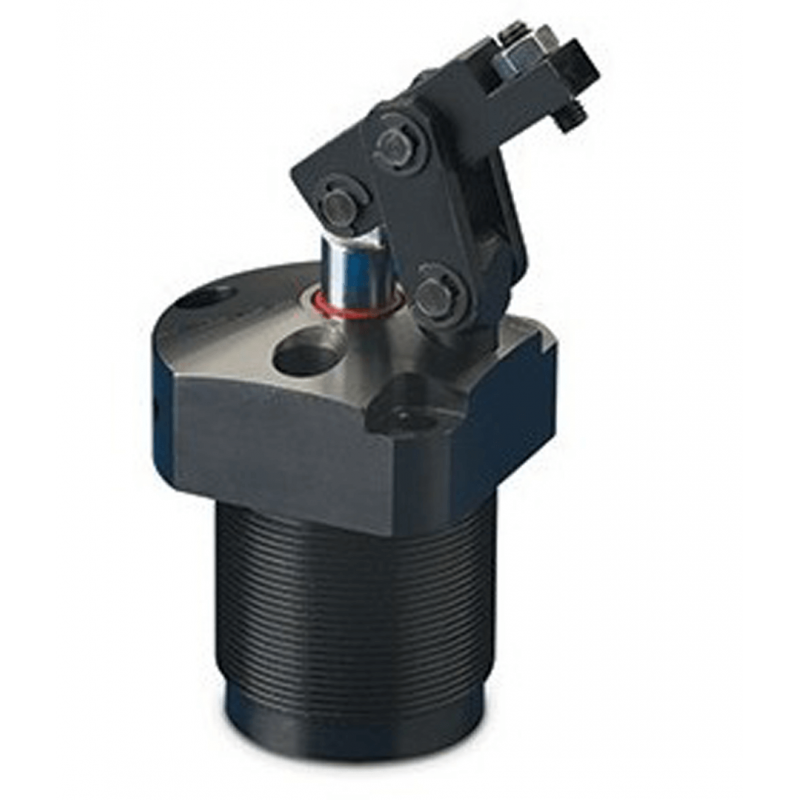

Enerpac LU-Series Hydraulic Link Clamps

Enerpac LU-Series Hydraulic Link Clamps

• Force: 3,0 - 12,0 kN
• Stroke: 18,5 - 29,8 mm
• Pressure: 35 -350 bar

Link clamp allows unobstructed part loading and high clamping forces. The hydraulic cylinders extend to provide clamping force, and retract to allow part removal

Features:

• Enerpac link clamps consistently deliver a quick and accurate clamping action
• Hydraulic cylinder pushes linkage, rotating clamp arm into position
• Design ensures repeatable clamping location
• Linkage can be re-positioned to clamp at 90, 180, or 270 degrees from ports
• Link clamps can be mounted using the supplied bolts or held in place with a flange nut
• Standard or long clamp arm or long arm sold separately
