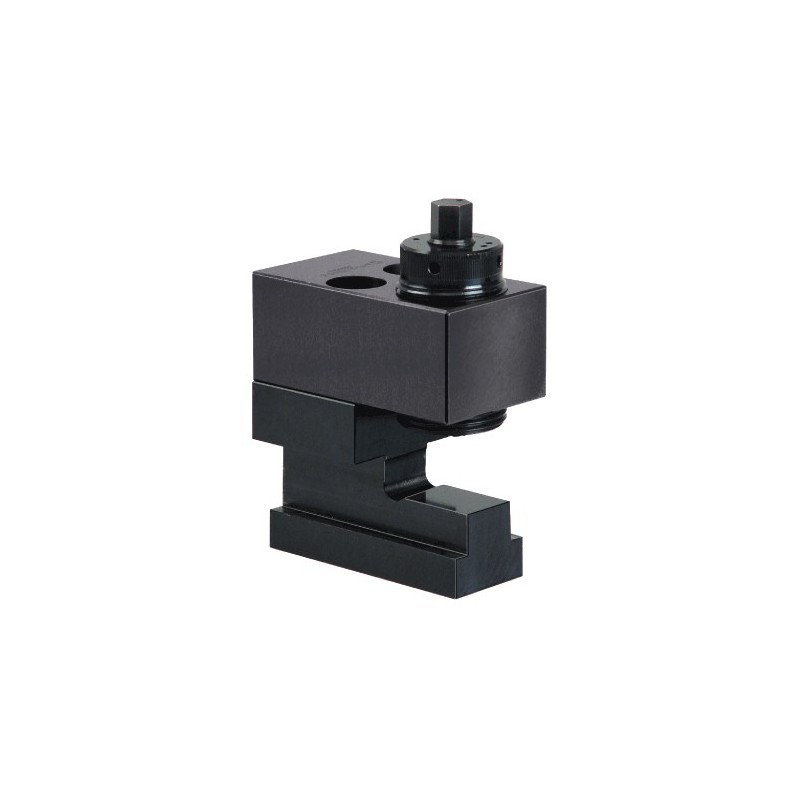

Mechanical Sliding Clamp
HILMA WZ 6.2210 Sliding Clamps, Mechanical with integral high-pressure spindle
- T-slot as per DIN 650 18, 22 and 28 mm
- Clamping force: 40 and 80 kN
- Clamping stroke: 1.5 - 2.2 mm
- Max. tightening torque: 45 - 90 Nm
- Max. travelling path: 30 - 35 mm
Mechanical Sliding Clamp - HILMA WZ 6.2210
- T-slot as per DIN 650 18, 22 and 28 mm
- Clamping force: 40 and 80 kN
- Clamping stroke: 1.5 - 2.2 mm
- Max. tightening torque: 45 - 90 Nm
- Max. travelling path: 30 - 35 mm
Advantages:
- Easy to retrofit
- Temperature resistance up to 250 °C
- Compact design
- Simple operation
- High clamping force with low torque
- Clamping force 40 kN and 80 kN
- Large clamping edge tolerances are possible
- Self-locking due to patented wedge system
- Die standardisation with regard to the width and depth is not required
Application:
- Clamping and locking of dies on press bed and ram
- On machine tool tables
- When the available space is limited
Description:
The sliding clamp is manually placed in the T-slots and screwed against the die clamping edge. Once the high-pressure spindle has been adjusted to suit the height of the clamping edge, the clamping force is built up by turning the hexagon nut (SW 1) in a clockwise direction. The clamping force achieved depends on the set tightening torque of the torque wrench. The clamping block can also be directly screwed without T-slot adapter and can be ordered separately. When using the clamping block without T-slot adapter, the high-pressure spindle is to be manually screwed against the clamping edge so that there is no play.
