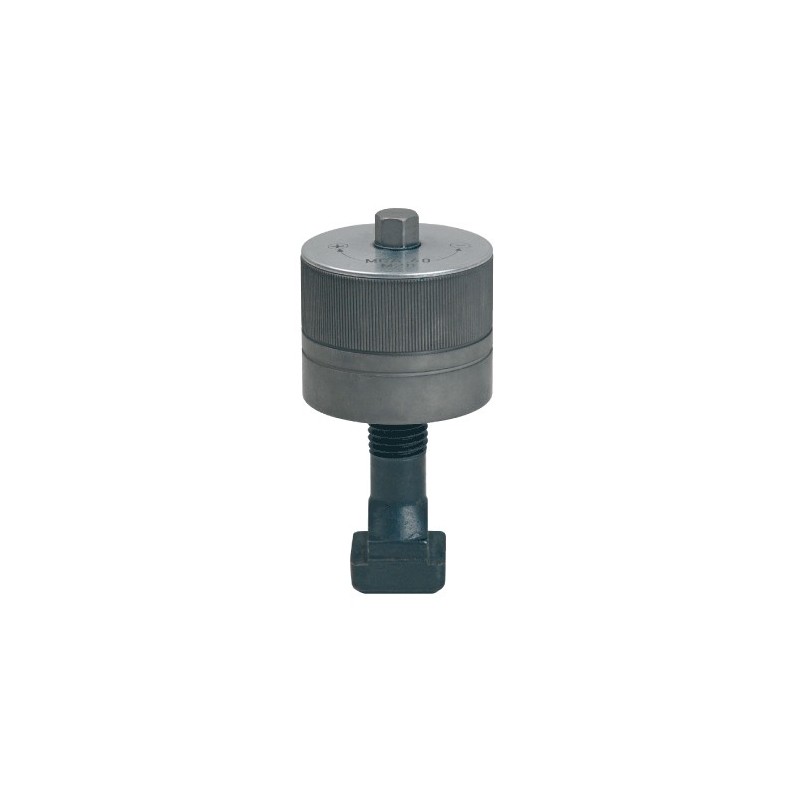

Hilma Mechanical Clamping Nut WZ 6.2275

Mechanical Clamping Nut with Blind Hole Thread

HILMA WZ 6.2275 Clamping Nut, Mechanical with blind hole thread, without clamping force display

  • T-slot DIN 650: 18 - 42 mm
  • Clamping force: 60 - 200 kN
  • Max. tightening torque: 25 - 90 Nm
Print page

Description
Downloads
WZ62275 en 1216
GB_06_2275

Mechanical Clampign Nut - HILMA WZ 6.2275

  • T-slot DIN 650: 18 - 42 mm
  • Clamping force: 60 - 200 kN
  • Max. tightening torque: 25 - 90 Nm

Advantages:

  • Temperature resistance up to 200 °C
  • High clamping force with low torque
  • Easy to retrofit
  • Easy clamping and unclamping by hand
  • Hydraulic-free and maintenance-free clamping
  • Maximum force density in the smallest space

Application:

  • Clamping and locking of dies on press bed and ram
  • When highest clamping force is required in the smallest possible space
  • If no hydraulic power unit is available
  • Where oil-free clamping is desired

Description:

Following manual positioning of the clamping nut against the clamping edge, the integral planetary gear will be operated by turning the hexagon nut. As a result of the gear transmission, the tightening torque is multiplied. To reliably ensure the required clamping force, we recommend using a torque wrench.
Temperature range: – 30 °C to + 200 °C
