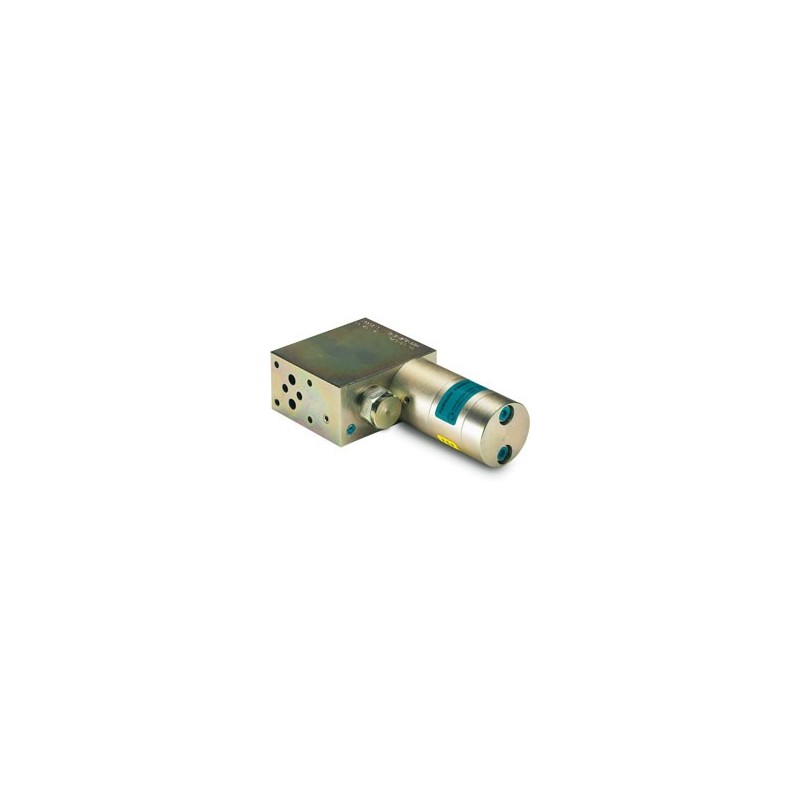

Minibooster HC3-C
HC3-C: 11 different intensification factors
- PIN: 20 - 207 bar (inlet pressure)
- PH: 500 bar maximum (outlet pressure)
- PRETURN: As low as possible (Return pressure to tank)
- Intensification ratios: PH = (PIN - PReturn) i (Intensification)
- Mounting: NG6 (D03) stacking manifold system
| Part Number | Material Number | Intensification Factor | Dump Valve | Price | Add to Parts List |
|---|---|---|---|---|---|
| HC3 - 1.2 - A - C | 1.2 | A | On Enquiry | ||
| HC3 - 1.2 - G - C | 1.2 | G | On Enquiry | ||
| HC3 - 1.5 - A - C | 1.5 | A | On Enquiry | ||
| HC3 - 1.5 - G - C | 1.5 | G | On Enquiry | ||
| HC3 - 2.0 - G - C | 2.0 | G | On Enquiry | ||
| HC3 - 2.0 - A - C | 2.0 | A | On Enquiry | ||
| HC3 - 2.8 - A - C | 2.8 | A | On Enquiry | ||
| HC3 - 2.8 - G - C | 2.8 | G | On Enquiry | ||
| HC3 - 3.2 - A - C | 3.2 | A | On Enquiry | ||
| HC3 - 3.2 - G - C | 3.2 | G | On Enquiry | ||
| HC3 - 4.0 - A - C | 4.0 | A | On Enquiry | ||
| HC3 - 4.0 - G - C | 4.0 | G | On Enquiry | ||
| HC3 - 5.0 - G - C | 5.0 | G | On Enquiry | ||
| HC3 - 5.0 - A - C | 5.0 | A | On Enquiry | ||
| HC3 - 6.6 - A - C | 6.6 | A | On Enquiry | ||
| HC3 - 6.6 - G - C | 6.6 | G | On Enquiry | ||
| HC3 - 9.0 - A - C | 9.0 | A | On Enquiry | ||
| HC3 - 9.0 - G - C | 9.0 | G | On Enquiry | ||
| HC3 - 13.0 - A - C | 13.0 | A | On Enquiry | ||
| HC3 - 13.0 - G - C | 13.0 | G | On Enquiry | ||
| HC3 - 20.0 - G - C | 20.0 | G | On Enquiry | ||
| HC3 - 20.0 - A - C | 20.0 | A | On Enquiry |
Minibooster HC3-C
A model = no dump valve
G model = direct proportionally controlled
Description:
The HC3 - C, a variant of the HC3, for applications with larger flow rates, providing a fast response with build in by-pass up to 50 l/min. It is a compact unit weighing only 4.0 kg, designed for use in NG6 (D03) stacking manifold systems. Maximum outlet pressure is 350 bar in standard versions. An adjustment of the outlet pressure is carried out by varying the supplied pressure.
General Functions:
When pump pressure is reached on the A port, check valve (b) will close and the oil will flow via the Orifice (a) to the oscillating pump unit OP. The end pressure will be achieved by the oscillating pump OP. The unit will automatically stall when end pressure on high-pressure side is reached. If a pressure drop on high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
