Press-in Device C-Frame Design - ROEMHELD P1.201
ROEMHELD P1.201 Press-in Devices, preferably used in assembly processes for the production of pressed and/or riveted joints, as well as pressing out and testing components.
- Max. press-in force: 7/25/55/100 kN
- Stroke: 100/200/300/400 mm
- Clear depth 330 mm
- Clear height: 300 - 680 mm
- Operation: two-hand operation
This item is now Obsolete- For Presses see Enerpac Hydraulic Presses - HYQUIP Limited or CONTACT HYQUIP with your bespoke requirements FORM.
Press-in Device C-Frame Design - ROEMHELD P1.201
- Max. press-in force: 7/25/55/100 kN
- Stroke: 100/200/300/400 mm
- Clear depth 330 mm
- Clear height: 300 - 680 mm
- Operation: two-hand operation
Description:

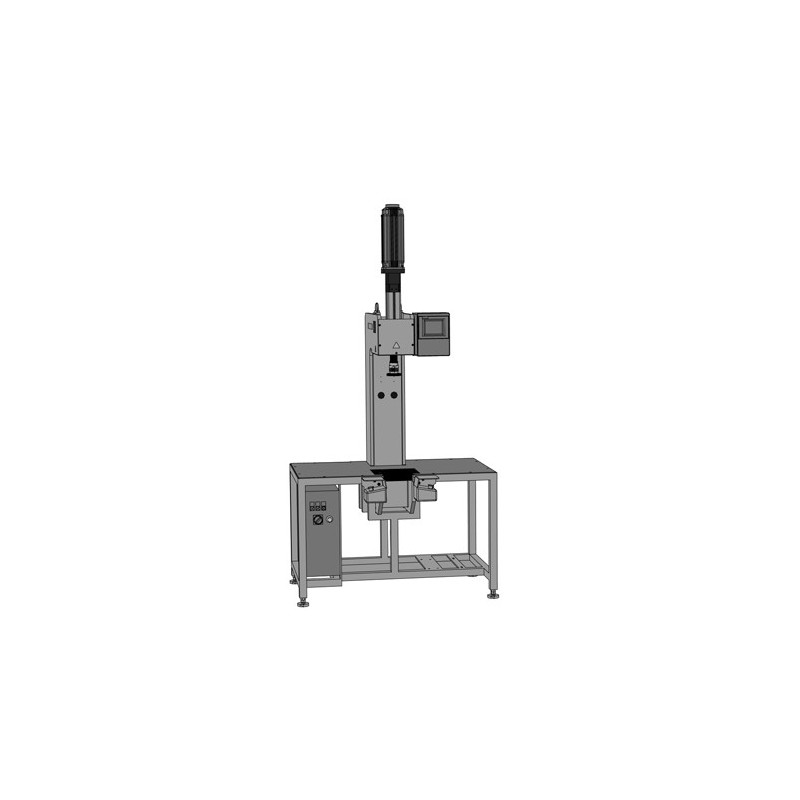

ROEMHELD C-Frame Design Press-in Devices are preferably used in assembly processes for the production of longitudinal pressed joints, riveted joints as well as for pressing out and testing of component.
The base frame is designed as a working table. Below the table plate there is the electric control that controls the electrical press-in cylinder at the C-frame. The steel base plate of the C-frame is installed flush with the table plate in the working table, so that the working surface is plane and edges are avoided. On the base plate any workpiece carriers such as sliding tables can be mounted. The piston rod of the press-in cylinder is equipped with a quick-changing device, at which the press-in tools can be mounted. This can optionally be replaced by other tool holders.
