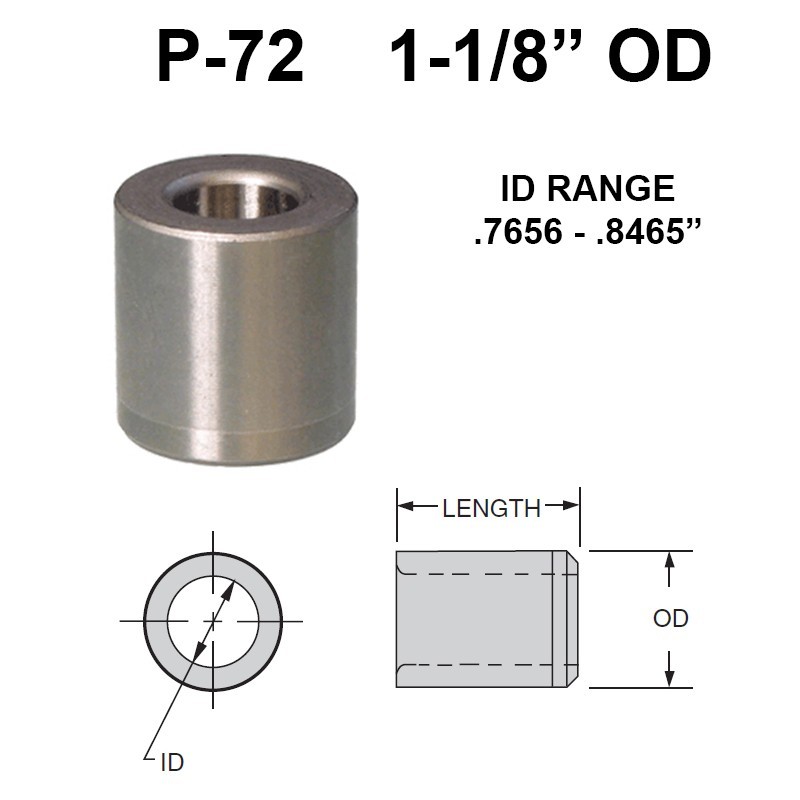

Carr Lane Press Fit Bushings 1-1/8 OD

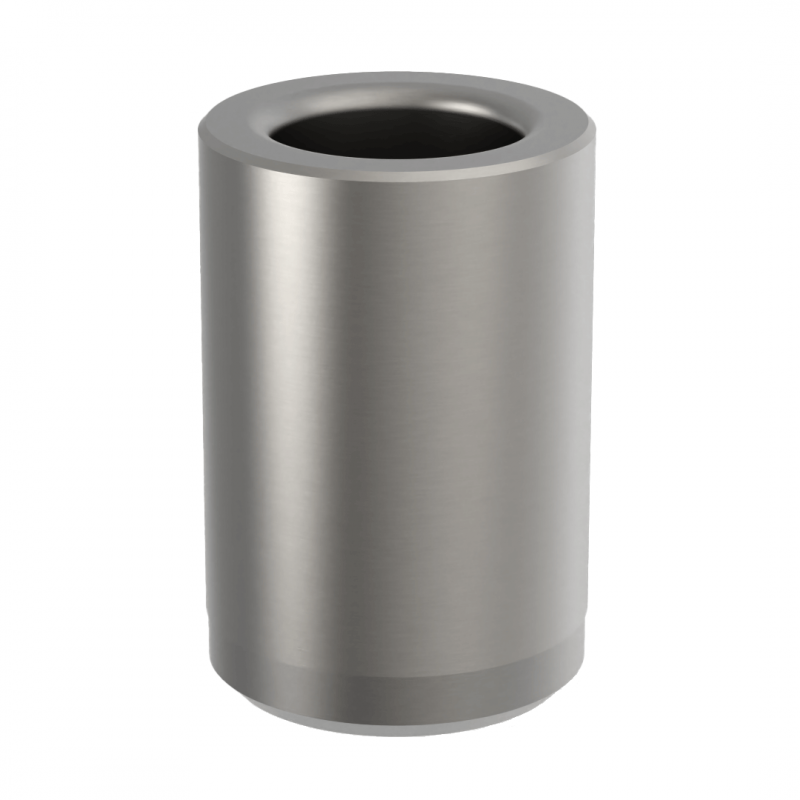

Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.

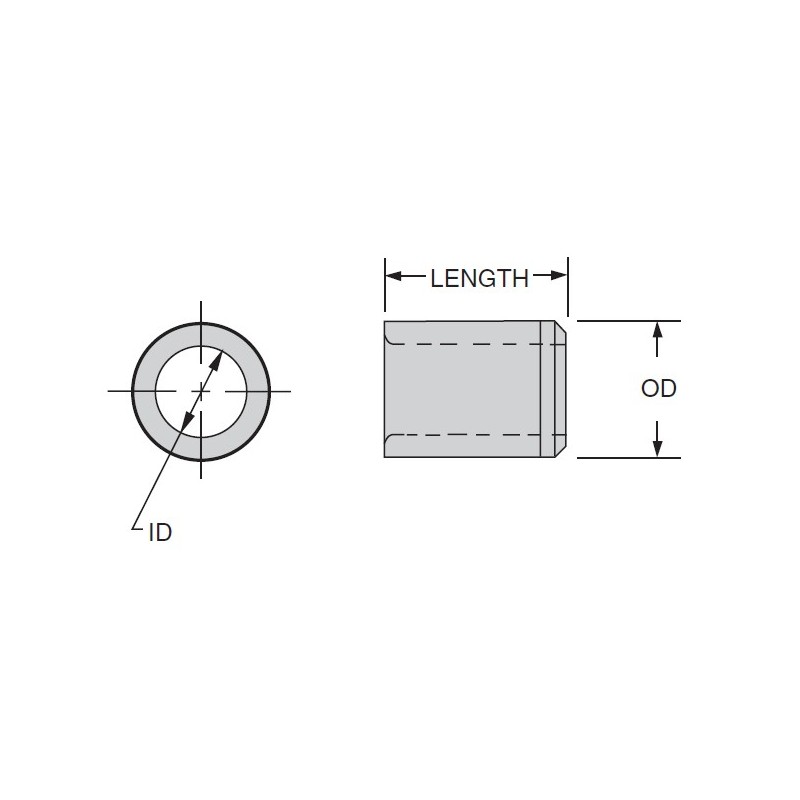

- OD - 1-1/8"
- ID RANGE - .7656 - .8465"
- Imperial sizes available with a variety of Lengths
Products
Downloads
Description
| Part Number | Material Number | Length | ID | Unground | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| P-72-10-.8125 | 5/8 | .8125 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.7874 | 5/8 | .7874 | Yes | On Enquiry | ||
| P-72-10-.8268 | 5/8 | .8268 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.7969 | 5/8 | .7969 | Yes | On Enquiry | ||
| P-72-10U-.8071 | 5/8 | .8071 | Yes | On Enquiry | ||
| P-72-10-.7656 | 5/8 | .7656 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10-.8281 | 5/8 | .8281 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10-.8438 | 5/8 | .8438 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.8125 | 5/8 | .8125 | Yes | On Enquiry | ||
| P-72-10-.7677 | 5/8 | .7677 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10-.8465 | 5/8 | .8465 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.8268 | 5/8 | .8268 | Yes | On Enquiry | ||
| P-72-10-.7812 | 5/8 | .7812 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10-.7874 | 5/8 | .7874 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.7656 | 5/8 | .7656 | Yes | On Enquiry | ||
| P-72-10U-.8281 | 5/8 | .8281 | Yes | On Enquiry | ||
| P-72-10-.7969 | 5/8 | .7969 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.7677 | 5/8 | .7677 | Yes | On Enquiry | ||
| P-72-10U-.8438 | 5/8 | .8438 | Yes | On Enquiry | ||
| P-72-10-.8071 | 5/8 | .8071 | No | £23.44 £28.13 Inc. VAT |
|
|
| P-72-10U-.7812 | 5/8 | .7812 | Yes | On Enquiry | ||
| P-72-10U-.8465 | 5/8 | .8465 | Yes | On Enquiry | ||
| P-72-12-.8281 | 3/4 | .8281 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.8071 | 3/4 | .8071 | Yes | On Enquiry | ||
| P-72-12-.7656 | 3/4 | .7656 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12-.7677 | 3/4 | .7677 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12-.8438 | 3/4 | .8438 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.8125 | 3/4 | .8125 | Yes | On Enquiry | ||
| P-72-12-.7812 | 3/4 | .7812 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12-.8465 | 3/4 | .8465 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.8268 | 3/4 | .8268 | Yes | On Enquiry | ||
| P-72-12-.7874 | 3/4 | .7874 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.7656 | 3/4 | .7656 | Yes | On Enquiry | ||
| P-72-12U-.8281 | 3/4 | .8281 | Yes | On Enquiry | ||
| P-72-12-.7969 | 3/4 | .7969 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.7677 | 3/4 | .7677 | Yes | On Enquiry | ||
| P-72-12U-.8438 | 3/4 | .8438 | Yes | On Enquiry | ||
| P-72-12-.8071 | 3/4 | .8071 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.7812 | 3/4 | .7812 | Yes | On Enquiry | ||
| P-72-12U-.8465 | 3/4 | .8465 | Yes | On Enquiry | ||
| P-72-12-.8125 | 3/4 | .8125 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-12U-.7874 | 3/4 | .7874 | Yes | On Enquiry | ||
| P-72-12U-.7969 | 3/4 | .7969 | Yes | On Enquiry | ||
| P-72-12-.8268 | 3/4 | .8268 | No | £21.12 £25.34 Inc. VAT |
|
|
| P-72-16-.7812 | 1 | .7812 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16-.8465 | 1 | .8465 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.8268 | 1 | .8268 | Yes | On Enquiry | ||
| P-72-16-.7874 | 1 | .7874 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.7656 | 1 | .7656 | Yes | On Enquiry | ||
| P-72-16U-.8281 | 1 | .8281 | Yes | On Enquiry | ||
| P-72-16-.7969 | 1 | .7969 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.7677 | 1 | .7677 | Yes | On Enquiry | ||
| P-72-16U-.8438 | 1 | .8438 | Yes | On Enquiry | ||
| P-72-16U-.8465 | 1 | .8465 | Yes | On Enquiry | ||
| P-72-16-.8071 | 1 | .8071 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.7812 | 1 | .7812 | Yes | On Enquiry | ||
| P-72-16U-.7874 | 1 | .7874 | Yes | On Enquiry | ||
| P-72-16-.8125 | 1 | .8125 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16-.8268 | 1 | .8268 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.7969 | 1 | .7969 | Yes | On Enquiry | ||
| P-72-16-.7656 | 1 | .7656 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16-.8281 | 1 | .8281 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.8071 | 1 | .8071 | Yes | On Enquiry | ||
| P-72-16-.7677 | 1 | .7677 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16-.8438 | 1 | .8438 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-16U-.8125 | 1 | .8125 | Yes | On Enquiry | ||
| P-72-20U-.7677 | 1-1/4 | .7677 | Yes | On Enquiry | ||
| P-72-20U-.8438 | 1-1/4 | .8438 | Yes | On Enquiry | ||
| P-72-20-.7969 | 1-1/4 | .7969 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20-.8071 | 1-1/4 | .8071 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.7812 | 1-1/4 | .7812 | Yes | On Enquiry | ||
| P-72-20U-.8465 | 1-1/4 | .8465 | Yes | On Enquiry | ||
| P-72-20-.8125 | 1-1/4 | .8125 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.7874 | 1-1/4 | .7874 | Yes | On Enquiry | ||
| P-72-20-.8268 | 1-1/4 | .8268 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.7969 | 1-1/4 | .7969 | Yes | On Enquiry | ||
| P-72-20-.7656 | 1-1/4 | .7656 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20-.8281 | 1-1/4 | .8281 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.8071 | 1-1/4 | .8071 | Yes | On Enquiry | ||
| P-72-20-.7677 | 1-1/4 | .7677 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20-.8438 | 1-1/4 | .8438 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.8125 | 1-1/4 | .8125 | Yes | On Enquiry | ||
| P-72-20-.7812 | 1-1/4 | .7812 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20-.8465 | 1-1/4 | .8465 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.8268 | 1-1/4 | .8268 | Yes | On Enquiry | ||
| P-72-20U-.8281 | 1-1/4 | .8281 | Yes | On Enquiry | ||
| P-72-20-.7874 | 1-1/4 | .7874 | No | £27.66 £33.19 Inc. VAT |
|
|
| P-72-20U-.7656 | 1-1/4 | .7656 | Yes | On Enquiry | ||
| P-72-24-.8125 | 1-1/2 | .8125 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.7874 | 1-1/2 | .7874 | Yes | On Enquiry | ||
| P-72-24-.8268 | 1-1/2 | .8268 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.7969 | 1-1/2 | .7969 | Yes | On Enquiry | ||
| P-72-24-.7656 | 1-1/2 | .7656 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24-.8281 | 1-1/2 | .8281 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.8071 | 1-1/2 | .8071 | Yes | On Enquiry | ||
| P-72-24-.7677 | 1-1/2 | .7677 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24-.8438 | 1-1/2 | .8438 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.8125 | 1-1/2 | .8125 | Yes | On Enquiry | ||
| P-72-24U-.8268 | 1-1/2 | .8268 | Yes | On Enquiry | ||
| P-72-24-.7812 | 1-1/2 | .7812 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24-.8465 | 1-1/2 | .8465 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.7656 | 1-1/2 | .7656 | Yes | On Enquiry | ||
| P-72-24U-.8281 | 1-1/2 | .8281 | Yes | On Enquiry | ||
| P-72-24-.7874 | 1-1/2 | .7874 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24-.7969 | 1-1/2 | .7969 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.7677 | 1-1/2 | .7677 | Yes | On Enquiry | ||
| P-72-24U-.8438 | 1-1/2 | .8438 | Yes | On Enquiry | ||
| P-72-24-.8071 | 1-1/2 | .8071 | No | £30.04 £36.05 Inc. VAT |
|
|
| P-72-24U-.7812 | 1-1/2 | .7812 | Yes | On Enquiry | ||
| P-72-24U-.8465 | 1-1/2 | .8465 | Yes | On Enquiry | ||
| P-72-28-.7656 | 1-3/4 | .7656 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28-.8281 | 1-3/4 | .8281 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.8071 | 1-3/4 | .8071 | Yes | On Enquiry | ||
| P-72-28U-.8125 | 1-3/4 | .8125 | Yes | On Enquiry | ||
| P-72-28-.7677 | 1-3/4 | .7677 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28-.8438 | 1-3/4 | .8438 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28-.8465 | 1-3/4 | .8465 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.8268 | 1-3/4 | .8268 | Yes | On Enquiry | ||
| P-72-28-.7812 | 1-3/4 | .7812 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28-.7874 | 1-3/4 | .7874 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.7656 | 1-3/4 | .7656 | Yes | On Enquiry | ||
| P-72-28U-.8281 | 1-3/4 | .8281 | Yes | On Enquiry | ||
| P-72-28-.7969 | 1-3/4 | .7969 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.7677 | 1-3/4 | .7677 | Yes | On Enquiry | ||
| P-72-28U-.8438 | 1-3/4 | .8438 | Yes | On Enquiry | ||
| P-72-28-.8071 | 1-3/4 | .8071 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.7812 | 1-3/4 | .7812 | Yes | On Enquiry | ||
| P-72-28U-.8465 | 1-3/4 | .8465 | Yes | On Enquiry | ||
| P-72-28-.8125 | 1-3/4 | .8125 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.7874 | 1-3/4 | .7874 | Yes | On Enquiry | ||
| P-72-28-.8268 | 1-3/4 | .8268 | No | £32.76 £39.31 Inc. VAT |
|
|
| P-72-28U-.7969 | 1-3/4 | .7969 | Yes | On Enquiry | ||
| P-72-8-.7969 | 1/2 | .7969 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.7677 | 1/2 | .7677 | Yes | On Enquiry | ||
| P-72-8U-.8438 | 1/2 | .8438 | Yes | On Enquiry | ||
| P-72-8-.8071 | 1/2 | .8071 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.7812 | 1/2 | .7812 | Yes | On Enquiry | ||
| P-72-8U-.8465 | 1/2 | .8465 | Yes | On Enquiry | ||
| P-72-8-.8125 | 1/2 | .8125 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.7874 | 1/2 | .7874 | Yes | On Enquiry | ||
| P-72-8-.8268 | 1/2 | .8268 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.7969 | 1/2 | .7969 | Yes | On Enquiry | ||
| P-72-8-.7656 | 1/2 | .7656 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8-.8281 | 1/2 | .8281 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.8071 | 1/2 | .8071 | Yes | On Enquiry | ||
| P-72-8-.7677 | 1/2 | .7677 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8-.8438 | 1/2 | .8438 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.8125 | 1/2 | .8125 | Yes | On Enquiry | ||
| P-72-8U-.8268 | 1/2 | .8268 | Yes | On Enquiry | ||
| P-72-8-.7812 | 1/2 | .7812 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8-.8465 | 1/2 | .8465 | No | £24.83 £29.80 Inc. VAT |
|
|
| P-72-8U-.7656 | 1/2 | .7656 | Yes | On Enquiry | ||
| P-72-8U-.8281 | 1/2 | .8281 | Yes | On Enquiry | ||
| P-72-8-.7874 | 1/2 | .7874 | No | £24.83 £29.80 Inc. VAT |
|
Carr Lane Press Fit Bushings 1-1/8 OD
Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.
Options:
- OD - 1-1/8"
- ID RANGE - .7656 - .8465"
- Length - 1/2 - 1-3/4"
