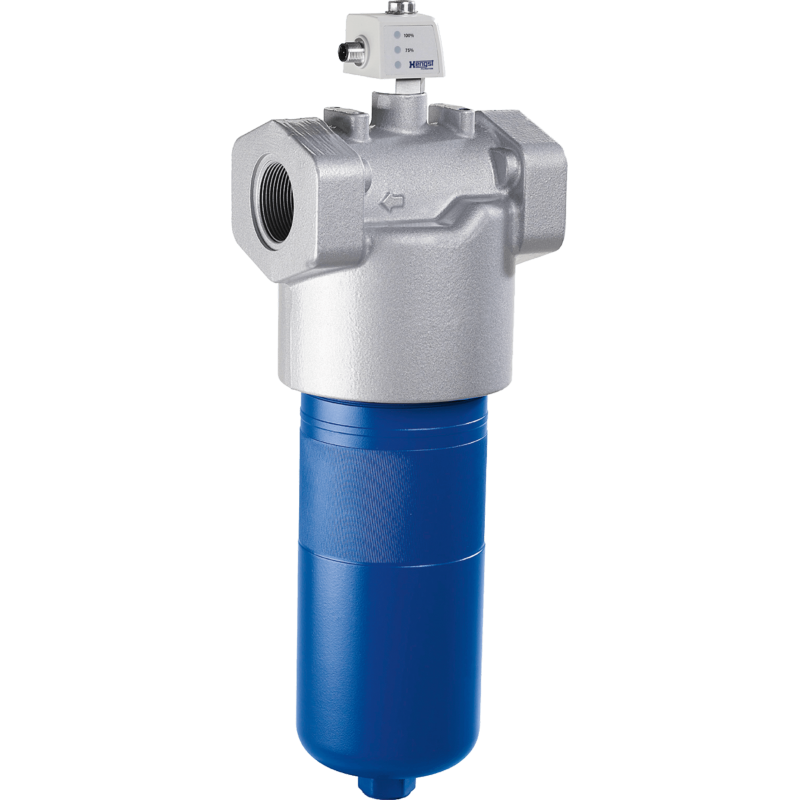

Hengst inline filter with filter element Type 350 LE(N)

Hengst inline filter with filter element Type 350 LE(N)

• Size as per DIN 24550: 0040 to 1000
• Other sizes: 0130, 0150
• Nominal pressure: 350 bar [5,079 psi]
• Connection sizes up to G2; SAE 2"; SAE 24
• Operating temperature: -10 °C to 100 °C [14 °F to 212 °F]

Features:

Inline filters are used in hydraulic systems for separating solid materials from fluids and lubricating oils.

They distinguish themselves by the following:

• Filter for inline installation
• Special, highly efficient filter materials
• Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
• High collapse rating of the filter elements
• Equipped standard with mechanical optical maintenance indicator with memory function
• Various, optional electronic switching elements,  modular design
• Optional bypass valve integrated in the filter housing
• High filtration performance due to tangential,  cyclonic flow path
• Additional configurations available for special fluids
