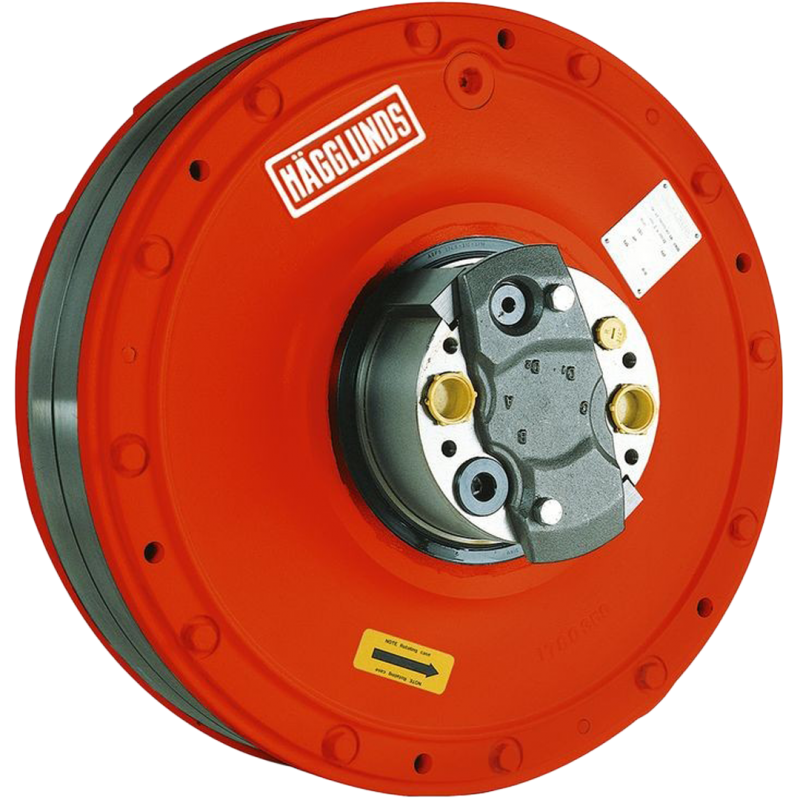

Bosch Rexroth Radial Piston Motors Hägglunds VI

Bosch Rexroth Radial Piston Motors Hägglunds VI

• Size 3300...38000
• Capacity 3325 to 38000 cm³/rotation
• Specific torque 53...605 Nm/bar
• Nominal speed 25...100 rpm
• Maximum operating pressure 320 bar

Features high torques:

• The Viking motor is a high-torque low speed motor, which can be mounted directly on a winch drum or to a shaft without intermediate gears. This presents many practical benefits which appeal to the users of the equipment

Variable speed control:

• The Viking can drive and brake in both directions with variable speed by smoothly controlling the flow of oil in the circuit

Severe environments:

• The Viking motor is designed to be highly resistant to severe working conditions and environments. The Viking has proven itself on board ships, in underwater applications, in explosive and chemically corrosive industrial environments, in extreme heat and freezing cold

High efficiency:

• The mechanical efficiency as well as the starting efficiency is 97%. Because of the extremely low moment of inertia the motor is virtually insensitive to shock loads, and protects the driven equipment. Viking is still the best tension control motor available

Low speeds:

• Smooth, low speed performance from zero to rated speed without the need of reduction gears and no compromise on output torque

Safety:

• For cranes and hoists Viking motors and brake assemblies are DNV approved. You don`t need to take risks
