Rapid Clamping System with Mechanical Lock

Hilma Rapid Clamping System with Mechanical Lock

• Clamping force: 100 kN
• Max. operating pressure: 80 bar
• Max. stroke: 8 mm
• Positioning stroke: 3 mm
• Max. clamping stroke: 4 mm

Application:

For clamping dies on the ram if the clamping force must be maintained by self-locking in the event of a hydraulic pressure drop.

Function:

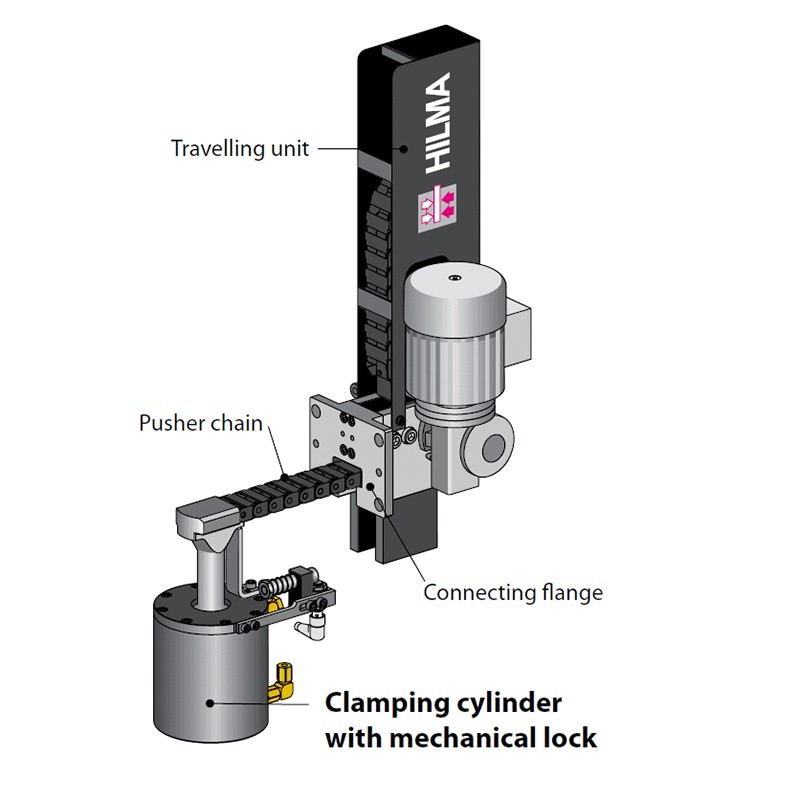

The rapid clamping system moves the clamping element automatically into its clamping position. Pressure is applied to port A, the pull-type clamping element moves towards the clamping edge. Once the clamping element has come in contact with the die clamping surface, the maximum clamping power is applied, and the clamping element locks mechanically.
