Flexline Rapid Clamping Systems

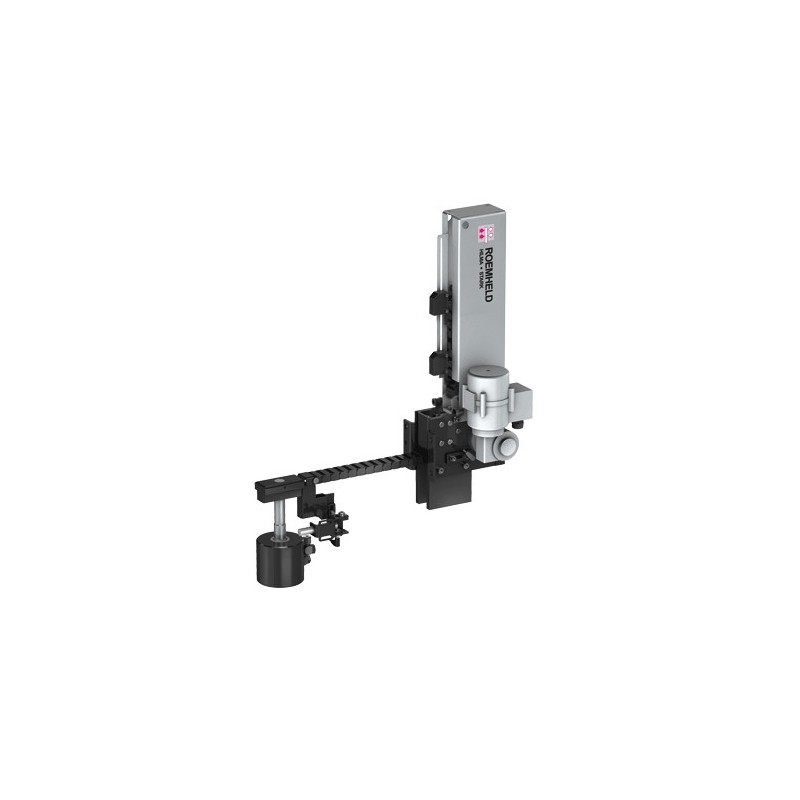

HILMA WZ 3.2280 Rapid clamping systems used for the automatic clamping of dies of varying sizes on the press ram
- 8 different clamping elements
- 4 different T-slots
- 3 different adjustment tracks
Flexline Rapid Clamping Systems - HILMA WZ 3.2280
Advantages:
- 8 different clamping elements
- 4 different T-slots
- 3 different adjustment tracks
- Drive motor and “die position” monitor attachable on left or right
- Easy to service, easily exchangeable modular assemblies ensure high availability of parts
- Technical arrangement and finished drawing in just a few minutes
- Highly flexible, low-maintenance hydraulic lines with high burst pressure
Application:
Rapid clamping systems are used for the automatic clamping of dies of varying sizes on the press ram.
Description:
The electro-mechanical drive chain moves the clamping element attached to the rapid clamping system automatically from the parking position to the clamping position at the clamping edge and then back to the parking position. The T-slot of the machine serves as the guide for the drive chain and clamping element. The drive chain also serves as the energy chain for accommodating the hydraulic and electric lines of the clamping element.
Versions
Flexline rapid clamping systems can be supplied in the following variants:
- Clamping elements Hollow piston cylinders, clamping cylinders with locking mechanism, spring clamping cylinders or sliding clamps
- T-slots 28, 32 or 36 mm or 1 1/16"
- Adjustment tracks (tracks of the clamping element) 660, 820 or 1100 mm
- Drive motor electrical or pneumatic
- Optional position monitoring (adjustable) micro switch for “end position” and “intermediate position”
- Position monitoring of the “die position” attached on the left or right hand side
- Chain case in galvanised design or painted individually at customer’s request
- Option: Design with UL-compliant components
- Various Harting connectors to choose from for motor current and monitoring signals
- Option: Socket housing for assembly to machine
