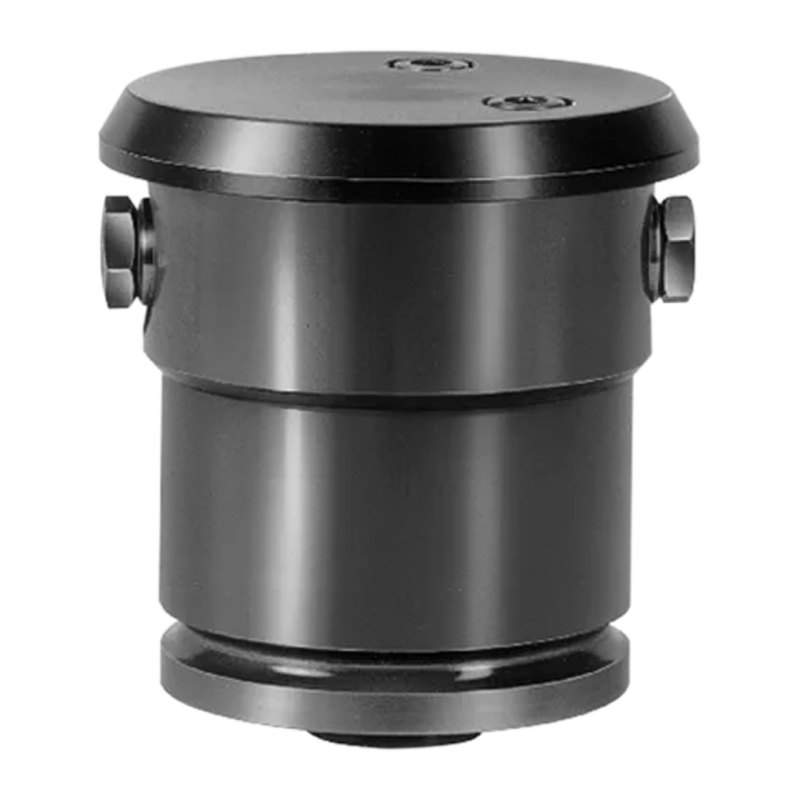

2 and 3 Point Concentric Positioning and Clamping Elements

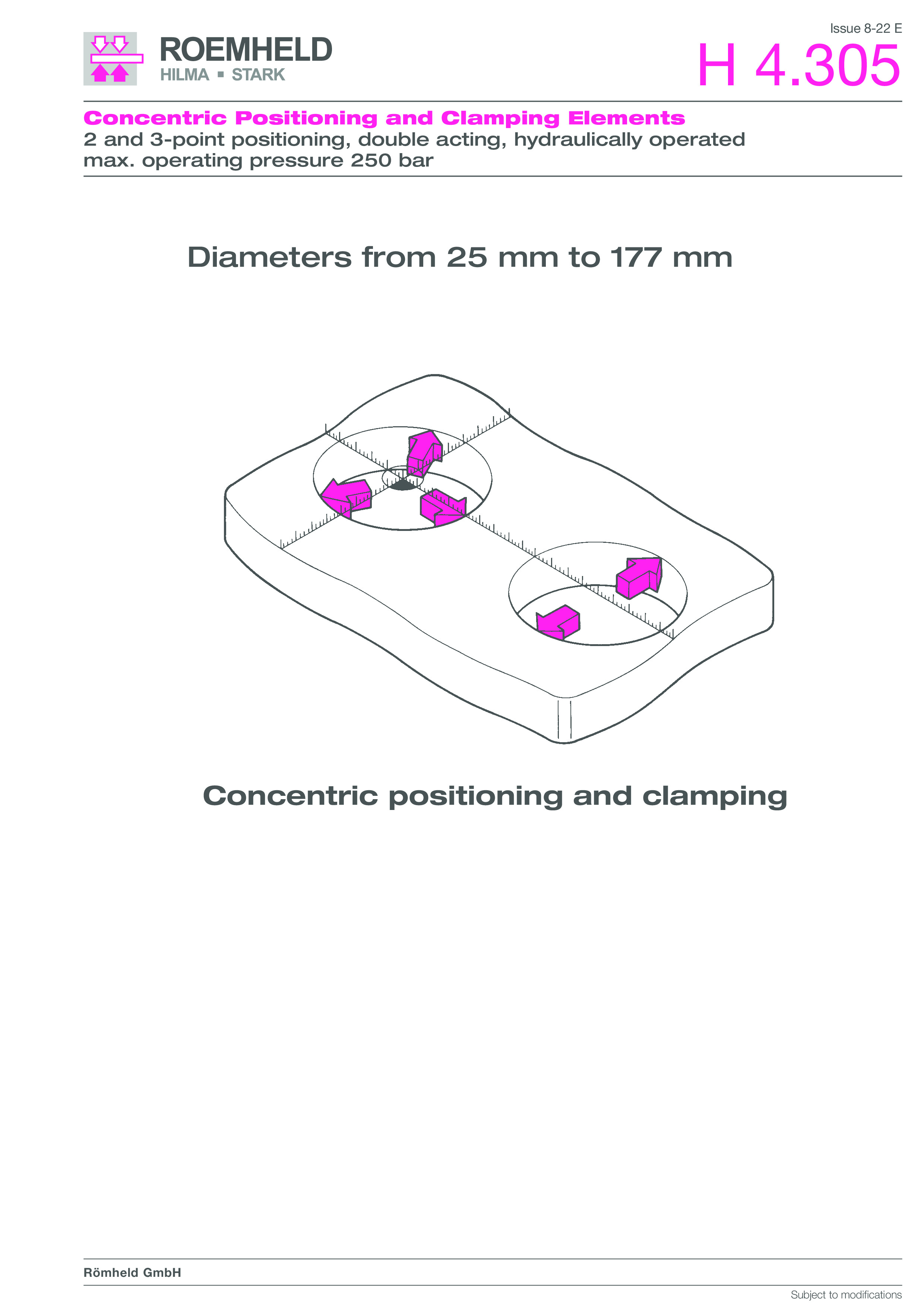

ROEMHELD H4.305 Concentric Positioning and Clamping Elements 2 and 3-point positioning, double acting, hydraulically operated
- Maximum operating pressure 250 bar
- Clamping Ø: 25 - 177 mm
- Bolt Ø: 12 - 22 mm
- Clamping force at 100 bar: 4 - 17 kN
- Clamping force at 250 bar: 10 - 44 kN
- Clamping repeatability, absolute: 0.02 mm
Workpieces with cast or machined bores, reliefs or break-outs, can be easily loaded to the fixture with the concentric positioning and clamping elements and can be concentrically clamped or positioned for machining. Overstressed conditions can be avoided and clamping can be completely solved by an ingenious combination of 2 and 3-point elements.
2 and 3 Point Concentric Positioning and Clamping Elements - ROEMHELD H4.305
- Clamping Ø: 25 - 177 mm
- Bolt Ø: 12 - 22 mm
- Clamping force at 100 bar: 4 - 17 kN
- Clamping force at 250 bar: 10 - 44 kN
- Clamping repeatability, absolute: 0.02 mm
- 2 and 3-point positioning
- Double acting
- Hydraulically operated
- Max. operating pressure 250 bar
Description:
Workpieces with cast or machined bores, reliefs or break-outs, can be easily loaded to the fixture with the concentric positioning and clamping elements and can be concentrically clamped or positioned for machining. Overstressed conditions can be avoided and clamping can be completely solved by an ingenious combination of 2 and 3-point elements. Various mounting and connecting possibilities extend the use for multiple applications. Different sizes and correspondingly adapted contact bolts allow exact adaptation to the required clamping diameter.
Important note: 2 and 3-point concentric positioning and clamping elements are not suitable for use on turning machines.
