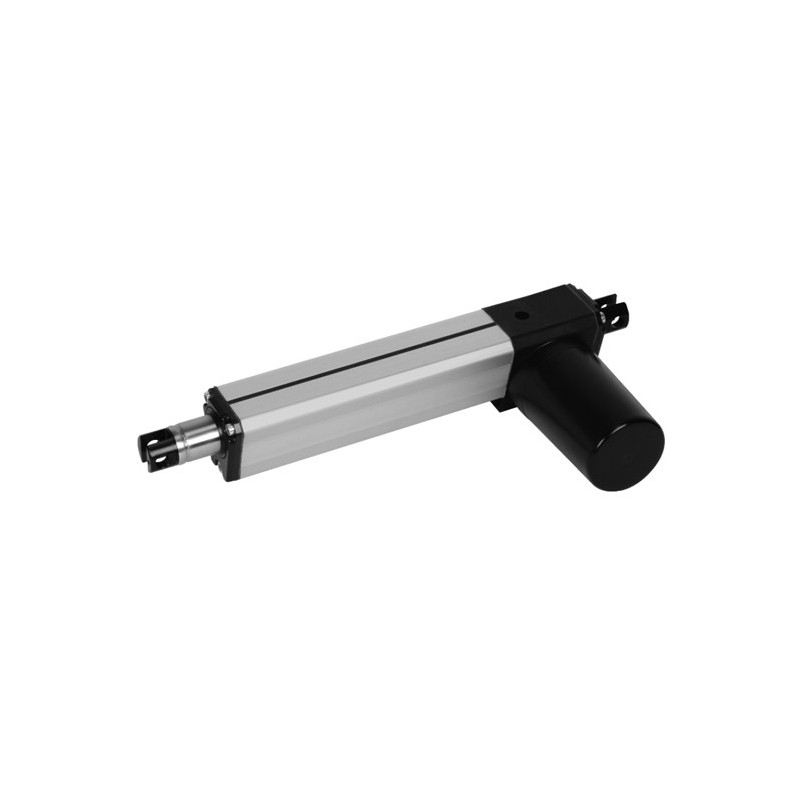

Linear Actuators RA 600 - ROEMHELD L1.101

Linear Actuators RA 600 - ROEMHELD L1.101

• Max. push force: 1.000 - 6.000 N
• Max. pull force 80% of the push force
• Stroke: 100 up to 600 mm
• Max. duty cycle: 15%
• Code class: IP66 or IP69K

Advantages:

• High operating safety by self-locking spindle drive
• High static retention force
• Sturdy design by high-quality drive components
• Resistant against corrosion and disinfectants
• Press and splash water protection as per code class IP69K (optional)
• Reliable even with rough environmental conditions
• Compact design
• Mounting position: any
• Maintenance free
• Industrial design

Application:

Linear actuators RA 600 are used for electrically-operated adjustments and as actuating elements in applications with control-oriented demands in short-time service. The actuators are suited for manifold industrial applications, indoors and outdoors. Linear actuators RA 600 consist of a 24 V DC direct current drive, whose drive energy is transferred over a worm gear and a spindle lifting gear to the pushing rod. The self-locking spindle lifting gear stops the actuator in case of power failure and maintains it safely in the reached position.

Principal use:

• Machine tool building
• Food machines
• Building services engineering
• Conveyor and dosing technology
• Chemical industry
• Solar technology
• Renewable energy generation

Description:

Features of the sturdy design are the generous dimensioning of the actuator and the solid design of the housing. Alternative to code class IP66 also a press and splash water protection as per code class IP69K is available as an option. Linear actuators RA 600 are protected against corrosion and function without any troubles also in rough operating and environmental conditions - Since they are maintenance-free, this is guaranteed permanently.

The version with limit switches is equipped with 2 sensors, that prevent an unintentional movement to the mechanical stroke ends and thus the overload of the mechanics. The version with stroke measuring system allows the realisation of control-oriented applications and the operation of several linear actuators in synchronism. The stroke ends are freely definable by means of the digital signal.
