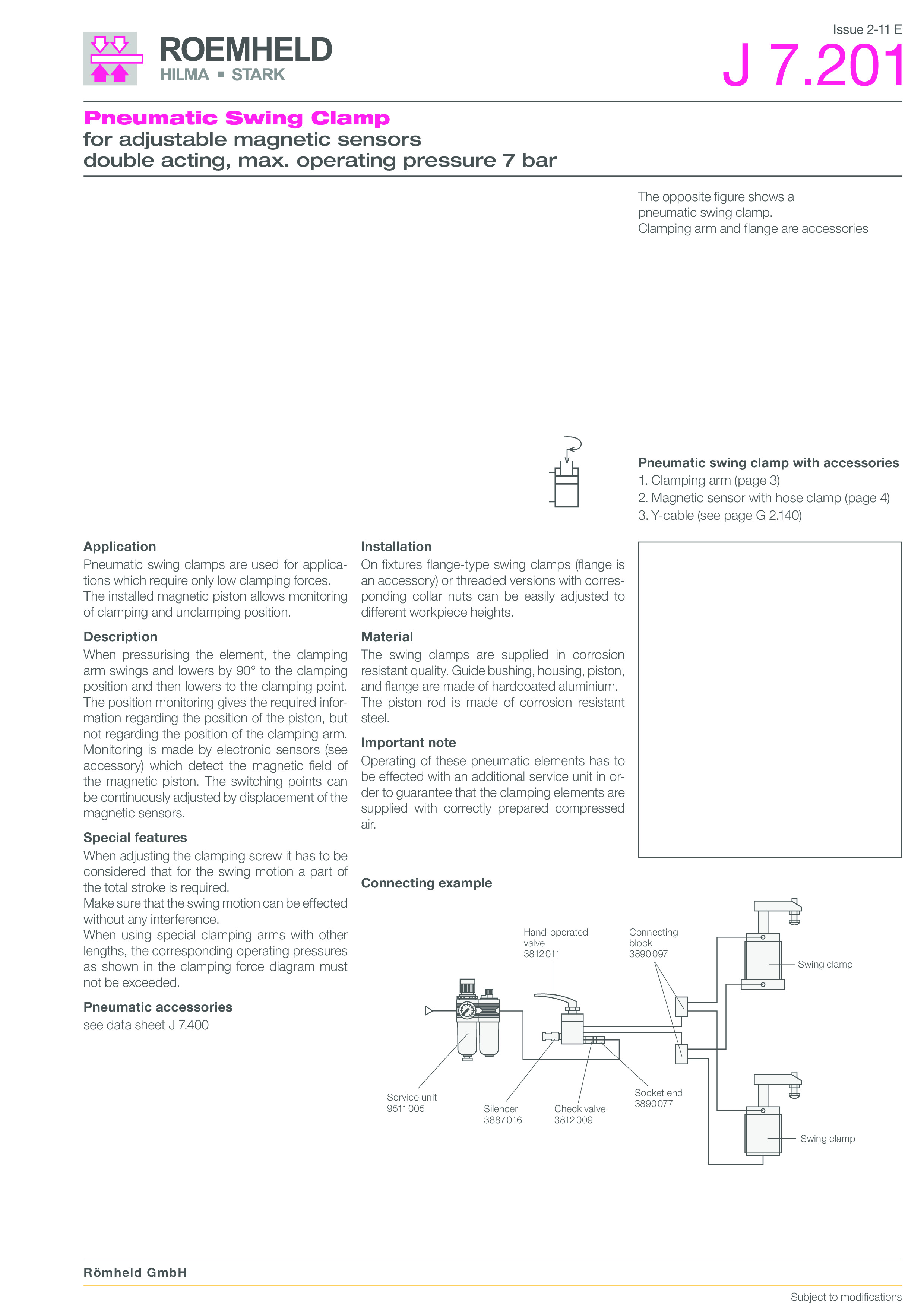

Pneumatic Swing Clamp - ROEMHELD J7.201

Pneumatic Swing Clamps - ROEMHELD J7.201

• Max. clamping force: 140 - 1400 N
• Rod diameter: 8 - 25 mm
• Piston diameter: 20 - 63 mm
• Clamping stroke: 7 - 18 mm
• External thread: M30 - M80

Application:

Pneumatic swing clamps are used for applications which require only low clamping forces. The installed magnetic piston allows monitoring of clamping and unclamping position.

Description:

When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm. Monitoring is made by electronic sensors (see accessory) which detect the magnetic field of the magnetic piston. The switching points can be continuously adjusted by displacement of the magnetic sensors.

Special features:

When adjusting the clamping screw it has to be considered that for the swing motion a part of the total stroke is required. Make sure that the swing motion can be effected without any interference. When using special clamping arms with other lengths, the corresponding operating pressures as shown in the clamping force diagram must not be exceeded.
