Pneumatic Swing Clamp - ROEMHELD J7.202
ROEMHELD J7.202 Block version pneumatic swing clamp used in applications that require only low clamping forces
- Maximum clamping force: 140 - 1400 N
- Rod diameter: 8 - 25 mm
- Piston diameter: 20 - 63 mm
- Clamping stroke: 7 - 18 mm
When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm.
Pneumatic Swing Clamp - ROEMHELD J7.202
- Max. clamping force: 140 - 1400 N
- Rod diameter: 8 - 25 mm
- Piston diameter: 20 - 63 mm
- Clamping stroke: 7 - 18 mm

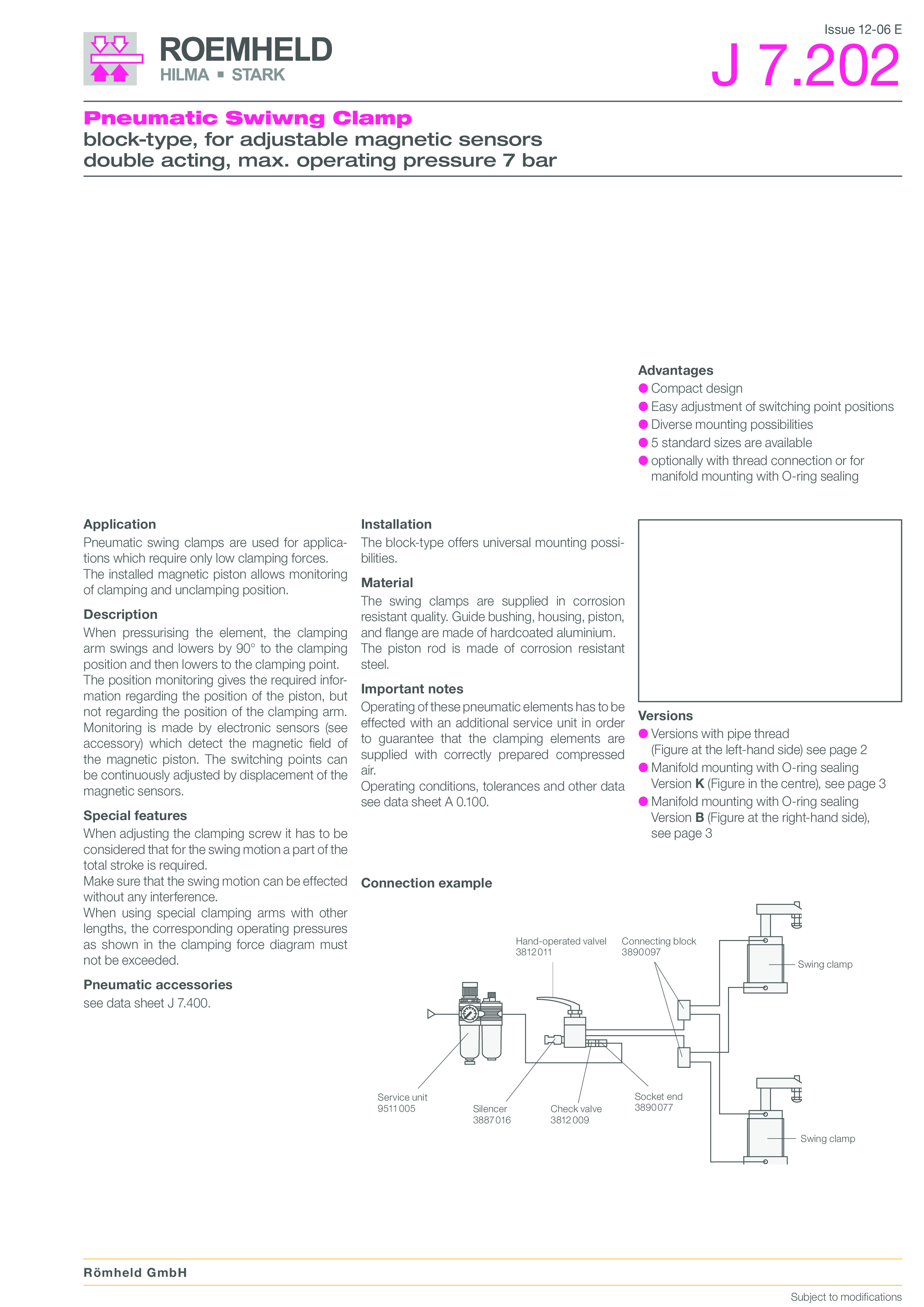

Application:
Pneumatic swing clamps are used for applications which require only low clamping forces. The installed magnetic piston allows monitoring of clamping and unclamping position.
Description:
When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm. Monitoring is made by electronic sensors (see accessory) which detect the magnetic field of the magnetic piston. The switching points can be continuously adjusted by displacement of the magnetic sensors.
Advantages:
- Block type
- for Adjustable Magnetic Sensors
- Max. operating pressure 7 bar
- Double acting, compact design available in 5 sizes
- Easy adjustment of switching point position
- Diverse mounting possibilities
- Optionally with thread connection or for manifold mounting with O-ring sealing
