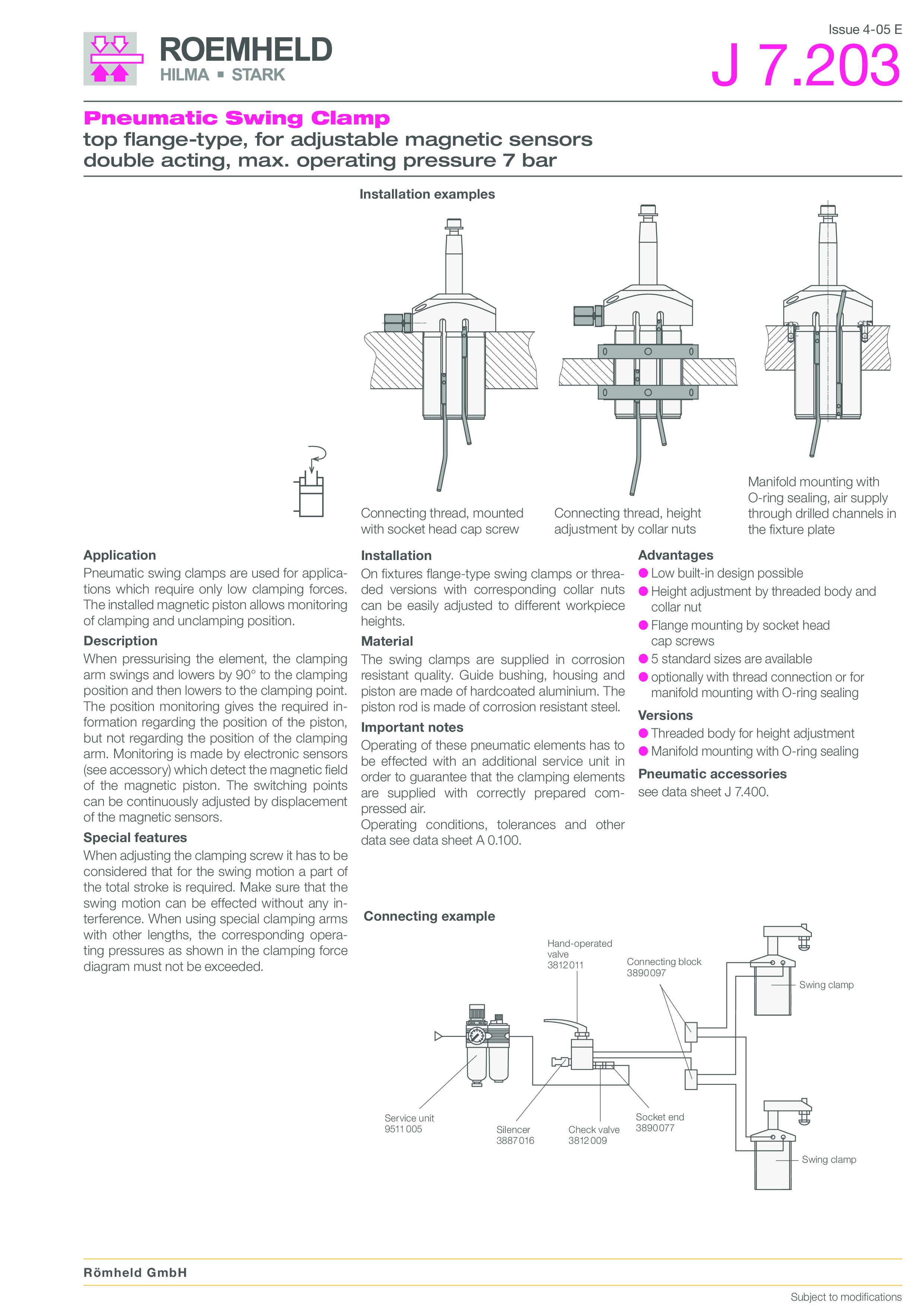

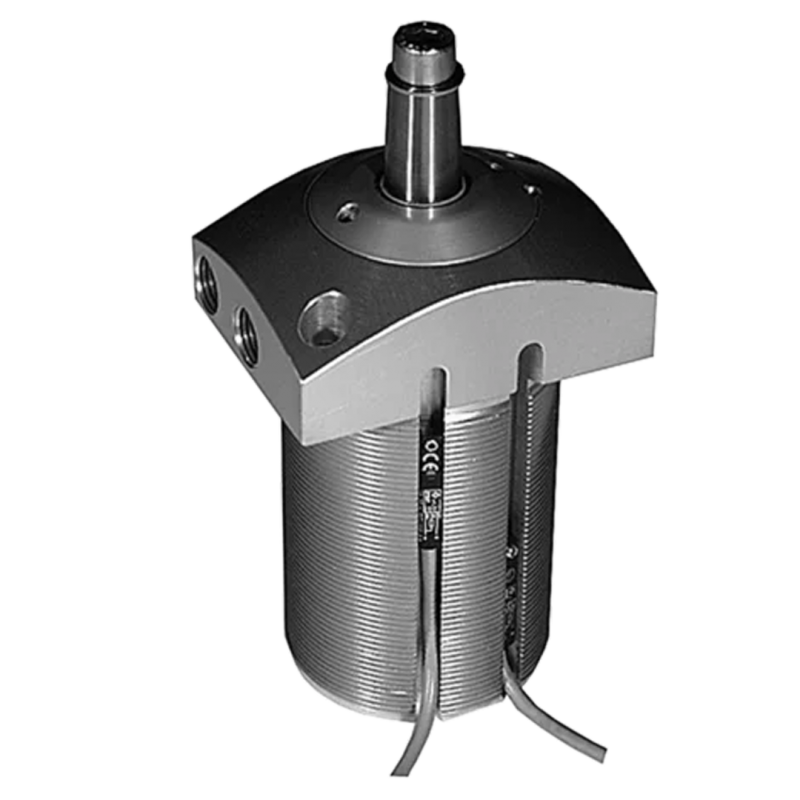

Pneumatic Swing Clamp - ROEMHELD J7.203
ROEMHELD J7.203 Top flange type pneumatic swing clamp used in applications which only require low clamping forces
- Maximum clamping force: 140 - 1400 N
- Rod diameter: 8 - 25 mm
- Piston diameter: 20 - 63 mm
- Clamping stroke: 7 - 18 mm
- External thread: M40 - M85
When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm.
Pneumatic Swing Clamp - ROEMHELD J7.203
- Max. clamping force: 140 - 1400 N
- Rod diameter: 8 - 25 mm
- Piston diameter: 20 - 63 mm
- Clamping stroke: 7 - 18 mm
- External thread: M40 - M85
Application:
Pneumatic swing clamps are used for applications which require only low clamping forces. The installed magnetic piston allows monitoring of clamping and unclamping position.
Description:
When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm. Monitoring is made by electronic sensors (see accessory) which detect the magnetic field of the magnetic piston. The switching points can be continuously adjusted by displacement of the magnetic sensors.
Advantages:
- Top flange type
- for Adjustable Magnetic Sensors
- Double Acting
- Max. Operating Pressure: 7 bar
- Low built-in design possible
- Height adjustment by threaded body and collar nut
- Flange mounting by socket head cap screws
- 5 standard sizes are available
- Optionally with thread connection or for manifold mounting with O-ring sealing
