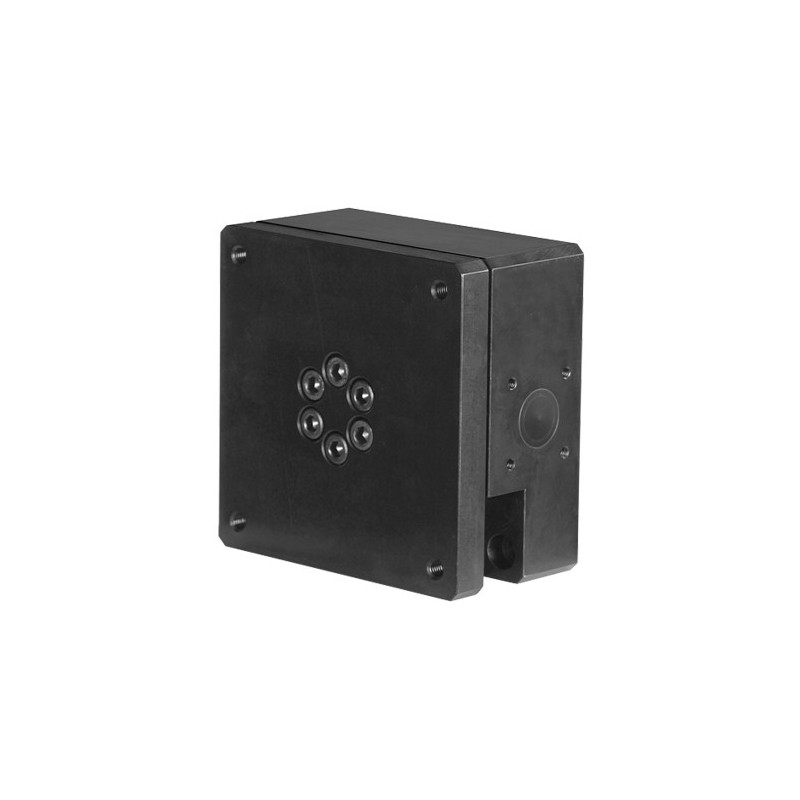

Rotating Module – Horizontal Axis DMH 200
ROEMHELD M 1.101
- Max. load: 2000 N
- Max. torque, axial/radial: 800 Nm
- Rotates in both directions - Angle of rotation: 360°
- Safe indexing, rotating and indexing possible by one-hand operation
Rotating Module Horizontal Axis DMH 200 - ROEMHELD M 1.101
- Max. load: 2000 N
- Max. torque, axial/radial: 800 Nm
- Rotates in both directions - Angle of rotation: 360°
- Safe indexing, rotating and indexing possible by one-hand operation
Advantages:
- Rotating in both directions
- Safe indexing
- Rotating and indexing possible by one-hand operation
- Compact device
- Sturdy design for industrial assembly
- Allows ergonomic working
- Safe and quick handling in assembly processes
- 4 function variants
- Easily combinable with other modulog modules
Application:
Rotating module for universal use in assembly and handling processes in the industry.
Principal use:
- Gear assembly
- Motor assembly
- Pump construction
- Turning operations during product transfer
Description:
The rotating module - horizontal axis DMH is a double supported rotation axis that can compensate high axial and radial forces. The angle of rotation in both directions is 360°. Due to special bearings it is insensitive to shocks and thrusts. The design of the rotating module allows its integration in applications with light as well as with heavy loads. When using the rotating module in assembly processes, component parts can be rotated rationally, quickly and safely and can be assembled ergonomically from all sides. The rotating module is equipped with an optional indexing.
