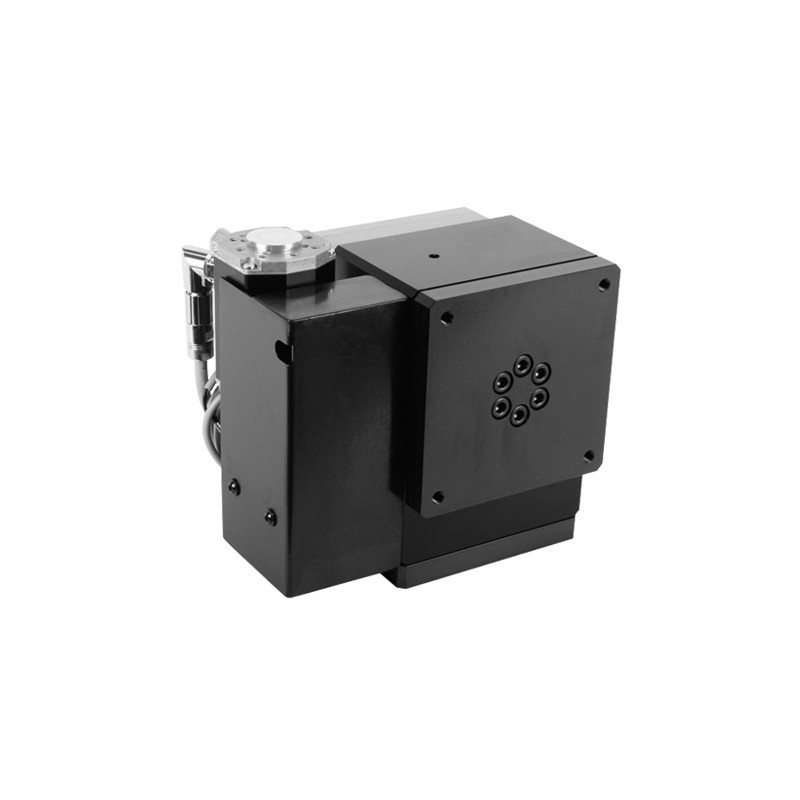

Rotating Module DMHe 200 / DMVe 600 Electrical Operation

ROEMHELD M1.201 Rotating Modules used in assembly and handling processes to transform electrical energy into a rotating movement.
  • Max. tilting: 800 Nm
  • Max. torque: 120 Nm
  • Holding torque: 350 Nm
  • Angle of rotation: 360°
  • Index: 90° standard
  • Supply voltage: 24 - 30 VDC

Description
Downloads

Rotating Module DMHe 200 / DMVe 600 Electrical Operation - ROEMHELD M 1.101

  • Max. tilting moment: 800 Nm
  • Max. torque: 120 Nm
Rotating module – horizontal axis: DMHe 200
  • Max. load: 2.000 N
Rotating module – vertical: DMVe 600
  • Max. load: 6.000 N
  • Holding torque: 350 Nm
  • Angle of rotation: 360°
  • Index: 90° standard (optionally 45° / 60° / 180°)
  • Supply voltage: 24 - 30 VDC

Advantages:

  • Versions for horizontal or vertical axis of rotation
  • Rotating in both directions
  • Auto stop
  • Low-backlash gear
  • Self-locking in any position
  • Compact design
  • Sturdy design
  • Convertible
  • Ergonomic working
  • Safe and quick handling in assembly processes
  • Long service life
  • Checked in compliance with DIN EN 1570 with quadruple static overload

Principal use:

  • Assembly of automotive parts
  • Motor assembly
  • Gear assembly
  • Pump construction

Operation:

The module is operated with touch control by means of an optionally available hand panel or foot switch with two push-buttons. It can safely stop in every angular position. An automatic stop is preset at all 90° positions. The zero position of the automatic stop can be preset to any position by pushing both push-buttons.

Description:

Rotating modules are used in assembly and handling processes to transform electrical energy into a rotating movement. When using the rotating module, component parts can be rotated rationally, quickly and safely and can be assembled ergonomically from all sides. The strongly reduced worm gear allows high holding torques in standstill. The double-bearing driven shaft compensates high axial and radial forces. The rotating module is designed for a long service life. The electronically commutated DC motor is virtually wear-free. The mechanical components and sealing elements are designed for 1,000,000 indexing cycles within the indicated load limits. The rotating modules – horizontal axis and vertical axis are nearly identical in construction, thus the axis alignment can be retrofitted for different applications.
