Minibooster HC2DW
HC2DW: 8 different intensification factors
- PIN: Inlet pressure 20-207 bar
- PH: 800 bar maximum (outlet pressure)
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PReturn) I (intensification)
- Mounting: Inline tube
| Part Number | Material Number | Intensification Factor | Dump Valve | Connection | Tested | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| HC2DW - 2.2 - A - 1EE | 2.2 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 2.2 - A - 1SPP | 2.2 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 2.2 - A - 1PP | 2.2 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 2.2 - A - 1SHH | 2.2 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 2.2 - A - 1SEE | 2.2 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 2.2 - A - 1HH | 2.2 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 2.6 - A - 1HH | 2.6 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 2.6 - A - 1EE | 2.6 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 2.6 - A - 1SPP | 2.6 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 2.6 - A - 1PP | 2.6 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 2.6 - A - 1SHH | 2.6 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 2.6 - A - 1SEE | 2.6 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 3.2 - A - 1SHH | 3.2 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 3.2 - A - 1SEE | 3.2 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 3.2 - A - 1HH | 3.2 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 3.2 - A - 1EE | 3.2 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 3.2 - A - 1SPP | 3.2 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 3.2 - A - 1PP | 3.2 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 4.0 - A - 1PP | 4.0 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 4.0 - A - 1SHH | 4.0 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 4.0 - A - 1SEE | 4.0 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 4.0 - A - 1HH | 4.0 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 4.0 - A - 1EE | 4.0 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 4.0 - A - 1SPP | 4.0 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 5.0 - A - 1PP | 5.0 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 5.0 - A - 1SHH | 5.0 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 5.0 - A - 1SEE | 5.0 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 5.0 - A - 1HH | 5.0 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 5.0 - A - 1EE | 5.0 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 5.0 - A - 1SPP | 5.0 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 6.6 - A - 1EE | 6.6 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 6.6 - A - 1SPP | 6.6 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 6.6 - A - 1PP | 6.6 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 6.6 - A - 1SHH | 6.6 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 6.6 - A - 1SEE | 6.6 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 6.6 - A - 1HH | 6.6 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 9.0 - A - 1HH | 9.0 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 9.0 - A - 1EE | 9.0 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 9.0 - A - 1SPP | 9.0 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 9.0 - A - 1PP | 9.0 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 9.0 - A - 1SHH | 9.0 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 9.0 - A - 1SEE | 9.0 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 13.0 - A - 1SEE | 13.0 | A | 1SEE | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 13.0 - A - 1HH | 13.0 | A | 1HH | Tested in Water | On Enquiry | ||
| HC2DW - 13.0 - A - 1EE | 13.0 | A | 1EE | Tested in Water | On Enquiry | ||
| HC2DW - 13.0 - A - 1SPP | 13.0 | A | 1SPP | Tested in Hydraulic Oil | On Enquiry | ||
| HC2DW - 13.0 - A - 1PP | 13.0 | A | 1PP | Tested in Water | On Enquiry | ||
| HC2DW - 13.0 - A - 1SHH | 13.0 | A | 1SHH | Tested in Hydraulic Oil | On Enquiry |
Minibooster HC2DW
Accessories: Pilot-operated dump valve available
Material certificate 3.1 on request
A Model = Without Dump Valves
B Model = With Dump Valves
G Model = Direct Proportionally Controlled
Description:

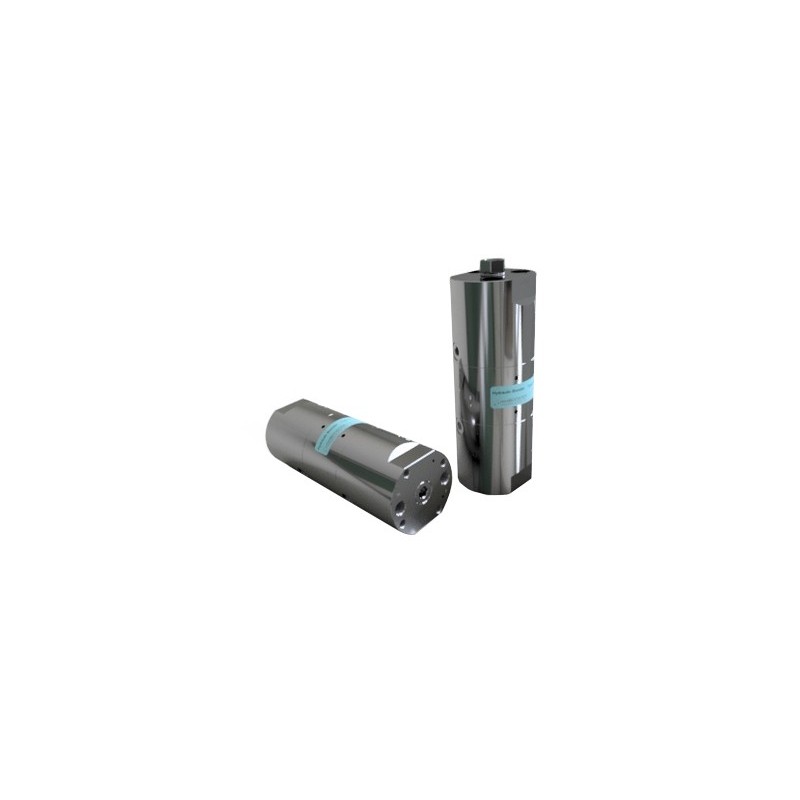

The HC2DW is a dual-acting stainless unit which is capable of delivering up to 7.8 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2DW is a compact unit weighing 8.0 kg.
General Functions:
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves 2x KV1, 2x KV2 and DV to the high-pressure side H. In this condition maximum flow trough the booster is achieved giving a fast-forward function.
When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump units OP1 and OP2 by turns. The unit will automatically stall when end pressure on high-pressure side H is reached. If a pressure drop on the high-pressure side due to consumption or leakage, the OP1 and OP2 units will automatically operate to maintain the end pressure. It is possible to change the high-pressure connection H to the opposite end of the booster.
Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
