Swing Clamp with Pendulum Eye or Fork Head Bottom Flange

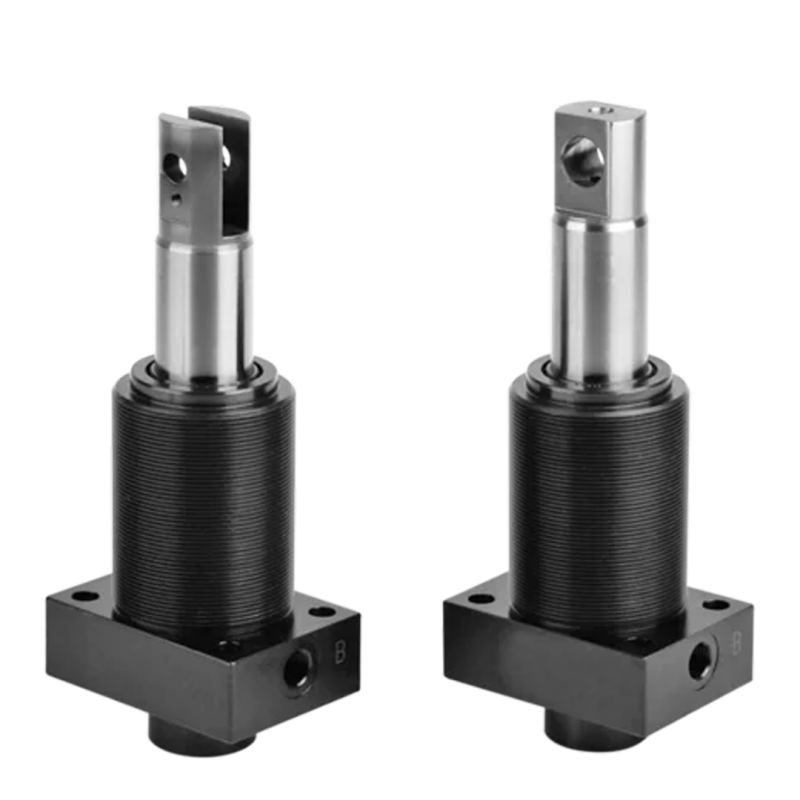

ROEMHELD B1.8812 Swing Clamps with Reinforced Swing Mechanism: bottom flange, position monitoring optional, pendulum eye/fork head
- Maximum operating pressure 500/160 bar
- Maximum clamping force: 1.4 - 11.2 kN
- Rod diameter: 20 - 32 mm
- Piston diameter: 25 - 40 mm
- Clamping stroke: 22 - 25 mm
- Maximum flow rate: 8 - 20 cm³/s
The hydraulic swing clamp is a double-acting pull-type cylinder where a part of the total stroke is used to swing the piston.
Description
Downloads
Swing Clamp with Pendulum Eye or Fork Head Bottom Flange - ROEMHELD B1.8812
- Max. operating pressure 500/160 bar
- Max. clamping force: 1.4 - 11.2 kN
- Rod diameter: 20 - 32 mm
- Piston diameter: 25 - 40 mm
- Clamping stroke: 22 - 25 mm
- Max. flow rate: 8 - 20 cm³/s
Advantages:
- Introduction of clamping force without side loads
- Compact design
- Double clamping arm facilitates multiple clamping of similar workpieces
- Pendulum eye for high clamping forces
- Fork head for simple clamping arms
- Alternatively pipe thread or drilled channels
- Reinforced swing mechanism
- FKM wiper standard
- Available with position monitoring
- Connecting possibilities:
- Pipe thread
- Drilled channels
Application:
Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. The version with pendulum eye or fork head allows simultaneous clamping of two workpieces with half clamping force.
Function:
The hydraulic swing clamp is a double-acting pull-type cylinder where a part of the total stroke is used to swing the piston.
