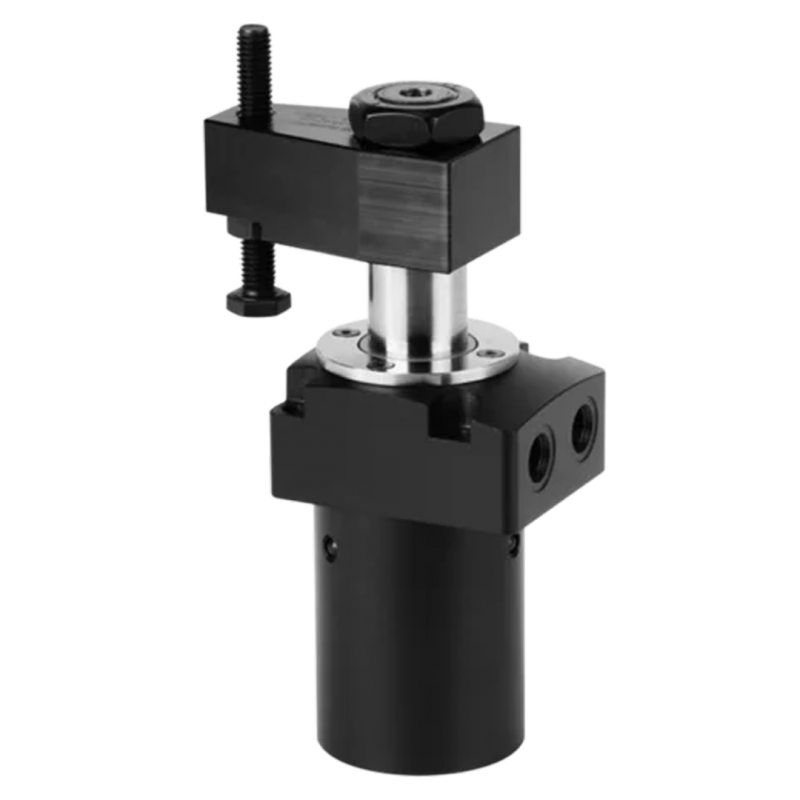

Swing Clamps with Sturdy Swing Mechanism 120 bar
ROEMHELD B1.8510 Swing Clamps with Sturdy Swing Mechanism: Top flange type, with optional position monitoring, double acting
- Maximum operating pressure 120 bar
- Maximum clamping force: 3.4 - 22.8 kN
- Rod diameter: 14 - 36 mm
- Piston diameter: 25 - 65 mm
- Clamping stroke: 8/10 mm
- Maximum flow rate: 13 - 167 cm³/s
The hydraulic swing clamp is a pull-type cylinder where a part of the total stroke is used to swing the piston. Due to the sturdy swing mechanism the angle position of the clamping arm remains the same after a slight collision with the workpiece during loading and unloading or during clamping. The angle position of the clamping arm is fixed with a dowel pin.
Swing Clamps with Sturdy Swing Mechanism - ROEMHELD B1.8510
- Max. operating pressure 120 bar
- Max. clamping force: 3.4 - 22.8 kN
- Rod diameter: 14 - 36 mm
- Piston diameter: 25 - 65 mm
- Clamping stroke: 8/10 mm
- Max. flow rate: 13 - 167 cm³/s
Advantages:
- 4 sizes available
- Compact design partially recessible
- Very high clamping force already at 120 bar
- Sturdy swing mechanism
- Very short clamping time
- Insensitive against high flow rates
- Indexing of the clamping arm in a specified position is possible
- Special swing angle easily realisable
- FKM wiper standard
- Metallic wiper optional
- Throttle valves available as accessory
- Position monitoring available as accessory
- Mounting position: any
Application:
Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. This series obtains very high clamping forces already at 120 bar and can directly be connected to the low-pressure hydraulics of the machine tool. An additional power unit for power workholding is no longer necessary. With the sturdy swing mechanism and the optional position monitoring these swing clamps are particularly suitable for:
• Automatic manufacturing systems with very short cycle times
• Clamping fixtures with workpiece loading by handling systems
• Transfer lines
• Test systems for motors, gears and axes
• Assembly lines
• Special machine tools
Description:
The hydraulic swing clamp is a pull-type cylinder where a part of the total stroke is used to swing the piston. Due to the sturdy swing mechanism the angle position of the clamping arm remains the same after a slight collision with the workpiece during loading and unloading or during clamping. The angle position of the clamping arm is fixed with a dowel pin. The FKM wiper at the piston rod can be protected against coarse and hot swarf by an optionally available metallic wiper. The version with extended switch rod is provided for mounting of pneumatic or electrical position monitorings (accessory).
