Pivot and Pull Clamps

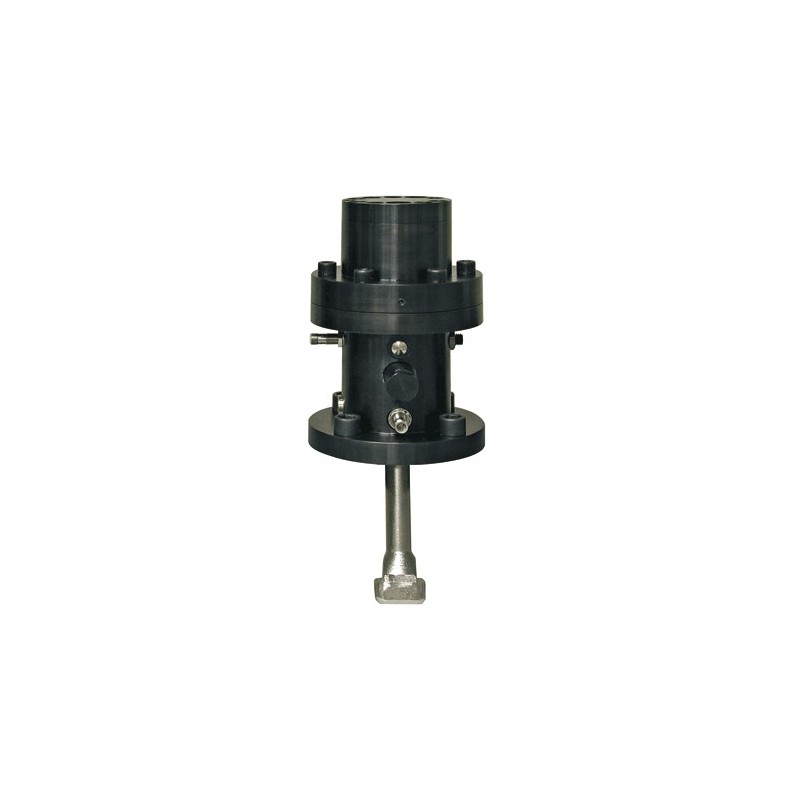

Pivot and Pull Clamps - HILMA WZ 2.2185

• Max. clamping force: 104 - 160 kN
• Clamping stroke: 10 mm
• Tilting angle: 15°
• Max. flow rate 16 cm³/s

Special features:

• 10 mm clamping stroke, therefore high adaptability to varying heights of clamping edges
• High functional reliability ensured by position monitoring and an automatic cycle
• The tie rod can be pivoted, therefore no collision edges when inserting the die
• Optimum utilisation of the ram surface
• Easy and rapid installation
• Very suitable for retrofitting

Applications:

For automatic clamping of dies on press rams

Function:

A control mechanism translates the stroke of the doubleacting piston into a tilting and lifting movement of the tie rod. For releasing the die, the tie rod pivots by 15°. The clamping force is transmitted to the clamping point in the axial direction of the tie rod. The clamping and unclamping positions are monitored by inductive proximity switches.
Max. temperature: 85°C.
Higher temperatures upon request.
