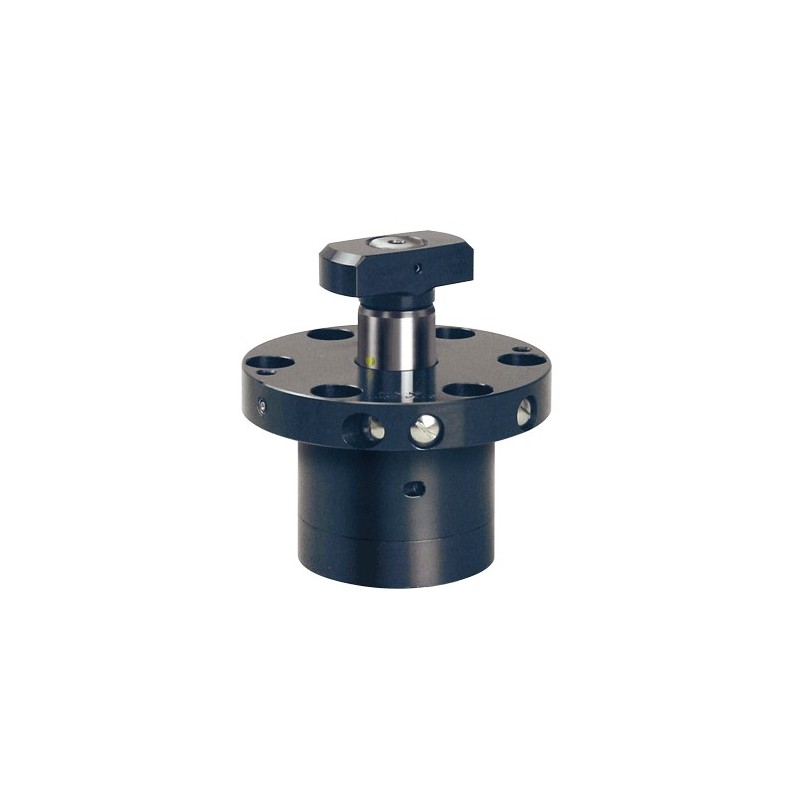

Hilma Swing Clamping Elements WZ 4.2170

Swing Clamping Elements

HILMA WZ 4.2170 Swing Clamping Elements, this swivel and pull clamp is available in sizes 60, 104, 164 kN or 216 kN at 400 bar operating pressure., with flanged or pipe connection.

  • Max. clamping force: 60 - 216 kN
  • Piston diameter: 52 - 88 mm
  • Clamping stroke: 5 - 6 mm
  • Clamping edge: 18 - 28 mm
  • Swing angle: 90°
Print page

Description
Downloads
GB_04_2170

Swing Clamping Elements - HILMA WZ 4.2170

  • Max. clamping force: 60 - 216 kN
  • Piston diameter: 52 - 88 mm
  • Clamping stroke: 5 - 6 mm
  • Clamping edge: 18 - 28 mm
  • Swing angle: 90°

Special features:

  • Ideal power transmission
  • Compact design
  • Clamping force of between 60 and 164 kN
  • Position monitoring, emergency hand operation and overload protection combine to ensure high functional safety
  • Compensates for large clamping edge tolerances (± 1.5 mm)
  • Optimum use of ram surface
  • Die clamping in barely accessible positions

Applications:

  • Integrated in press rams
  • In machine tools and equipment
  • When the available space is limited
  • When temperatures may reach 70° C

Design:

Double-acting swing clamp with 90° swing angle. Unclamping and clamping are monitored by inductive proximity switches. The swing mechanism is protected by a springloaded overload protection and is equipped with emergency hand operation. The tie rod, piston and swing mechanism are hardened. The hydraulic system is protected by a wiper ring.
