Swing Sink Clamp

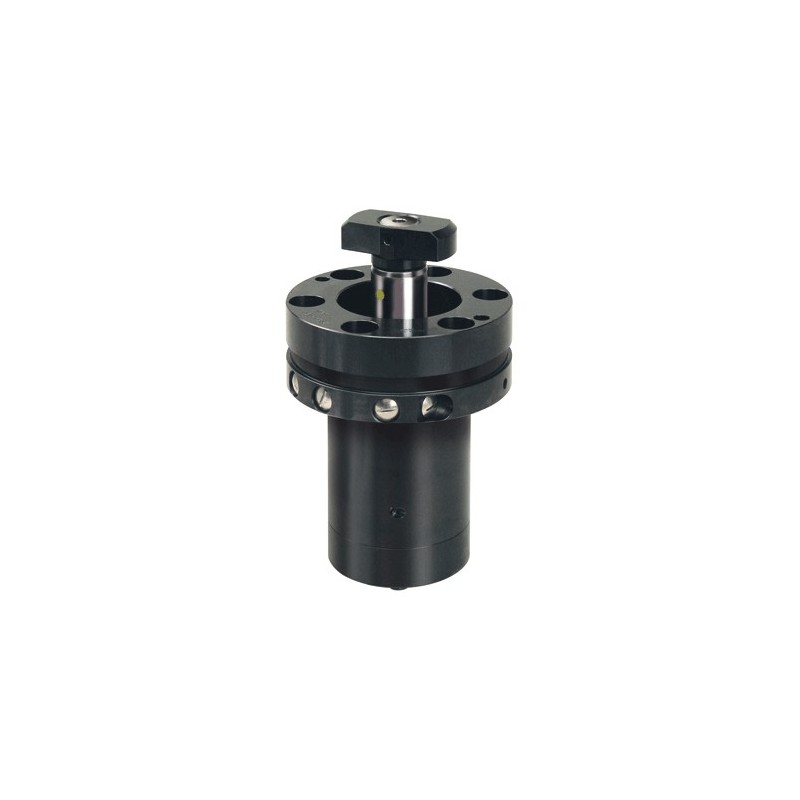

Swing Sink Clamp - HILMA WZ 4.2150

• Max. clamping force: 60 - 216 kN
• Piston diameter: 52 - 88 mm
• Clamping and lowering stroke: 42 - 65 mm
• Clamping edge: 18 - 50 mm
• Swing angle: 2 x 45°

Special features:

• Ideal power transmission
• Compact design
• Clamping force of between 60 and 164 kN
• position monitoring, emergency hand operation and overload protection combine to ensure high functional safety
• Compensates for large clamping edge tolerances (± 1.5 mm)
• No colliding edges, smooth die positioning
• Optimum use of ram and bed surfaces
• Die clamping in barely accessible positions

Applications:

• Integrated in press rams
• Integrated in press beds
• In machine tools and equipment
• When the available space is limited
• When temperatures may reach 70° C

Design:

Double-acting swing sink clamp with 90° swing angle. The piston is guided by a guide pin in such a manner that during part of the stroke a 45° rotation is carried out. Unclamping, change-over and clamping are monitored by inductive proximity switches. The swing mechanism is protected by a spring-loaded overload protection and equipped with emergency hand operation. The tie rod, piston and swing mechanism are hardened.
