Swing Sink Clamp for External Clamping

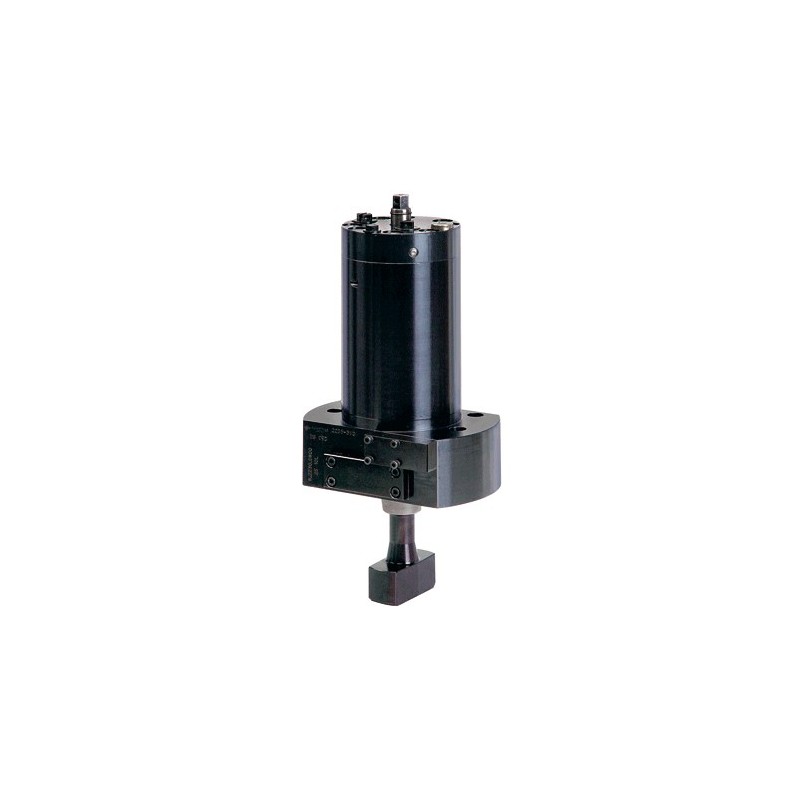

HILMA WZ 2.2230 Swing Sink Clamps for External Clamping, for fastening to a press bed and a press slide when the available space is limited
- Max. clamping force: 104 - 216 kN
- Clamping and lowering stroke: 105 - 112 mm
- Swing angle: 2 x 45°
- Max. clamping edge height: 68 mm
- Max. flow rate 50 - 120 cm³/s
Swing Sink Clamp for External Clamping - HILMA WZ 2.2230
- Max. clamping force: 104 - 216 kN
- Clamping and lowering stroke: 105 - 112 mm
- Swing angle: 2 x 45°
- Max. clamping edge height: 68 mm
- Max. flow rate 50 - 120 cm³/s
Advantages:
- Suitable for retro fitting
- Ideal force transmission
- Compact design
- High operating safety by position monitoring, manual emergency operation and overload protection
- Suitable for large clamping edge tolerances (± 1.5 mm)
- Optimum utilisation of bed and ram surfaces so there are no parts protruding when inserting the die
- Clamping at difficultly accessible points
- Tie rod lengths up to 2000 mm
Application:
Swing sink clamps can directly be mounted to the press bed or ram. They are particularly suitable where space is limited. Temperature range up to max. 70 °C
Description:
The piston is guided by a control bolt so that during the stroke movement a rotation of 45 ° is effected. For clamping, the tie rod is rotated by 90 ° from the unclamping position and pulled against the clamping surface through the existing clamping slots.
Monitoring of the unclamping, change-over and clamping positions by inductive proximity switches. The swing mechanism is protected by a spring-loaded overload protection and equipped with manual emergency operation.
